8 Body dimensions
Note
♦ Dimensions only given for checking purposes. Alignment
bracket set for Touran -VAS 6240- , alignment bracket set
supplement Golf 2004▸ -VAS 6240/2- and alignment bracket
set supplement Jetta 2005 ▸/Bora 2006 ▸ -VAS 6240/5- deci‐
sive.
♦ Bolts, screws, plugs, trim and attached components must be
removed before starting the measuring process.
♦ Use telescopic gauge -VAS 5159- or telescopic gauge -VAS
5160- to determine body dimensions.

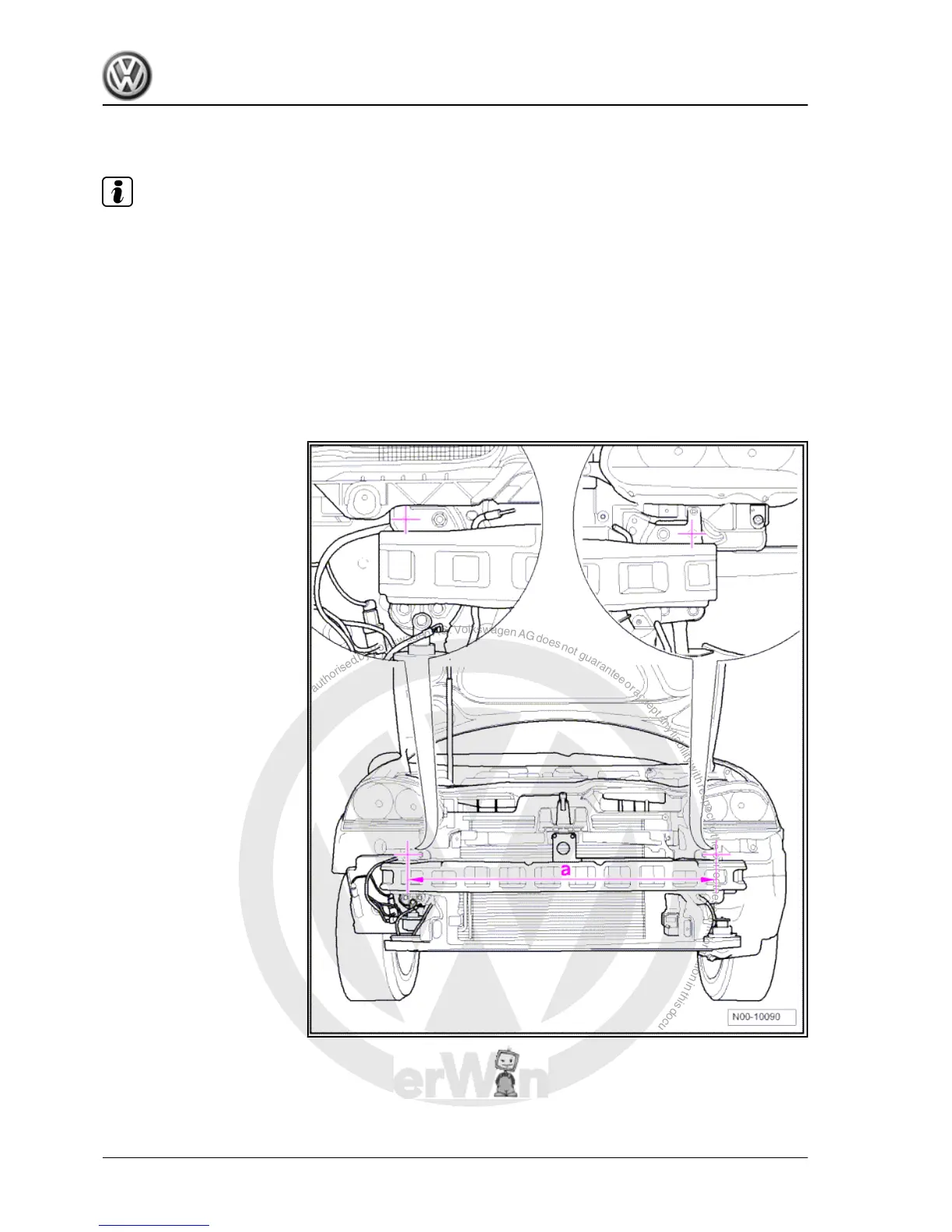

8.1 Body - front
Dimension -a- = 1,044 mm
Jetta 2005 ➤
Body Repairs - Edition 04.2009
