2.2 Installing
2.2.1 Preparing new part
Replacement part

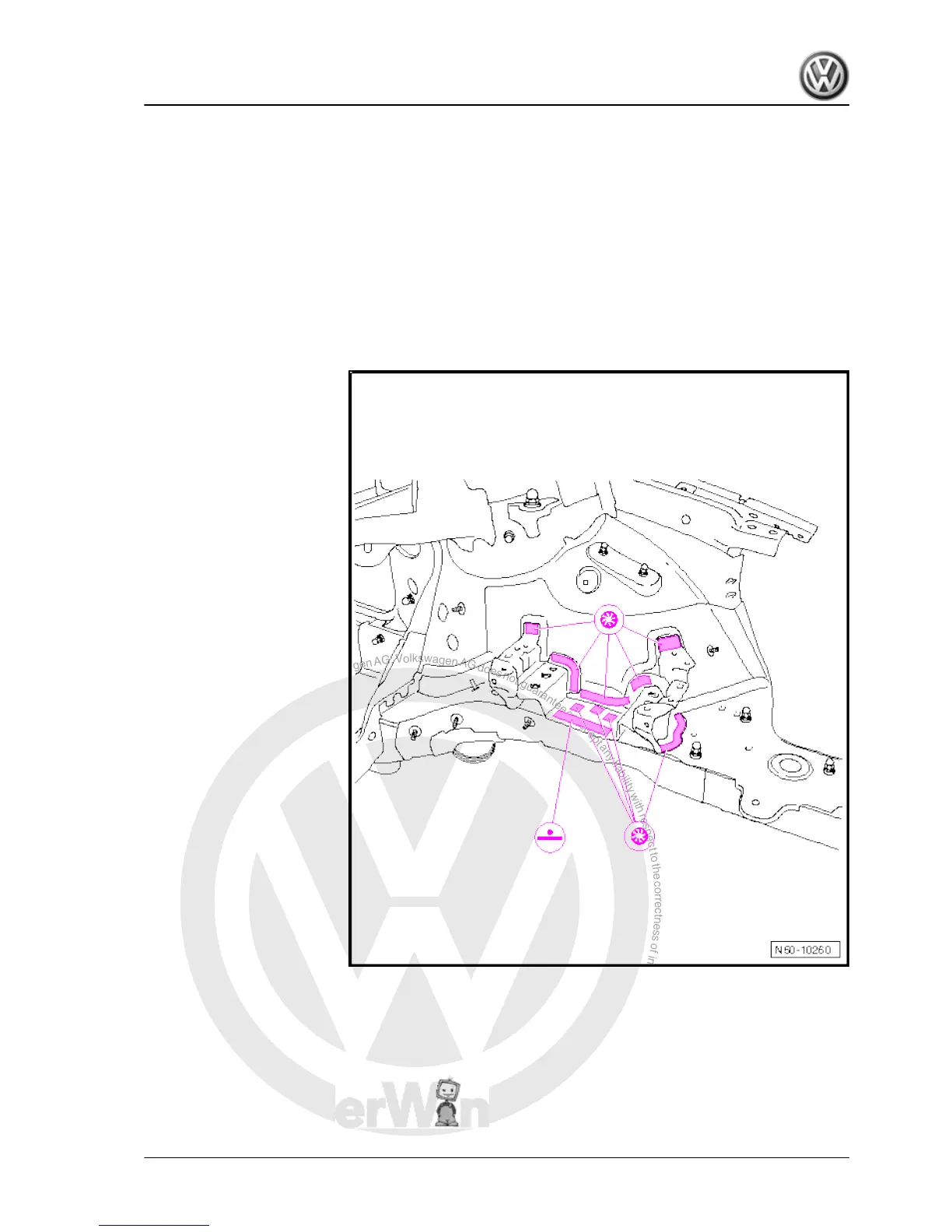

♦ Left engine console
– Drill 7 mm ∅ holes for SG plug weld seam.
2.2.2 Welding in
– Adapt new part to fit and secure in position with vehicle stand‐
ing on alignment bracket set .
– Weld in engine console, SG plug weld seam and RP spot weld
seam.
Jetta 2005 ➤
Body Repairs - Edition 04.2009
2. Renewing left console 57
