Note
To prevent excess contamination of the vehicle from the engine
oil, observe the following instructions.

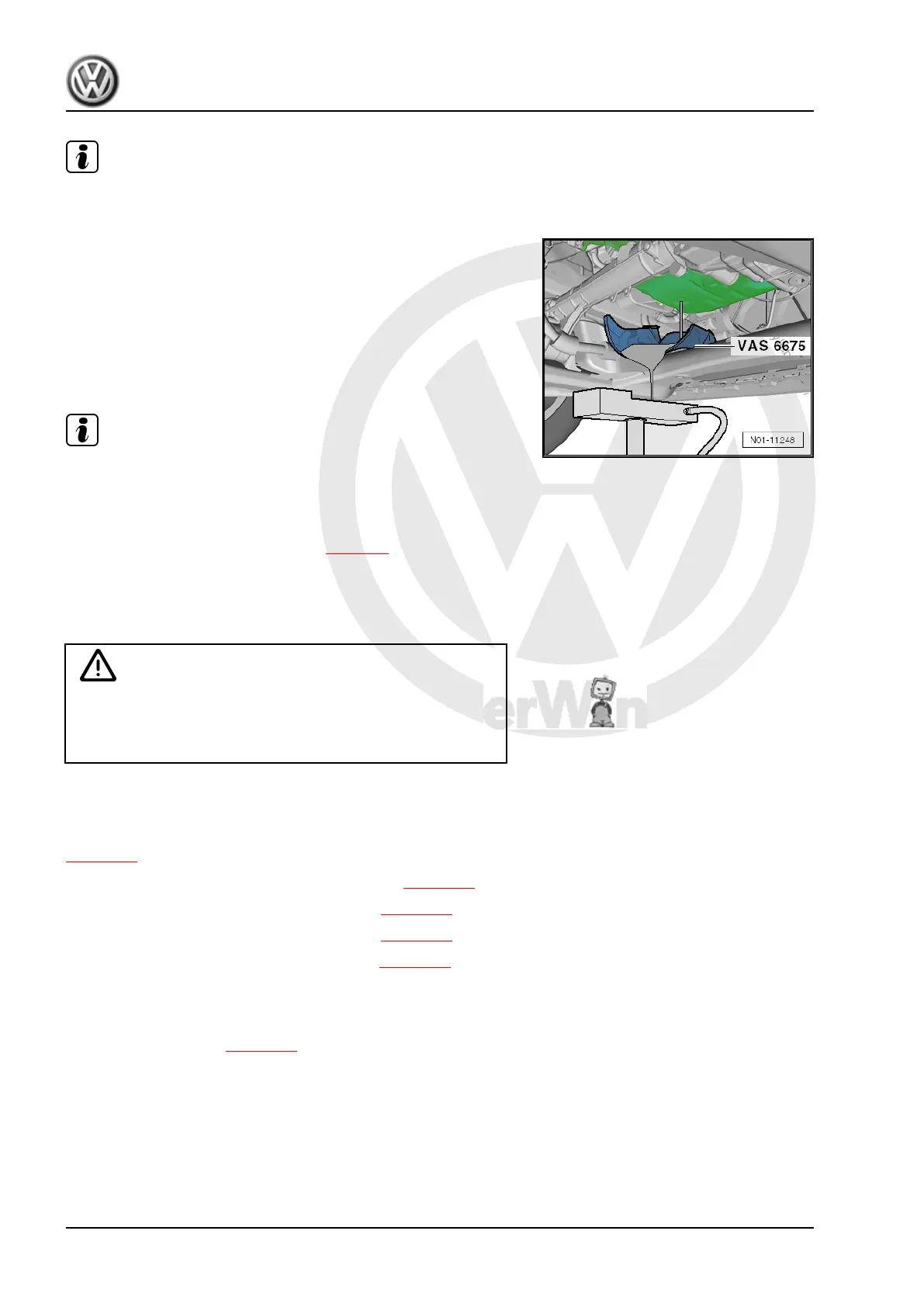

– Use flexible funnel -VAS 6675- to drain engine oil.
– Place funnel on subframe and assembly carrier.
– Remove oil drain plug.
– Clean M24 oil drain plug and fit new seal. The M14 oil drain
plug with integrated seal must always be renewed. ⇒ Elec‐
tronic parts catalogue ETKA
– Let engine oil drain.
Note
Observe disposal regulations!
– Screw in oil drain plug together with seal hand-tight and then
tighten to specified torque.
– Replenish engine oil, specification ⇒ page 5
Torque settings:
♦ Oil drain plug M14: 30 Nm
♦ Oil drain plug M24: 50 Nm
WARNING
♦ Torque specifications must not be exceeded.
♦ Excessive torque can cause leaks in the area of the oil
drain plug or even damage.
4.25.3 Renewing oil filter
Renewing oil filter in 6-cylinder TSI (hybrid) petrol engine.
⇒ page 65
Renewing oil filter in 6-cylinder FSI petrol engine ⇒ page 66
Renewing oil filter in 6-cylinder diesel engine. ⇒ page 67
Renewing oil filter in 8-cylinder diesel engine. ⇒ page 64
Renewing oil filter in 8-cylinder petrol engine. ⇒ page 68
4.25.4 Renewing oil filter in 8-cylinder diesel
engine
Remove engine cover. ⇒ page 70
Special tools and workshop equipment required
♦ Socket insert -SW 32- .
Touareg 2010 ➤
Maintenance - Edition 11.2011
64 4. Descriptions of work
