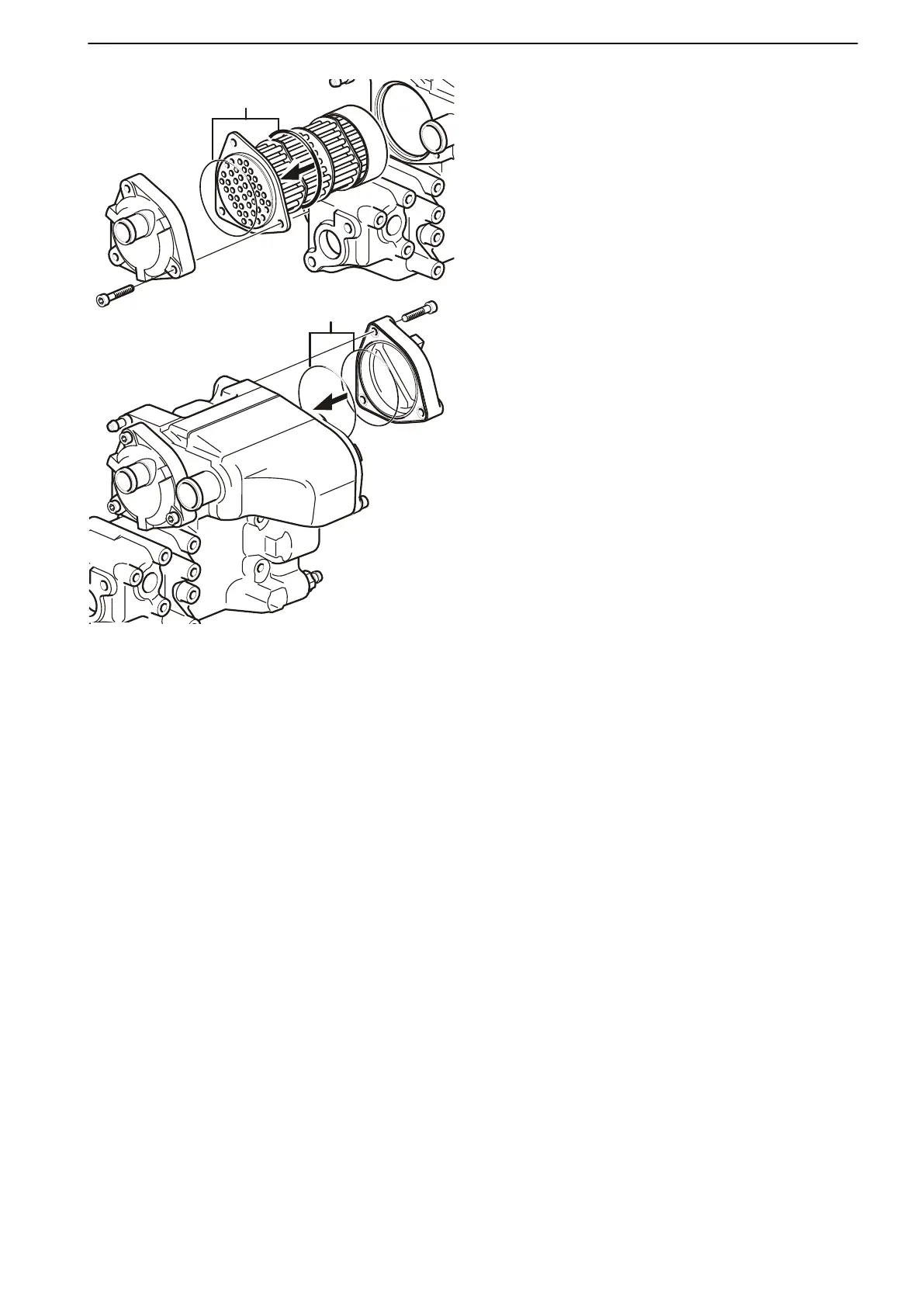

3 Install new O-rings (1) on the insert end plate.
Slide the
insert in from the alternator side. Bolt the
end plate onto the heat exchanger.
4 Install new O-rings (2) on the insert and end plate.
Bolt the end plate onto the heat exchanger.
Install the exhaust elbow.
5 Fill up with coolant. Check the level and sealing
after warming up.
