Fitting the Fixture
Drained cooling system and engine oil. Engine
removed. Right front engine mounting removed.
Tools:
885224 Fixture
9999737 Fixture
9986485 Stand
9992520 Stand
Use 885224
Fixture and 9999737 Fixture to secure the
engine in 9986485 Stand. Only 885224 Fixture is
required for securing in 9992520 Stand.

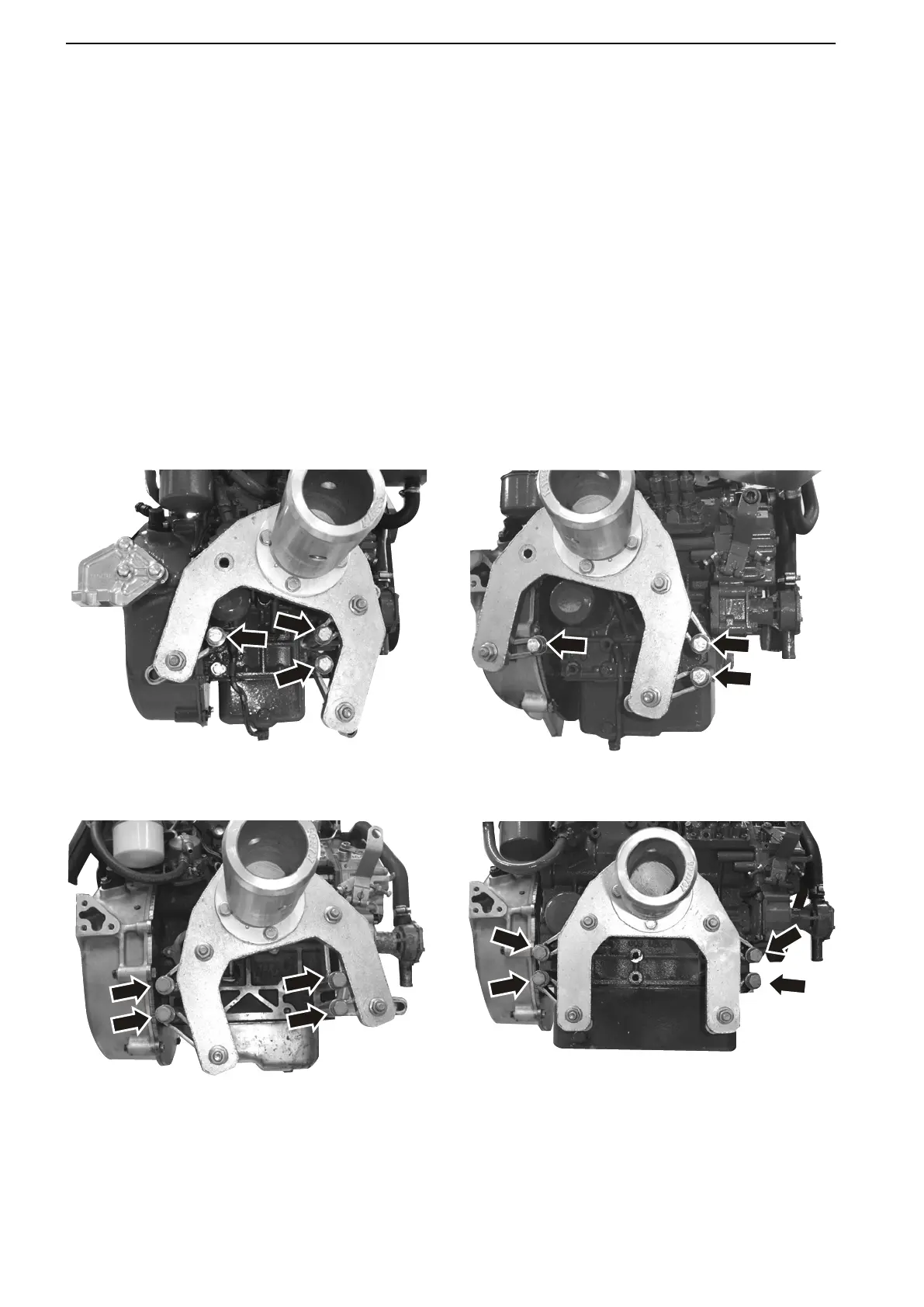

Bolt the fixture to the right side of the engine, as illus-
trated.
D1-13-A/B/F
D1-20-A/B/F
D1-30-A/B/F
D2-40-A/B/F
21-0 Engine Complete, General
50 47701798 05-2013 © AB VOLVO PENTA
