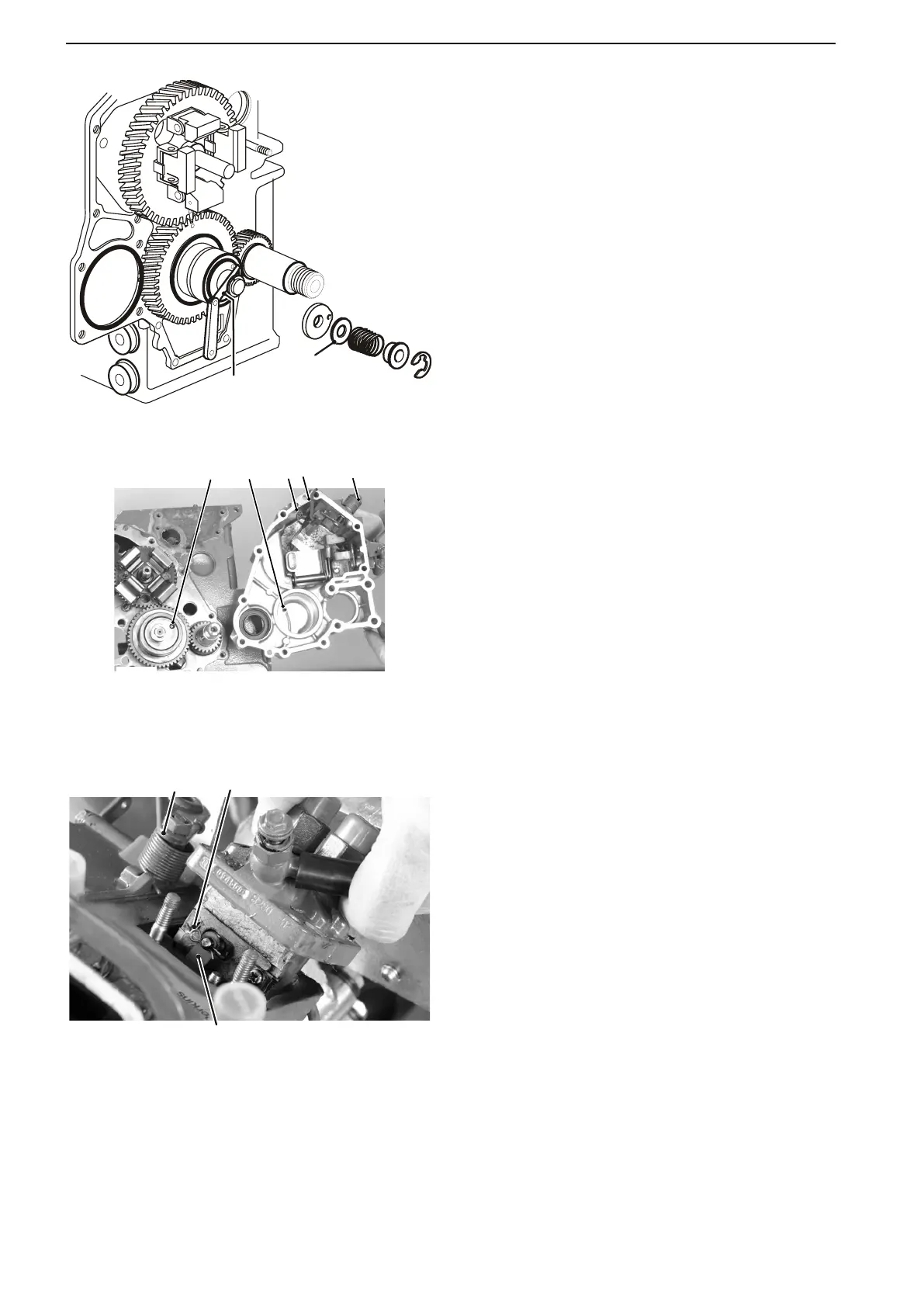

6 Install the inner rotor (7) and the oil pump cover
(8). Install
the shim (9), spring (10), spring washer
(11) and lock washer (12).
7 Adjust the oil pump end float (13) to 0.10 - 0.15
mm (0.0039–0.0059"). Shims are available in
thicknesses 0.10, 0.15, 0.20 and 0.50 mm
(0.0039, 0.0059, 0.0079, 0.0197").
8 Install a new, and if necessary adjusted, gasket
for the timing cover. Center the cover in front of
the oil pump.
NOTICE! Check that the tubular pin (14) in the
timing cover engages in the hole (15) in the oil
pump cover. Turn the cover backwards and for-
wards, and center it in the mid position. The stop
arm (16) must be turned and held in place when
the timing cover is installed.
9 Check that the starter spring (17) is correctly
located in the timing cover, and is connected to
the regulator arm (18). Put the timing gear cover
in place. Insert the regulator arm through the hole
in the cylinder block. Bolt on the timing gear
cover.
10 Turn the stop arm (19) clockwise and connect the
arm (20) to the injection pump. Install the clip (21).
NOTICE! Carefully ensure that the shim / gasket
which was placed underneath the injection pump
flange is put back, before the pump is placed in
the block (applies when the pump has been
removed).
11 Bolt on the injection pump; for tightening torque
refer to Tightening torques page 9.
12 Install a new front crankshaft seal; refer to Crank-
shaft Seal, Change (front) page 97. Fit the key
into the crankshaft and install the crankshaft pul-
ley. For tightening torque, refer to Tightening tor-
ques page 9.
21-5 Timing Gears and Shaft
84 47701798 05-2013 © AB VOLVO PENTA
