EVC System Tachometer
Introduction
Volvo Penta EVC System Tachometer presents rele-
vant boat and engine information to the helmsman. In-
formation is presented on a display in the tachometer.
Information is depending on engine model, number of
sensors and type of accessories.

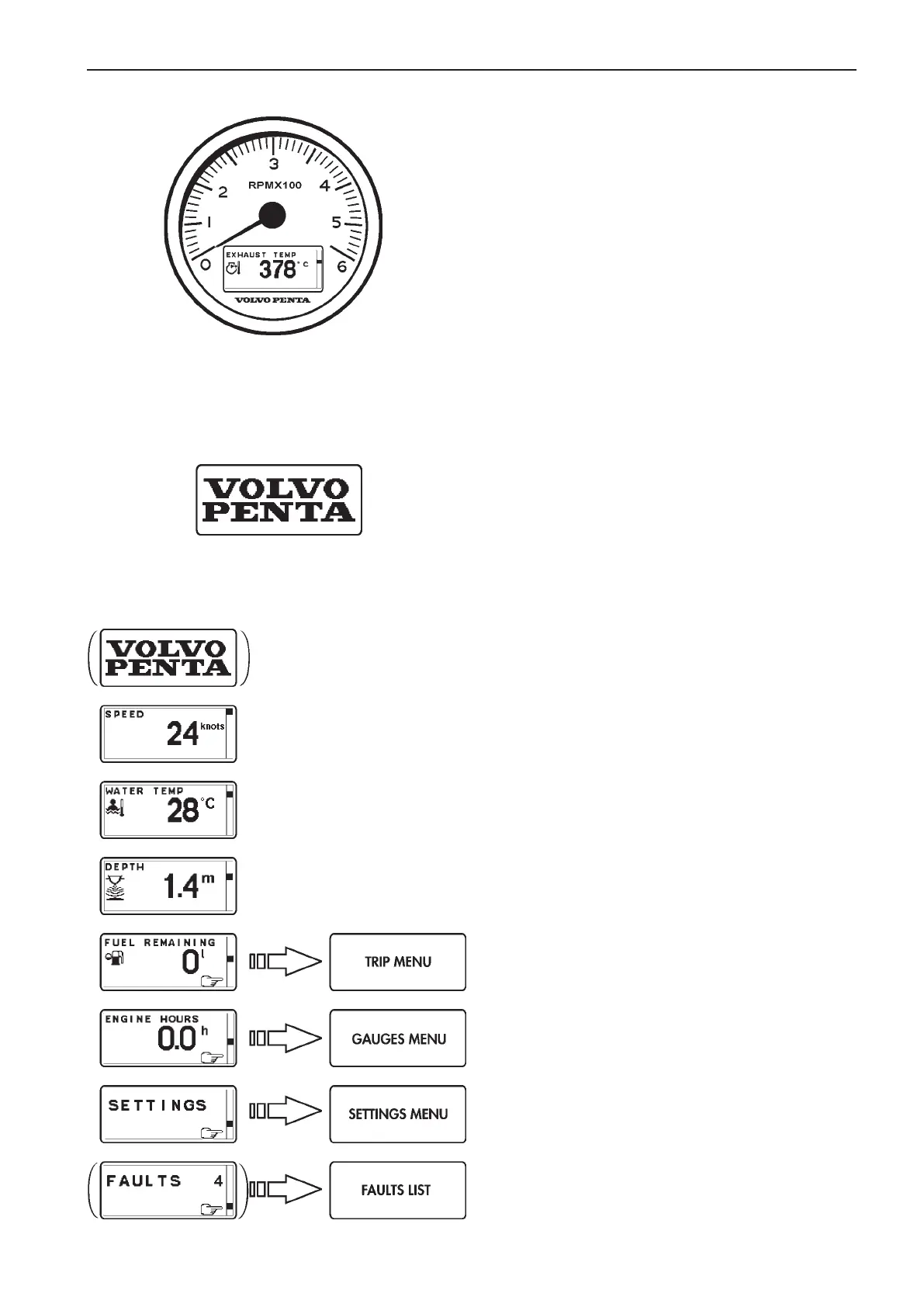

Main menu structure
Using the instrument
Start-up screen
This is the start-up screen for the EVC System Ta-
chometer. After a few seconds the first item in MAIN
MENU will appear.
Main menu
Navigating the menus
Navigate the menus by turning NAVIGATION WHEEL
clockwise or counter-clockwise. Views with a POINT-
ING HAND-symbol indicates a SUB-MENU. To enter a
SUB-MENU, push NAVIGATION WHEEL.
Speed (Option)
Boat speed. Requires multisensor or GPS.
Water temp (Option)
Water temperature. Requires multisensor.
Depth (Option)
Water depth. Requires multisensor.
Trip menu (Option)
Shows trip information. Requires the following:
- Multisensor or NMEA 0183/NMEA 2000 compat-
ible component (plotter, GPS, paddle
wheel etc)
- Fuel level sender
- Trip computer software
Gauges menu
Shows data parameters.
Settings menu
The SETTINGS MENU allows the user to set various
options for the EVC System and to calibrate various
parameters.
Faults list
Number after word FAULTS indicates number of faults
stored in FAULTS LIST. List is reset when system is
rebooted.
NOTE! Faults list is not shown if no faults are regis-
tered.
