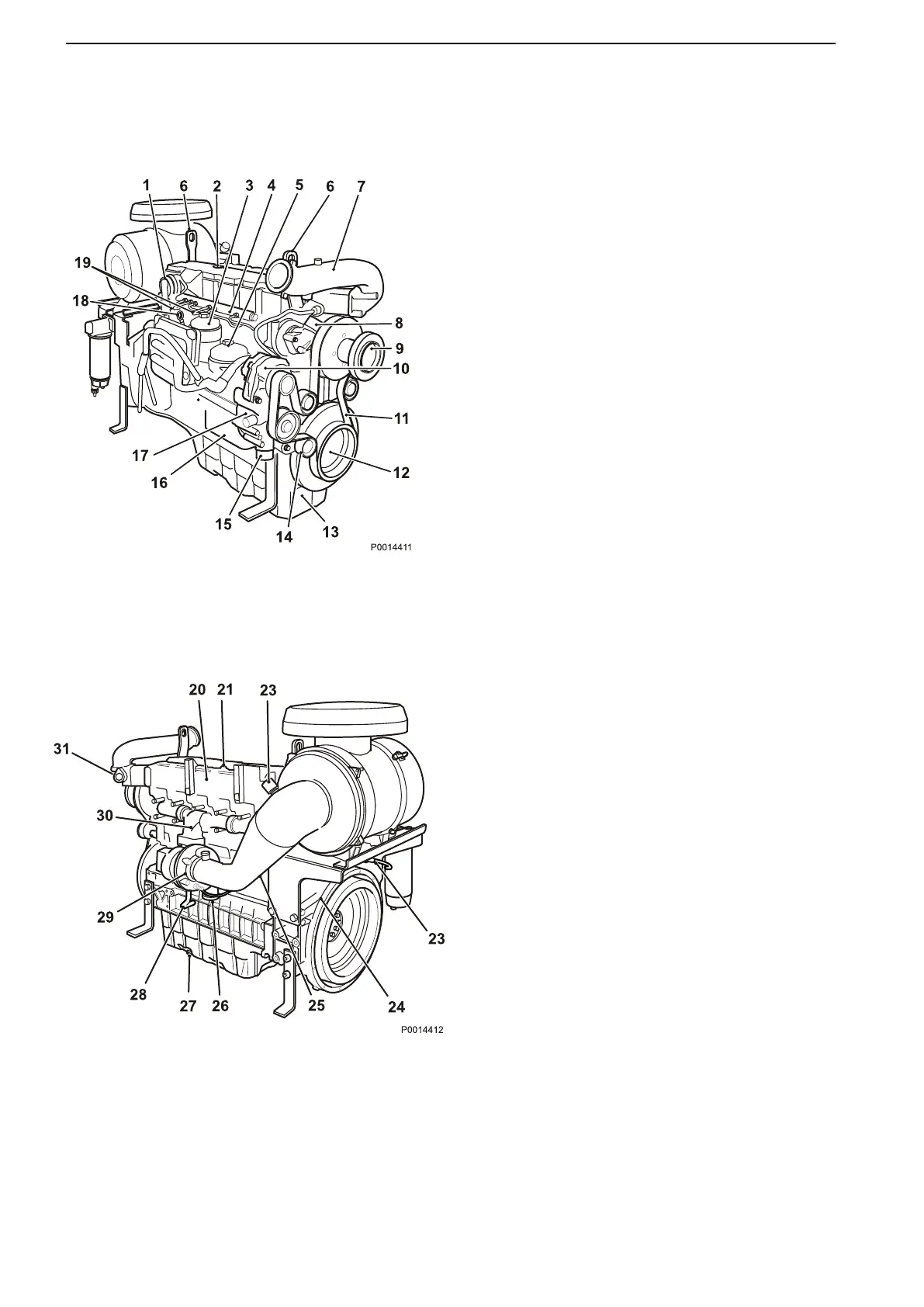

Orientation
1
Crankcase ventilation
2 Oil filler cap, engine
3 Fuel Filter
4 Common Rail unit, with safety valve and rail
pressure sensor
5 Oil filter
6 Lifting eyes, (2 pcs)
7 Inlet, after charge-air cooler
8 Coolant outlet, from thermostat housing
9 Fan hub
10 Alternator
11 Drive belt
12 Drive gear, crankshaft
13 Oil Sump
14 Belt Tensioner
15 Coolant inlet, to engine
16 Oil cooler
17 Coolant Pump
18 Oil dipstick, engine
19 High pressure pumps
20 Intake manifold
21 Valve Cover
22 Air filter indicator
23 Fuel pump
24 Flywheel Housing
25 Starter motor guard
26 Charge air, to cooler
27 Drain plug, oil pan
28 Oil pipe, from turbo
29 Turbo
30 Relay
31 Exhaust Manifold
32 Throttle
Maintenance
64
47711097 09-2018 © AB VOLVO PENTA
