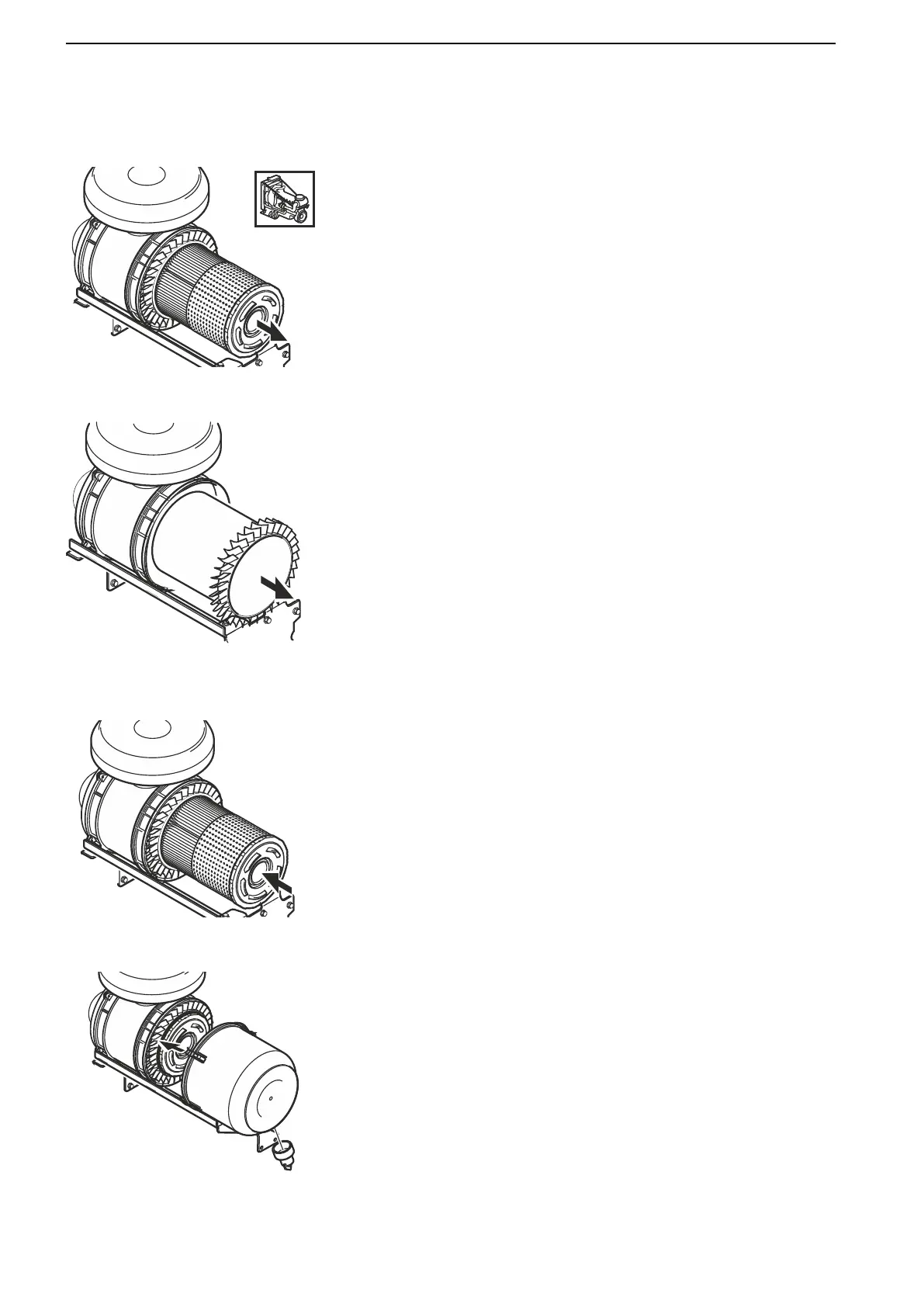

Air Filter, Change
Removal
1
Remove the filter housing cover/end panel.
Remove the air filter.
Clean inside the housing.
2
Where necessary, remove the air filter housing
inner part and clean it.
Installation
3
Replace the air filter housing inner part.
Install a
new
air filter.
4
Install the filter housing cover/end panel.
P00031
18
P00031
19
P0003120
P0003121
