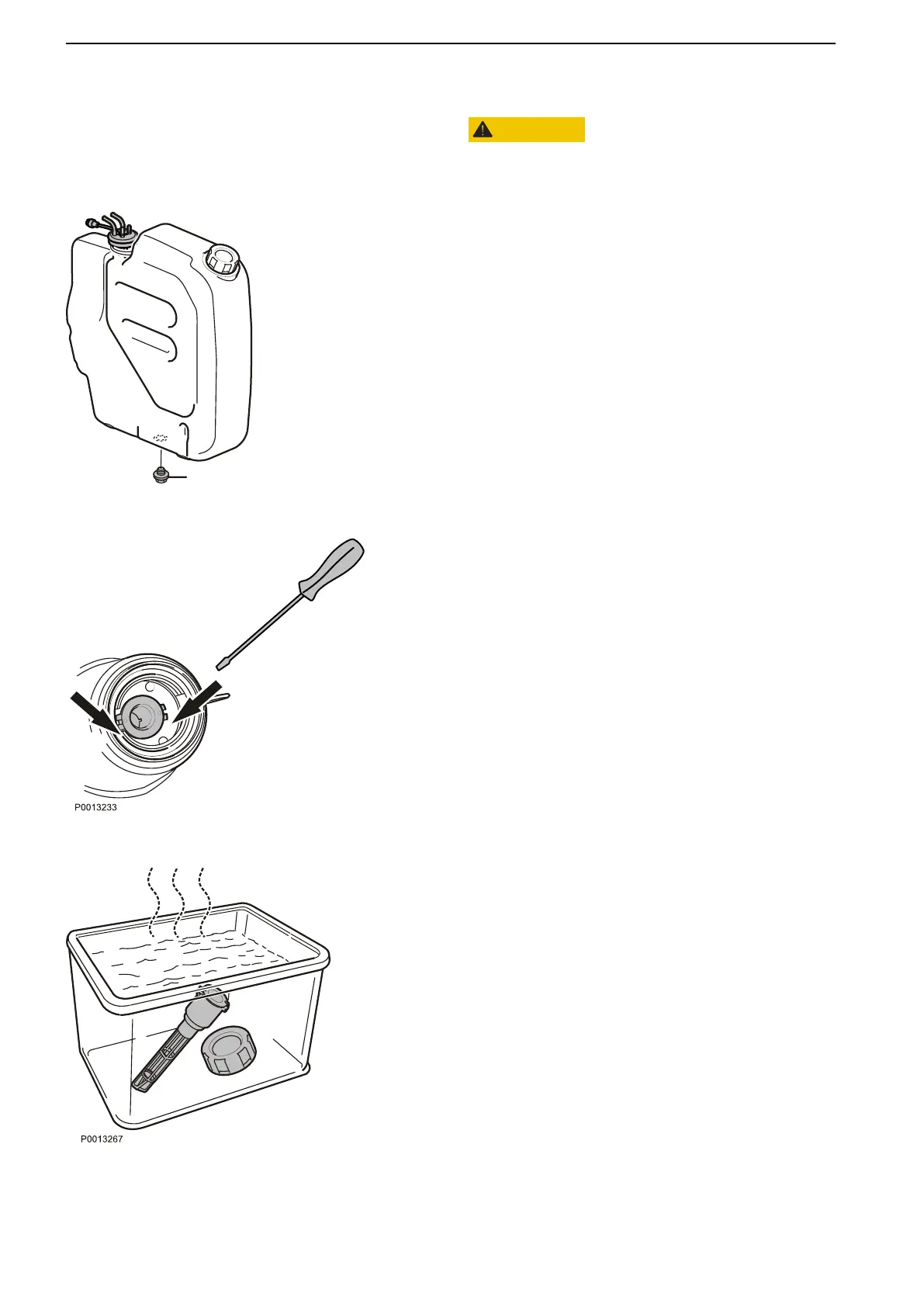

AdBlue/DEF Tank, Cleaning
CAUTION!
Gloves must be changed. Take off contaminated
clothes.
1
Remove
the drain
plug (1)
from the
bottom of
the
tank and empty any remaining AdBlue/DEF
solution and coolant into a suitable recovery
container.
2
Remove the filler cap and undo the filler
assembly.
3
Immerse the filler cap and filler assembly in a
water bath for at least 2 minutes.
P0013268
1
Maintenance
84
47711097 09-2018 © AB VOLVO PENTA
85
87
