Group 30: Electrical system Component location
11

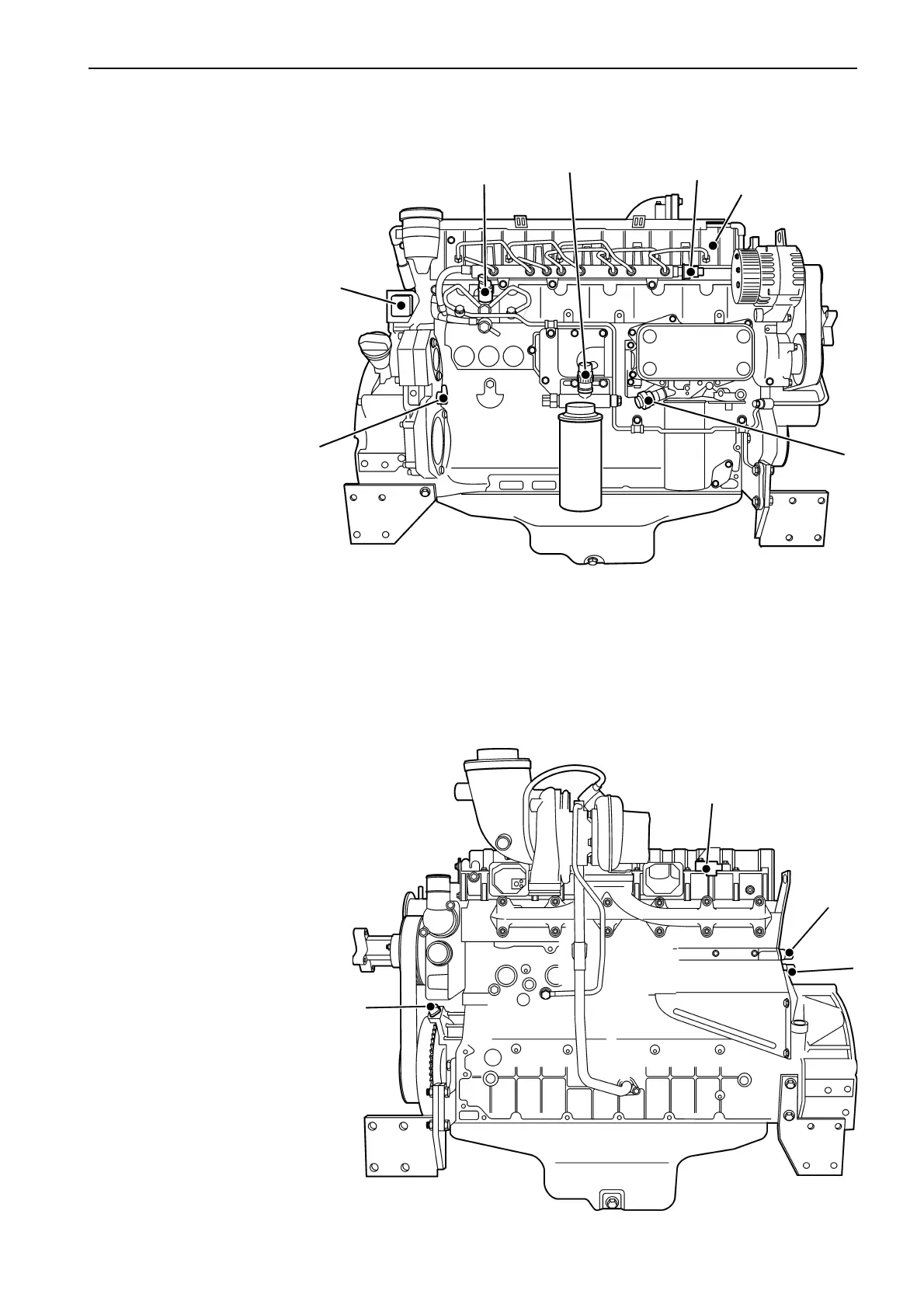

Component location TAD 650, 660, 750, 760 VE
NOTE! Location can differ, depending on engine model.
1. Speed sensor, camshaft
2. Connection, EMS 2
3. Solenoid controlled proportional valve, high pres-
sure pump – fuel (MPROP)
4. Fuel pressure
5. Fuel pressure in comman rail
6. Glow plugs, one for each injector
7. Oil pressure sensor
8. Boost pressure and temperature
9. Solenoid valve, EGR
10. Coolant temperature
11. Speed sensor, crankshaft
12. Water in fuel (not shown, mounted on primary
fuel filter).
1
2
3
4
5
6
7
8
9
10
11
