12 Malfunctions
40 100_0202_ts_0005.fm
12.1 Boost
Note: Use only insulated booster cables with a cross section of at least 16 mm².

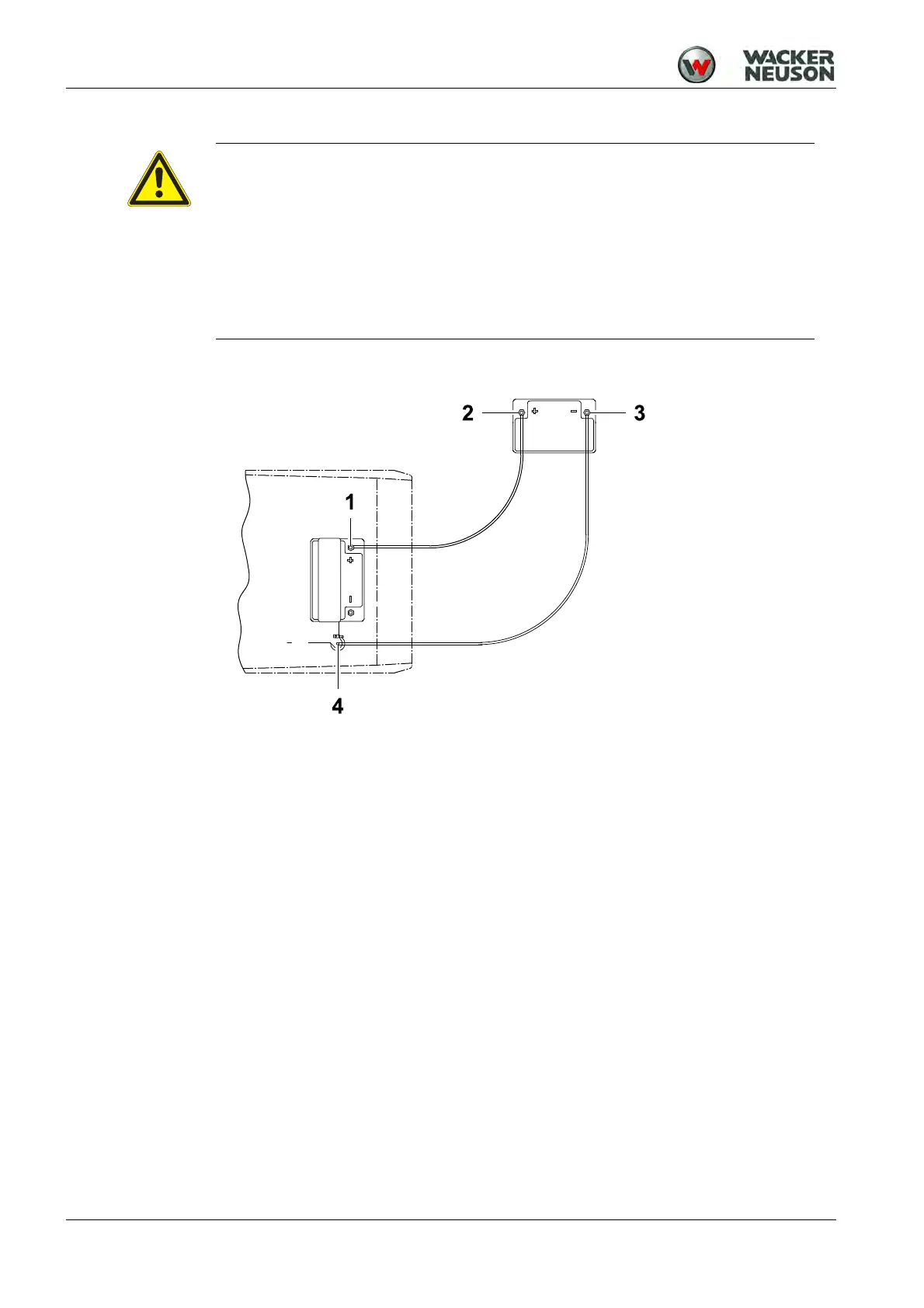

The following connection sequence must be used when starting with an external battery:
1. Clamp red booster cable to positive pole (1) of the discharged battery using a
pair of clamping pliers.
2. Clamp the other pair of clamping pliers of the red booster cable to the donor bat-
tery's positive pole (2).
3. Clamp black booster cable to negative pole (3) of the donor battery using a pair
of clamping pliers.
4. Attach the other clamping pliers of the black booster cable to the ground con-
nector (4) of the equipment, e.g. the engine support.
5. Start the engine and allow it to warm up (max. 15 seconds).
6. Follow these steps in reverse to remove all clamped on cables - first the black
and then the red booster cable.
WARNING
Danger of explosion due to detonating gas.
Injury may result from spraying acid.
Wear safety glasses and acid-proof protective gloves.
The donor battery and the machine's battery must have the same voltage
(12 V).
Avoid short circuit due to voltage reversal (positive to positive, negative to
negative).
Follow the booster cable connection sequence.
