10 Troubleshooting
59 100_0202_ts_0010.fm
1. Connect clamping tongs of the red jumper cable to the positive terminal of the discharged starter
battery.
2. Connect clamping tongs of the red jumper cable to the positive terminal of the discharged donor
battery.
3. Connect clamping tongs of the black jumper cable to the negative terminal of the discharged donor
battery.
4. Reconnect second clamping tongs of the black jumper cable to a grounding point of the machine, e.g.
at the engine block.
Perform jump start
5. Start engine.
If the engine does not start after more than two minutes, inform your Wacker Neuson contact person.
6. Run engine for a few minutes.
Disconnect the jumper cable
7. Disconnect clamping tongs of the black jumper cable from the grounding point of the machine.
8. Disconnect second clamping tongs of the black jumper cable from the donor starter battery.
9. Disconnect clamping tongs of the red jumper cable from the positive terminal of the discharged starter
battery.
10.Disconnect clamping tongs of the red jumper cable from the positive terminal of the discharged donor
battery.

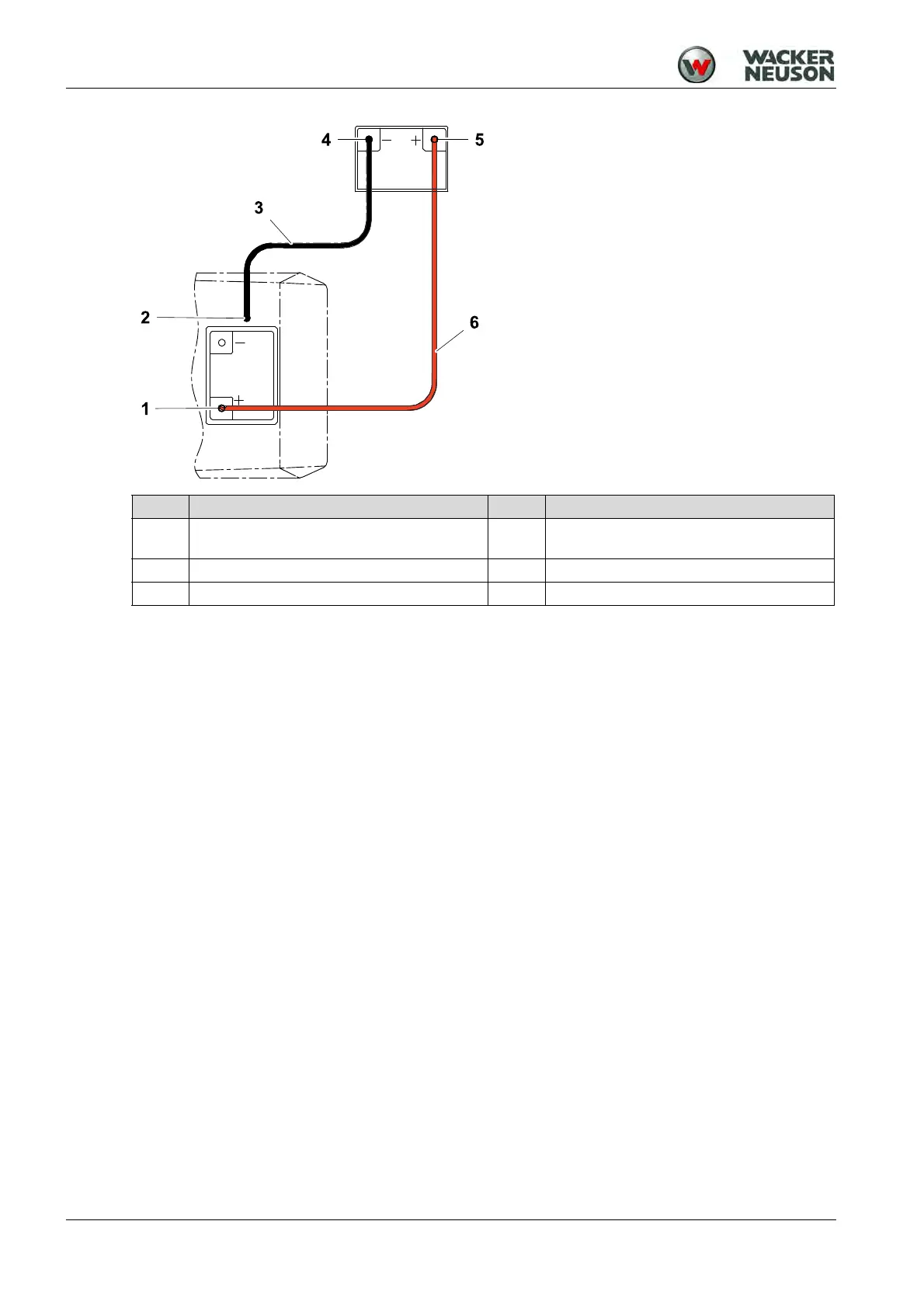

Item Designation Item Designation
1 Positive terminal of the discharged starter
battery
4 Negative terminal of the donor starter
battery
2 Negative terminal at the grounding point 5 Positive terminal of the donor starter battery
3 Black jumper cables 6 Red jumper cables
