3.22 Operation monitoring

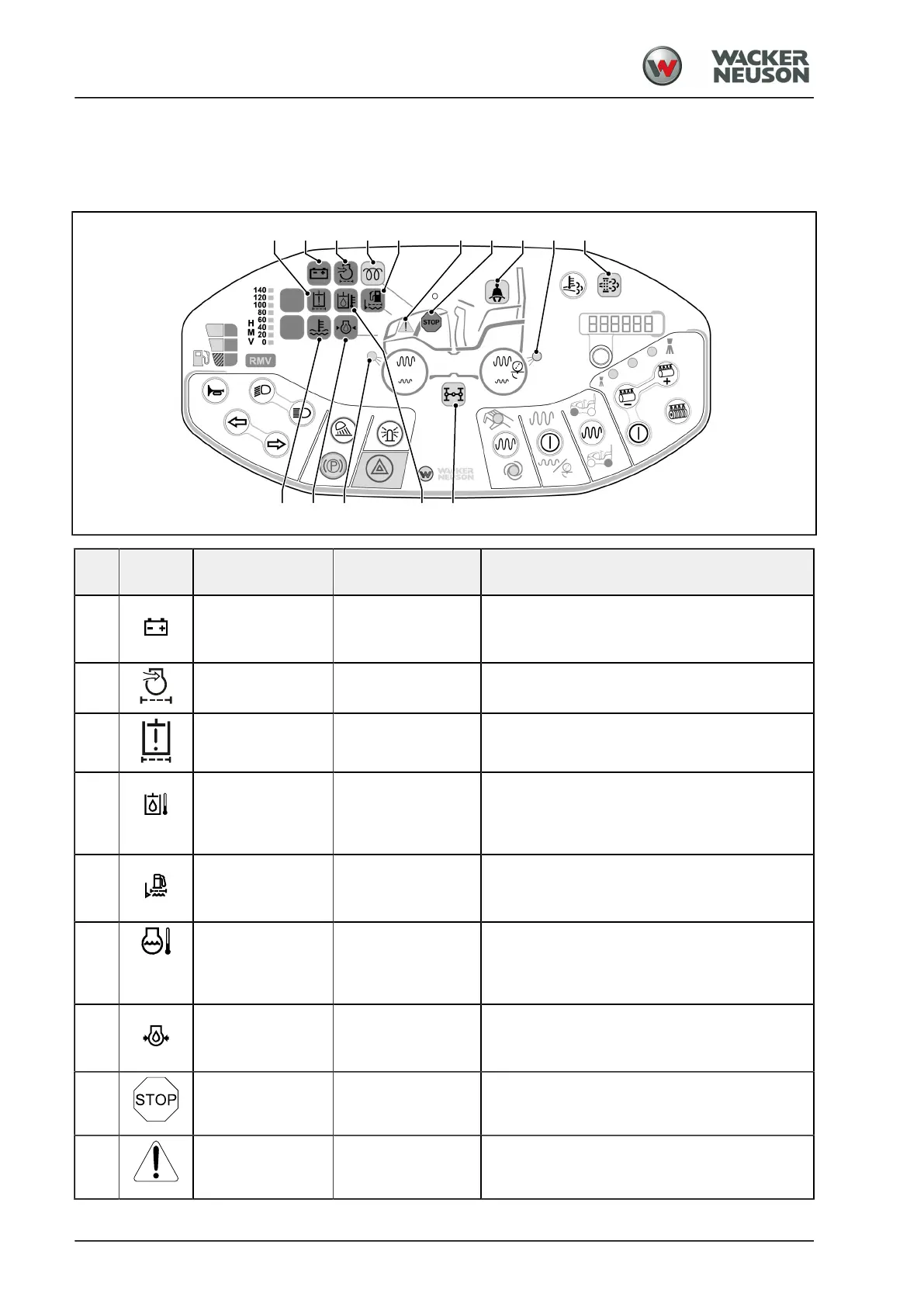

Control panel – warning and indicator lights
13 114
1 2 10 5 9 8 12 13 14
No. Symbol Warning and
indicator light
Status Meaning/measure
[1] Charge current
(battery)
Flashes red No charge current: Check the electrical sys-
tem.
Request assistance from customer service.
[2] Air filter Flashes red The air filter cartridge is contaminated.
Check the air filter.
[3] No function
[4] Hydraulic oil tem-
perature
Flashes red Hydraulic oil temperature is high or the hy-
draulic oil has overheated.
Switch off the engine, request assistance from
customer service if necessary.
[5] No function
[6] Engine tempera-
ture
Flashes red Engine temperature is high or the engine has
overheated.
Switch off the engine, check the coolant fill lev-
el, check the radiator.
[7] Engine oil pres-
sure
Flashes red Engine oil pressure is too low.
Check the engine oil fill level.
[8] Serious fault Flashes red Indicates a serious fault. At least one warning
light is flashing and an error code is displayed.
Stop using the machine!
[9] Warning, notifica-
tion, fault
Lights up yellow Deviation from the normal operating status. At
least one warning light is flashing and an error
code is displayed.
