Disassembly Procedures
WM 90 Repair
wc_tx000389gb.fm
44
7.3

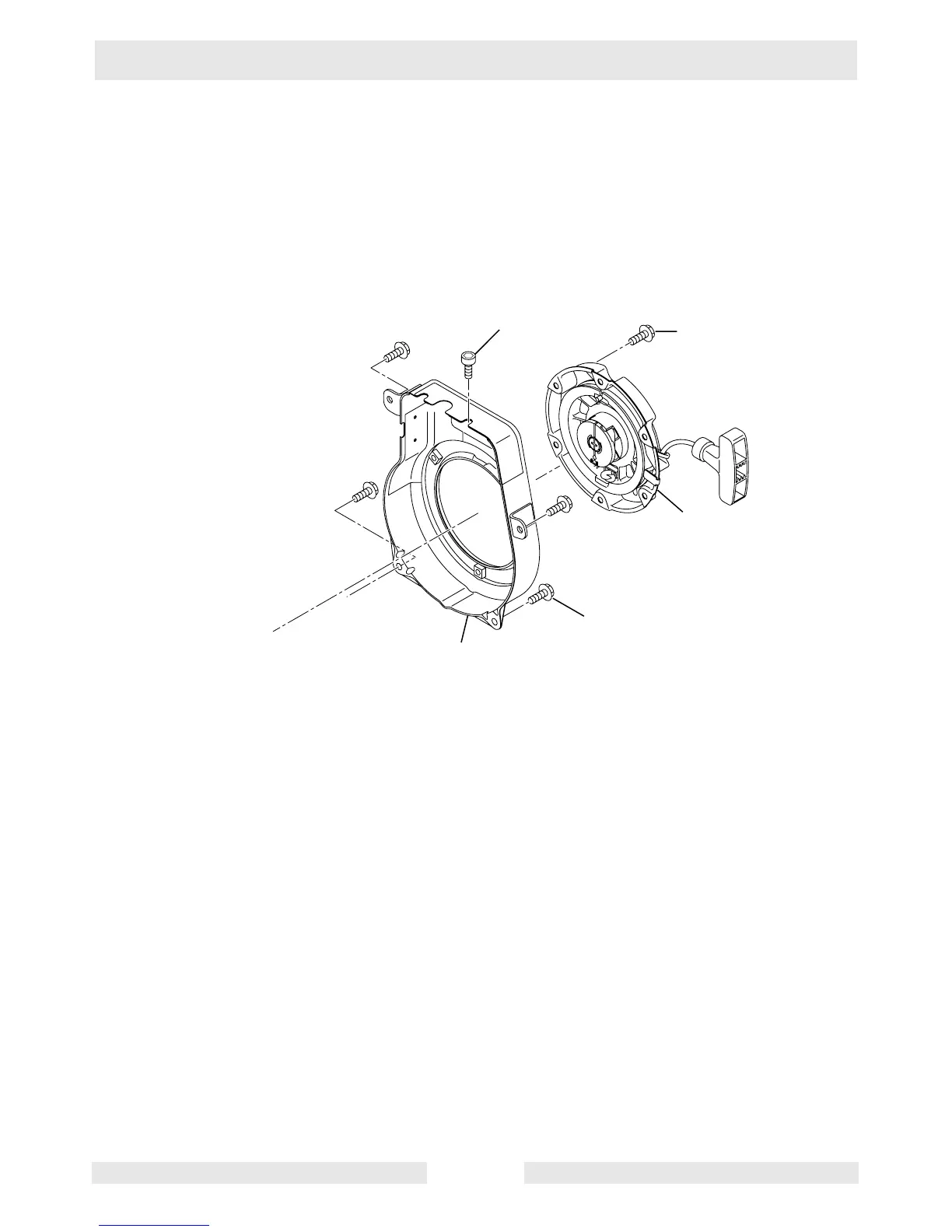

Removing Reco
il Starter and Blower Housing
See Graphic: wc_gr003650
7.3.1
Remove the bolts
(a)
and remove the recoil starter
(b)
from the
housing.
7.3.2
Remove the flange bolts
(f)
, cap screw
(g)
, and remove the blower
housing
(h)
.
wc_gr003650
a
b
h
f
g
43
45
