CUSTOMIZING
Page 80
Contents
Index
DISPLAY AREA
The DISPLAY AREA options allow you to define which portion of the display screen your tablet will map to.
• ENTIRE DISPLAY. Select this option to access the entire display. This is the default setting. If more
than one monitor is in use, a pull-down menu is displayed with options for selecting A
LL MONITORS or
individual monitors.
• P
ORTION OF DISPLAY.... This option allows you to select a portion of the display for tablet to screen
mapping. Selecting P

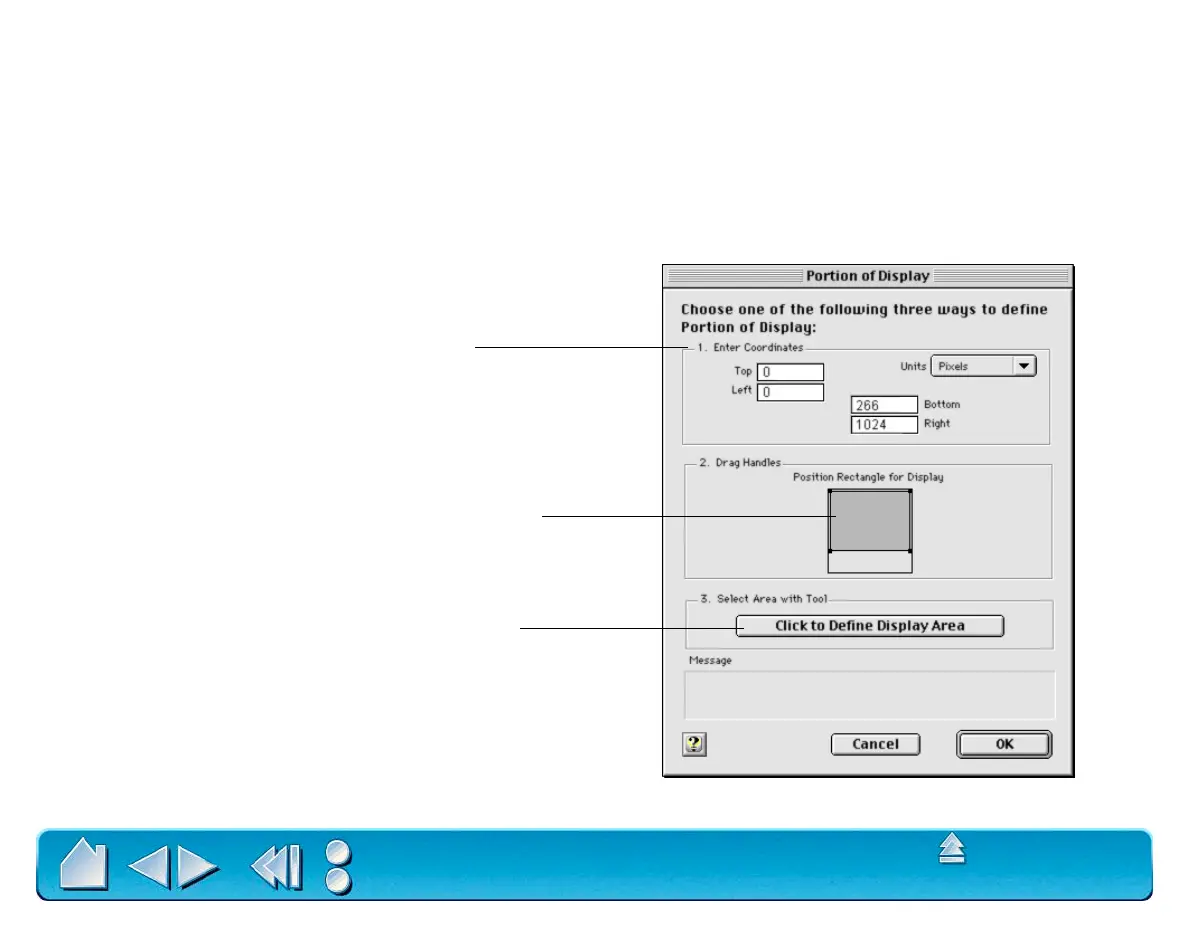

ORTION OF DISPLAY... brings up the PORTION OF DISPLAY dialog box.
Drag corners of the foreground graphic to select the
screen area. The background graphic represents the
entire screen area. Values in the ENTER COORDINATES
text boxes will change accordingly.
Enter coordinates to select the screen area.
• Select UNITS of measure for the displayed values.
• Enter values for the TOP, LEFT, BOTTOM, and RIGHT
boundary of the display screen area. Values are
measured from the top left corner of the display.
Move the screen cursor to select the screen area.
• Select the CLICK TO DEFINE SCREEN AREA button.
• Follow the MESSAGE prompts to set the portion of
your display screen that will be used for mapping.
Note: As you define PORTION OF DISPLAY, be sure to
review the MESSAGE prompts that may appear.
