WAGNER F230 User Manual

14
VM 500
A
B
C
B_03417
VM 500
OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2318724
4.3 TECHNICAL DATA
Input voltage 115 VAC - 230 VAC, 50 Hz / 60 Hz
Input power max. 40 W
Input current max. 0.5 A
Output voltage max. 20 Vpp
Output current max. 1.0 A AC
High-voltage limit 80 kV DC
Spraying current limit 100 µA DC
Polarity for negative high-voltage generator
Protection class
IP 54 *
Weight (without cables) 2.3 kg; 5.07 lb
Working temperature range 0-40 °C; 32-104 °F
* Splash-proof protection is only guaranteed when the gun cable socket is screwed to
the device plug and the mains cable plug is fi xed to the control unit plug with the
safety clip.

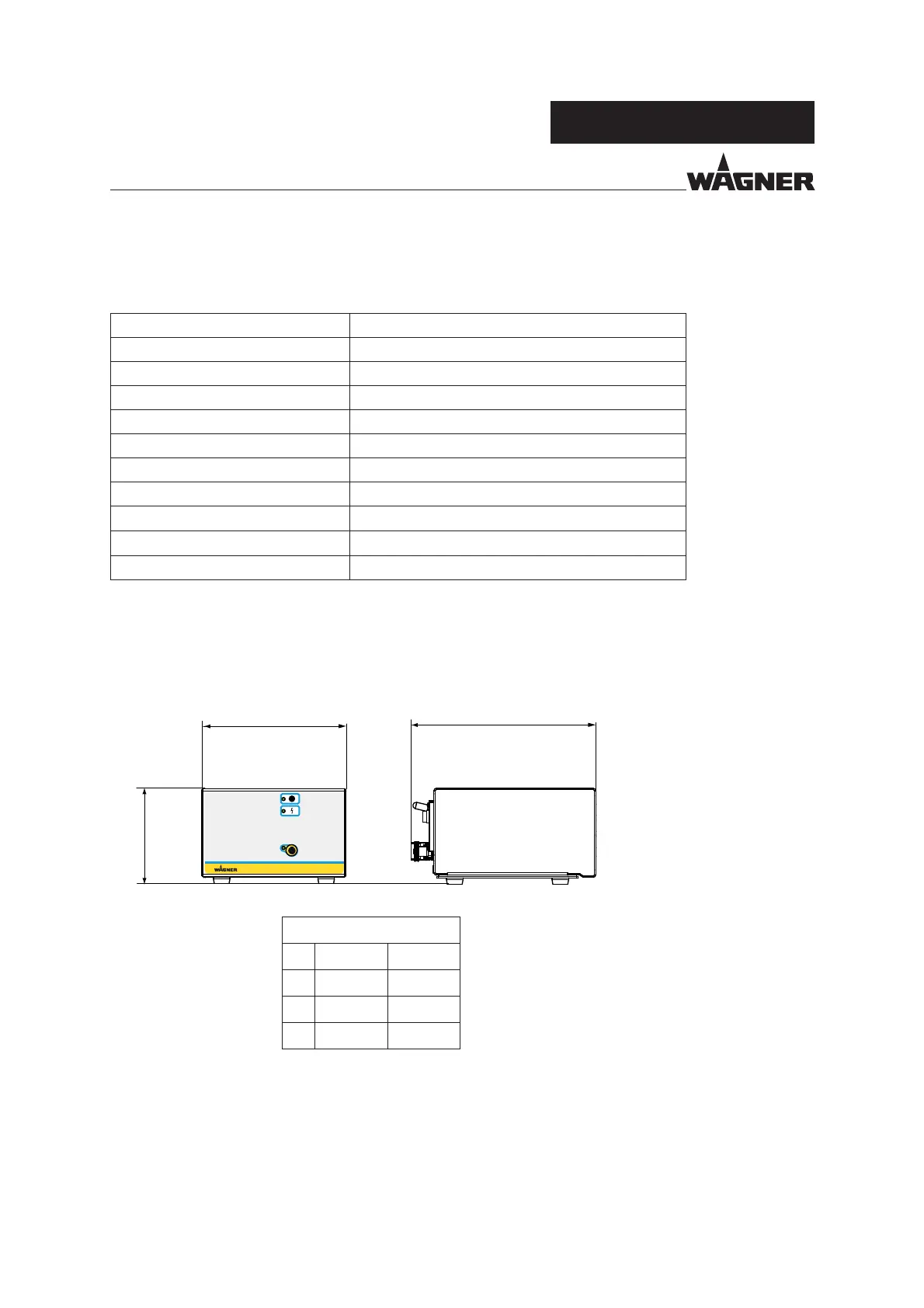

Measurements:
VM 500
mm inches
A 230 9.06
B 180 7.09
C 120 4.72

WAGNER F230 Specifications

General

Brand	WAGNER
Model	F230
Category	Paint Sprayer
Language	English
