17
VM 500
Spannung:
Voltage:
Strom:
Current:
max. 20Vpp
max. 1,0A
Typ / Type: VM 500
115VAC - 230VAC
50Hz / 60Hz
2309228
max. 40W
J. WAGNER AG
Industriestrasse 22
CH - 9450 Altstätten
Made in Switzerland
Serie Nr.:
Serial No.:
Spannung:
Voltage:
Artikel Nr.:
Article No.:
Eingangsleistung:
Input Power:
Schutzklasse:
Protection Class:
Norm:
Standard:
EN 50050
IP 54
Eingangsstrom:
Input Current:
max. 0.5A
I
0
Main Switch
Prim.
1.0 AT
Nicht unter Spannung trennen! Do not disconnect under voltage!
0102
II (2) G
SIRA 11 ATEX 5374X
II 3 G
Ex nR IIA T4 Gc
B_03420
1
2
3
4
5
Spannung:
Voltage:
Strom:
Current:
max. 20Vpp
max. 1,0A
Typ / Type: VM 500
115VAC - 230VAC
50Hz / 60Hz
2309228
max. 40W
J. WAGNER AG
Industriestrasse 22
CH - 9450 Altstätten
Made in Switzerland
Serie Nr.:
Serial No.:
Spannung:
Voltage:
Artikel Nr.:
Article No.:
Eingangsleistung:
Input Power:
Schutzklasse:
Protection Class:
Norm:
Standard:
EN 50050
IP 54
Eingangsstrom:
Input Current:
max. 0.5A
I
0
Main Switch
Prim.
1.0 AT
Nicht unter Spannung trennen! Do not disconnect under voltage!
0102
II (2) G
SIRA 11 ATEX 5374X
II 3 G
Ex nR IIA T4 Gc
B_03421
1
2
3
4
5
OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2318724
5 PREPARATION BEFORE STARTING WORK
5.1 ADDITIONAL COMPONENTS
This control unit can be used to complete an electro-static hand spraying system. If this is
the objective, only a suitable spray gun and the relevant components for the selected spray
technique are required (see WAGNER accessories).
Spray guns that are compatible with the VM 500:
WARNING
Incorrect installation/operation!
Risk of injury and damage to equipment
 When putting into operation and for all work, read and follow
the operating instructions and safety regulations for the additionally
required system components.
SIHI_0050_GB
CAUTION
Impurities in the spraying system!
Spray gun blockage, materials harden in the spraying system
 Flush the spray gun and paint supply with a suitable cleaning agent.
SIHI_0001_GB

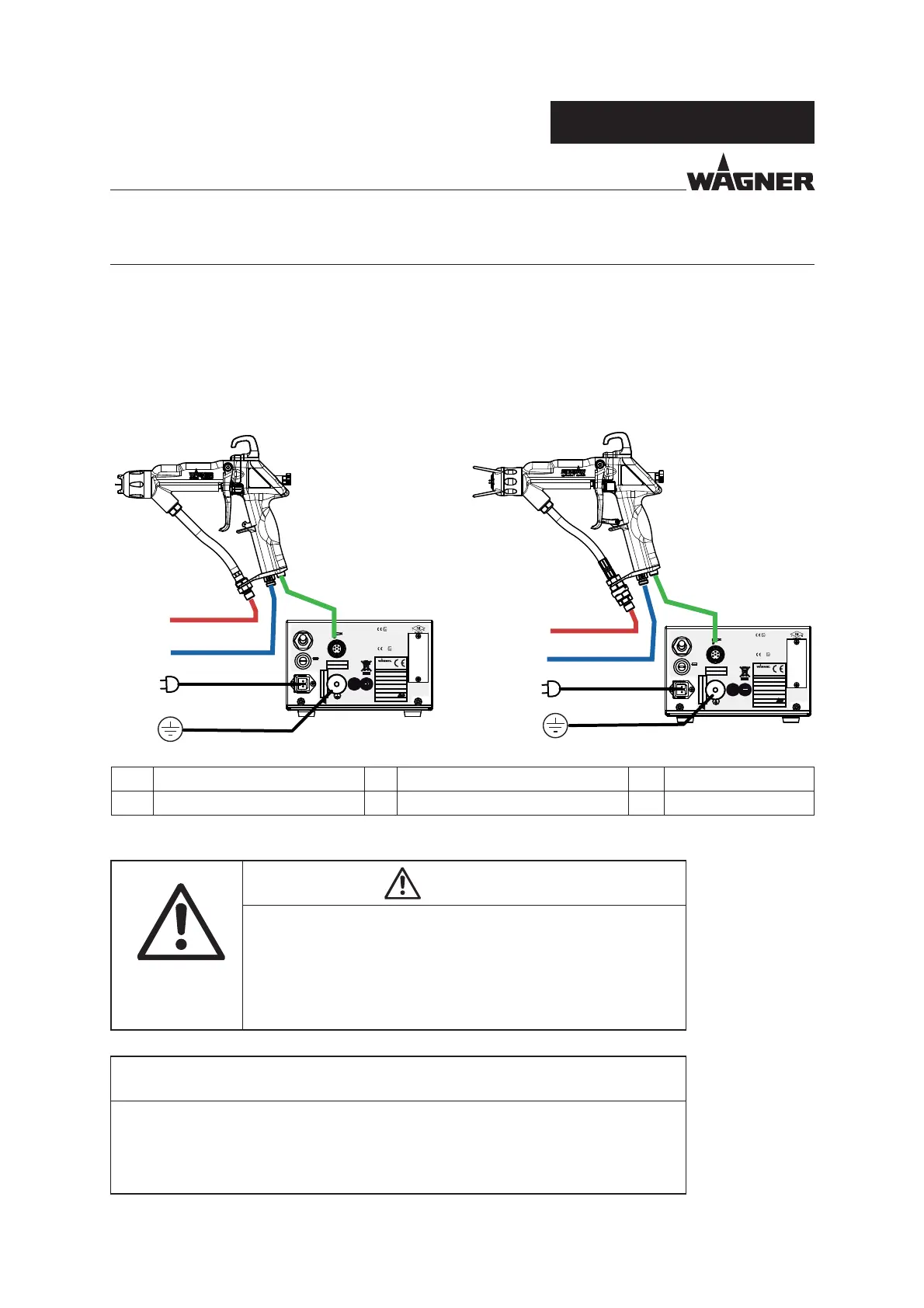

Air-Spray GM 5000EAR or GM 5000EAF
AirCoat-Spray GM 5000EACR or GM 5000EACF
VM 500
VM 500
1 for the material supply system 3 Mains cable 5 Spray gun cable
2 for the compressed air supply 4 Earthing cable to system earth
