OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2318724

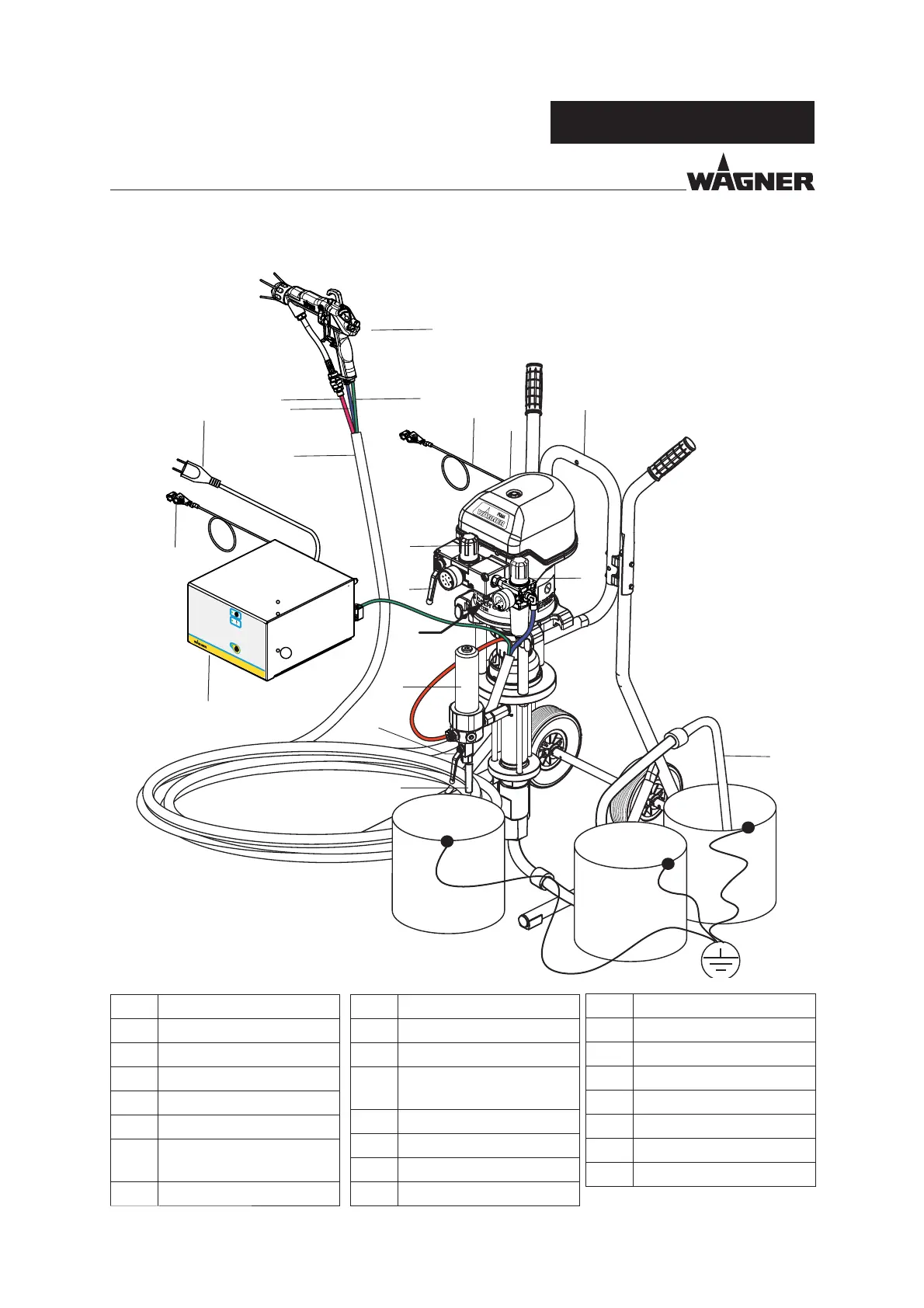

5.4 EXAMPLE FOR AIRCOAT SPRAYING SYSTEM
Item Description
1 GM 5000EACF spray gun
2 Gun cable
3 Earthing cable
4 Pneumatic pump
5 Carriage
6 Pressure regulator +
air fi lter
7 Material suction system
Item Description
8 Return hose
9 High pressure fi lter
10 Compressed air
connection
11 Stop valve
12 Air pressure regulator
13 VM 500 control unit
14 Protective hose
Item Description
15 Air hose
16 Material hose
17 Return valve
18 Container for return fl ow
19 Paint container
20 Container, cleaning agent
21 Mains cable
