WAGNER Force Ten FDX User Manual

9
FORCE TEN
TM
FORCE GAGE

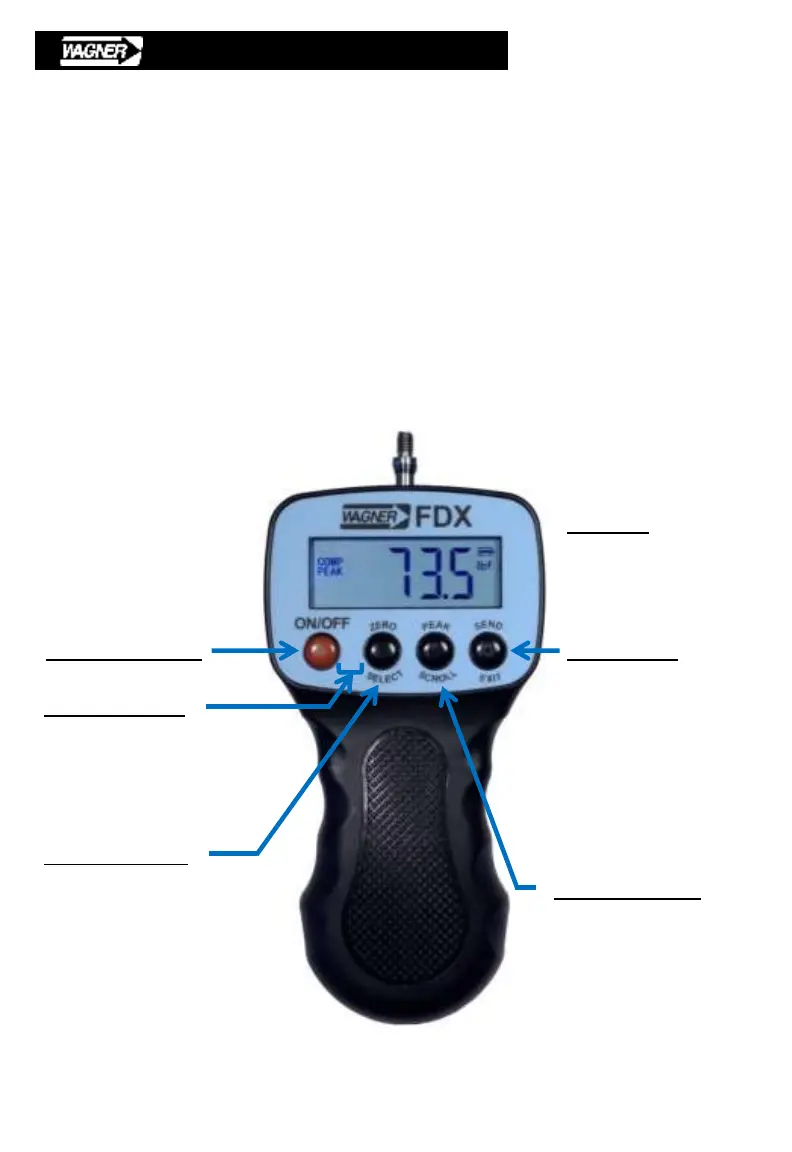

A. KEYPAD AND DISPLAY
A.1 Keypad Description
FDX is operated with four buttons that control all functions. Practice using the
buttons to gain familiarity with gage operation prior to actual use.
For simplicity, each control button has two context sensitive functions.
The function of each button depends on how the gage is powered on.
 See Section B. Menu Control of gage setup and configuration details
 See Section C. Gage Operation for all operating modes
If there is no display or if low battery is indicated, the battery may be low or not securely
connected. Connecting the AC Power Adapter or USB Cable confirms dead battery.
DISPLAY
• Force reading & units
• Tension / Compression
• Battery charge status
PEAK / SCROLL
Display Force
• Real Time Non-Peak
• Compression Peak
• Tension Peak
Control Menu
• See Section B
• Scroll through items
• Wrap-around scroll
MENU ACCESS
• See Section B
SEND / EXIT
Send Data
• Single value output
with SEND key
• Data logging software
See MESUR™Lite
manual
Exit Menu
• Leave menu at
any time
ON/OFF BUTTON
• Turns FDX on and off
ZERO / SELECT
• Selectable units, auto-off
backlight & audible signal
• Zeros gage display
• Select items from menu
