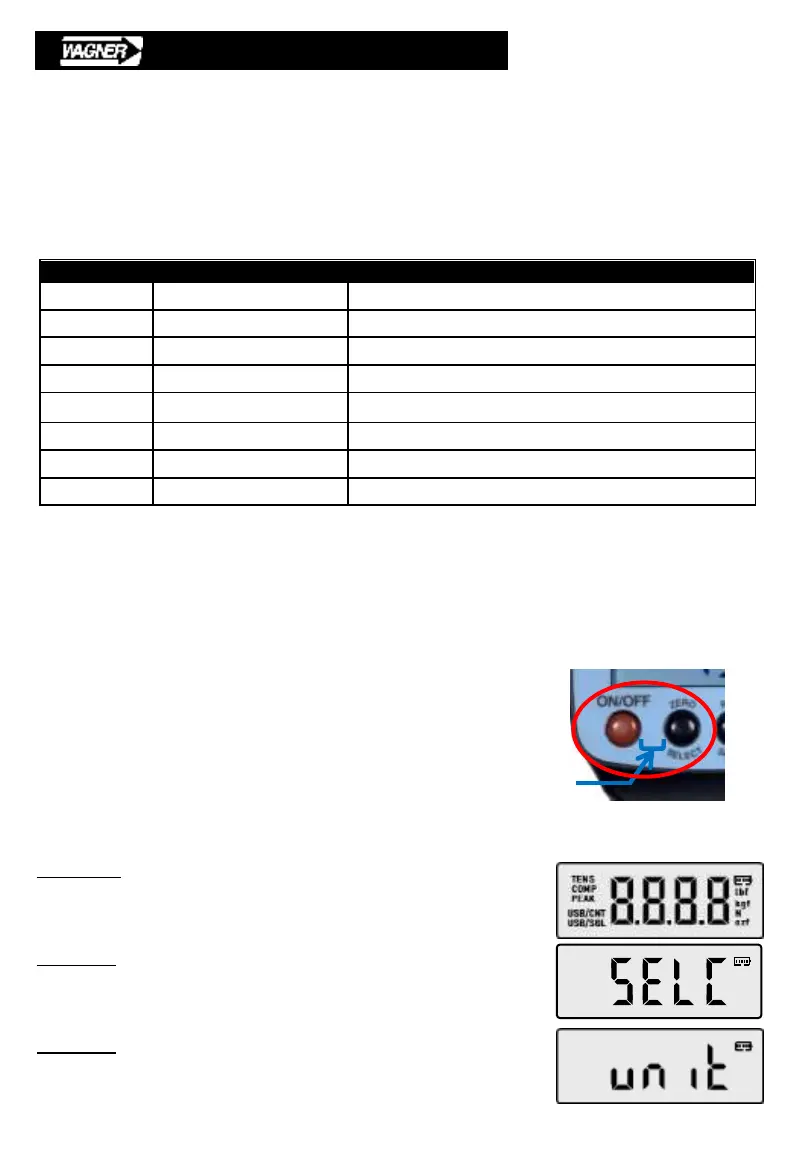

B.1 Menu Description
There is no menu option for capacity selection - simply “Plug and Play”. The
gage capacity is fixed by the built in load cell. The capacity is displayed during
the power-on sequence (see section C. Gage Operation).
FDX features are configured using the set-up menu. First the category of features is
selected, then the configuration value is reviewed or changed if needed.
TABLE 4 MENU OPTIONS AND SELECTIONS
Display
Menu Category
Configuration Value
unit
Select units
lbf * / kgf / N / ozf
AoFF
Power auto-off time
no * / 30 minutes
PSS
data Points Per Sec
1200 *
bLit
Backlight auto-off time
1min / 5min * / 10min / 20min / 30min / OFF / On
tonE
Button press tone
OFF or On *
USb
Serial port configuration
bAud * / Lnth * / StoP * / Part * / trAn *
L CAL
Auto - Calibration
See H.3 Auto-Calibration
* Factory default settings.
B.2 Menu Operations
B.2.1 Menu Access
• Power off the gage.
• Press & hold ZERO/SELECT
• Then press & release ON/OFF
• Hold ZERO/SELECT until SELC is displayed
• Then release ZERO/SELECT
The display will automatically step through several
screens before the menu can be used.
Display 1 – LCD test.
All segments of the display are momentarily highlighted
providing a self-test for each LCD segment.
Display 2 – Select.
SELC is displayed as long as the ZERO/SELECT button
is held, indicating that menu selections may begin.
Display 3 – Menu category.
The first menu category is unit.
