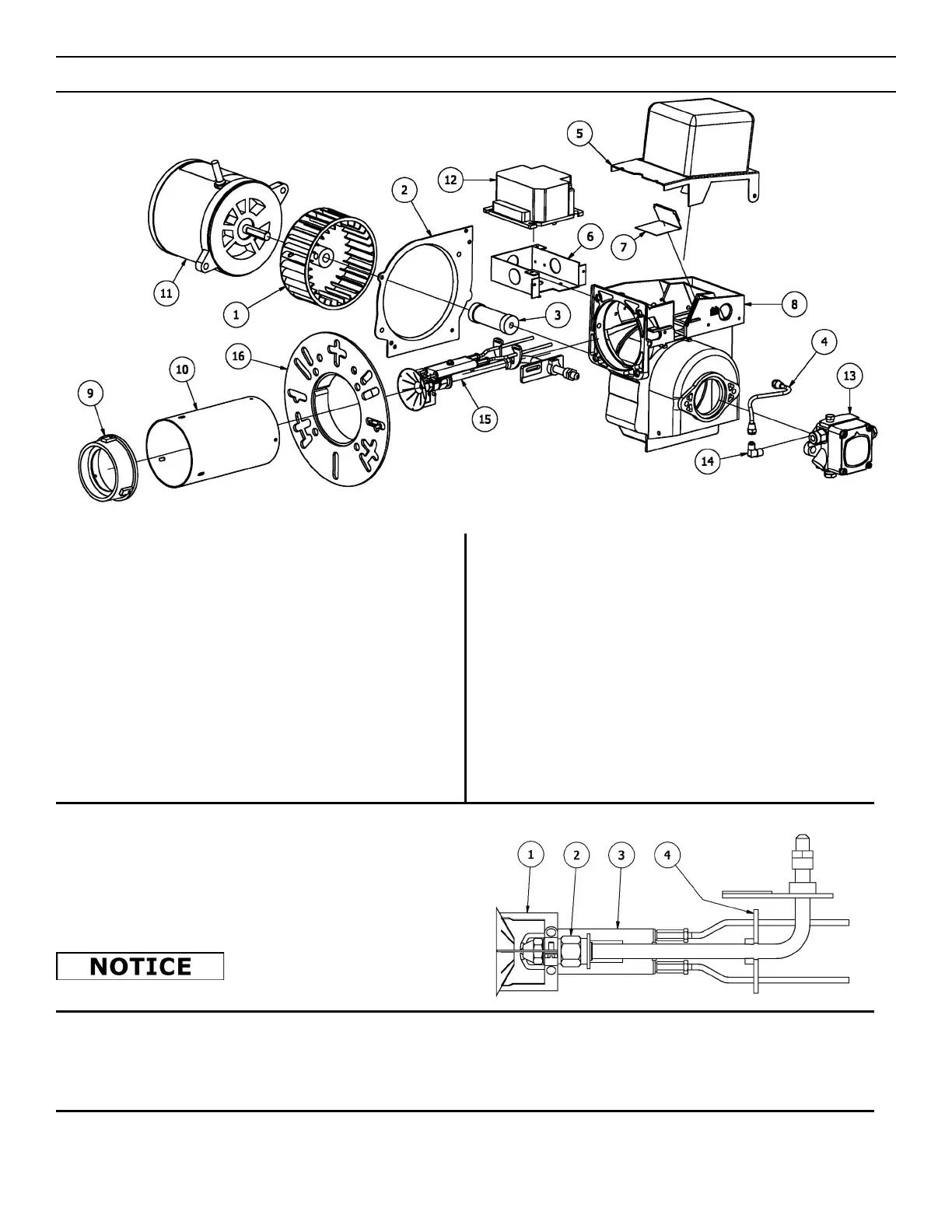

BURNER REPLACEMENT PARTS – MODEL HS
STATE SPECIFICATION NUMBER, BURNER MODEL, PART DESCRIPTION AND PART NUMBER WHEN ORDERING PARTS
No. Description Part No. No. Description Part No.
1 Blower Wheel 21642 Air Tube 15” 21672-049
2 Motor Side Plate 21658 Air Tube 18” 21672-061
3 Coupling 100386 11 Motor, 1/7 HP, 120V/60Hz 20627
4 Oil Line Assembly 6” 14451 12 Oil Primary, 120V, 15 sec. lockout 101343-SER
5 Transformer Assembly 23101-HS 13 Fuel Pump Type A Suntec-1 Stage 13495
6 J-Box 21319 Fuel Pump Type B Suntec-2 Stage 13634
7 Baffle, Static-65° 63266-006 14 Elbow 13494
Baffle, Static-30° 63266-013 15 Gun Assembly 6” 100926-013
8 Housing 100935-001 Gun Assembly 9” 100926-025
9 Air Cone 0.50 – 2.50 GPH 100420 Gun Assembly 12” 100931-037
Air Cone 2.50 – 3.00 GPH 100531-001 Gun Assembly 15” 100931-049
10 Air Tube 6” 21672-013 Gun Assembly 18” 100931-061
Air Tube 9” 21672-025 16 Adjustable Flange (Incl. Gasket) 21724-011
Air Tube 12” 21672-037 17 Tune up Kit (Not Shown) 100950-001
GUN ASSEMBLY DETAILS – MODEL HS
No. Description Part No.
1 Flamelock Assembly 10 Vane 100393-SER
2 Nozzle Adapter 12362
3 Electrode Assembly – All Units* 100989-061
4 Buss Bar Support 13276-002
* Cut contact rods to length in field.
Replacing any gun assembly
components may necessitate
re-calibrating of the Flamelock™ air cone (See page 6)
BLUE ANGEL™ REPLACEMENT AIR TUBE COMBINATIONS
Includes Air Tube, Air Cone and Gun Assembly
Air Tube Combination – 6”……30884-013C Air Tube Combination – 15”……30884-049C
Air Tube Combination – 9”……30884-025C Air Tube Combination – 18”……30884-061C
Air Tube Combination – 12”……30884-037C
