Operation / Installation Manual – FCF 5,000, 9,000, 12,000, 16,000
Page 12

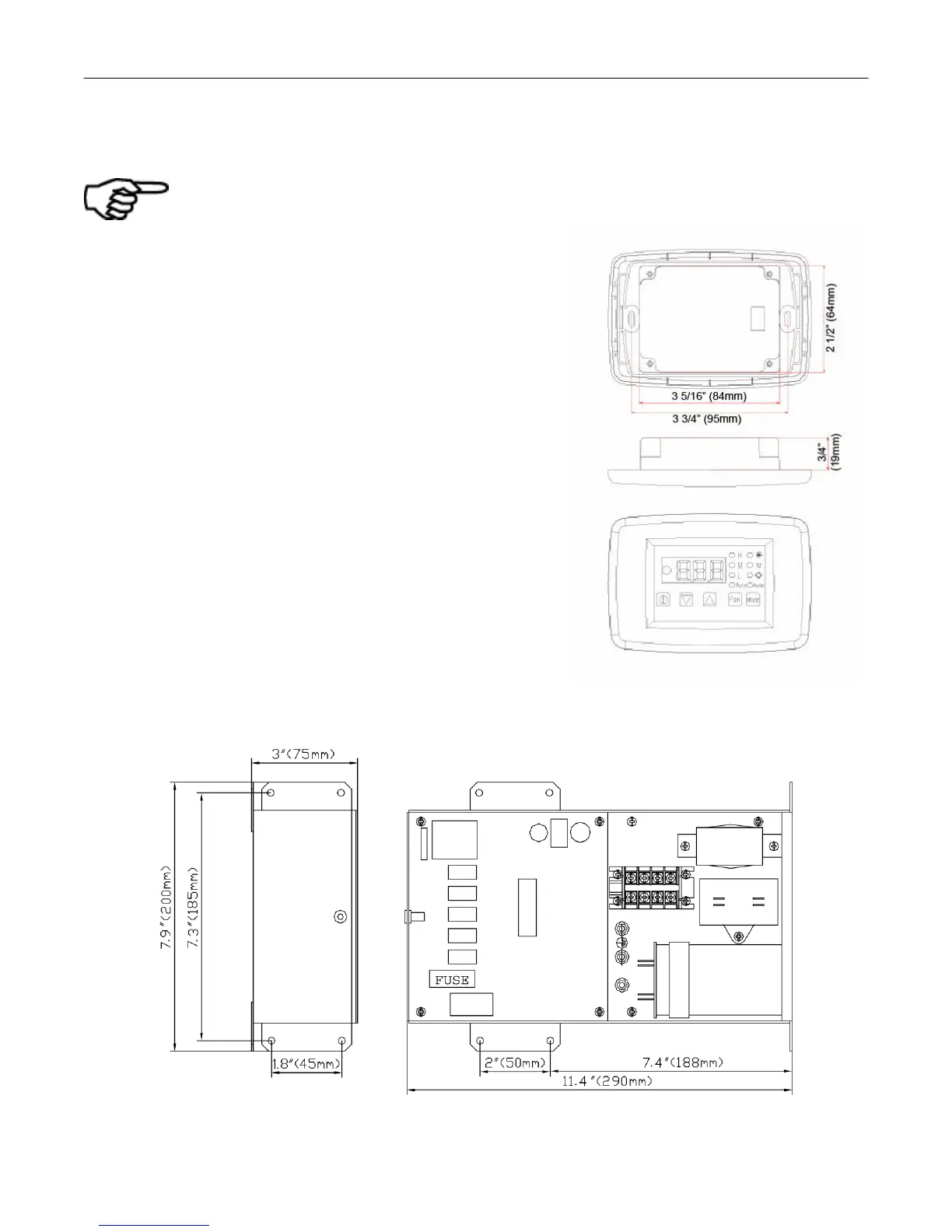

WIRED REMOTE CONTROLLER INSTALLATION
DO NOT turn the unit off and immediately turn it back on. Wait at least 30 seconds for
refrigerant pressures to stabilize.
Before mounting the wired display, consider the location. The display
panel should be mounted on an inside wall, slightly higher than
mid-height of the cabin. The cut out size for the display panel is 2 1/2”
(64mm) wide by 3 5/16” (84mm). Do not mount the display in direct
sunlight, near any heat producing appliances or in a bulkhead where
temperatures radiating from behind the panel may affect
performance. Do not mount the display in the supply air stream. Do
not mount the display above or below a supply or return air grille. Do
not mount the display behind a door, in a corner, under a stairwell or
any place where there is no freely circulating air. Mount the display
within display cable length (custom lengths available) of the air
conditioner. Plug the display cable into the circuit board in the electric
box and into the back of the display panel.
CONTROL BOX INSTALLATION
Mount the control box using four M5 screws.
Mount the control box in a cool dry location leaving plenty of room for access.
