Operation / Installation Manual – FCF 5,000, 9,000, 12,000, 16,000
Page 7
PLACEMENT OF SYSTEM
Selecting a good location for your air conditioner is the most important part of your preparation. Be sure to consider
the size of the area you are cooling, the air distribution needs, and the size of the unit you have chosen. Keeping in
mind that cool air has a tendency to fall; it is highly recommended that you locate the supply air grille as high as

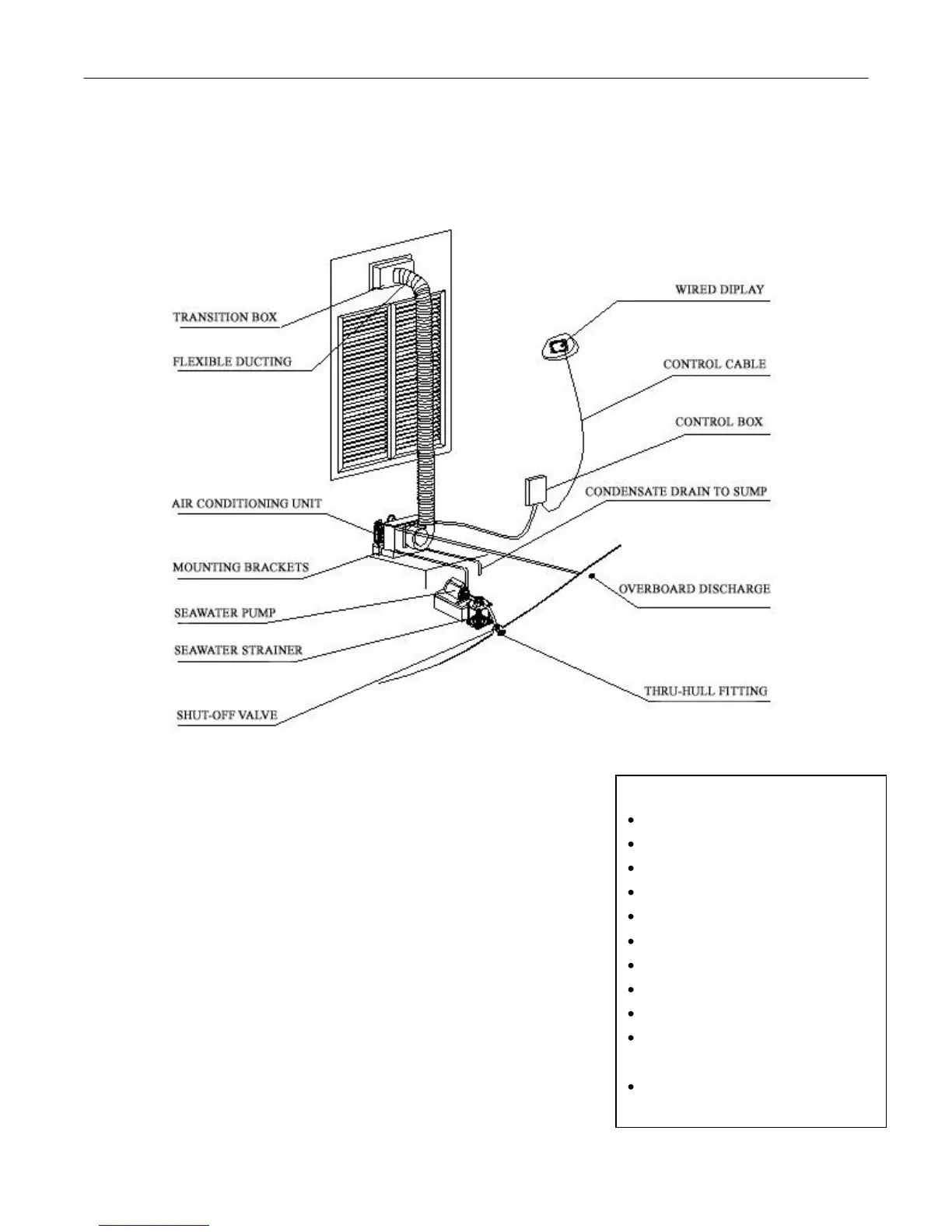

possible in the cabin. See diagram below.
The unit should be installed as low as possible, BUT NEVER IN THE
BILGE OR ENGINE ROOM AREAS, ENSURE THAT THE SELECTED
LOCATION IS SEALED FROM DIRECT ACCESS TO BILGE AND/OR
ENGINE ROOM VAPORS. Installing the unit as low as possible (such as
under a V-berth, dinette seat or bottom of a locker) and ducting the supply
air as high as possible, creates an ideal airflow condition. This type of
installation will prevent short or premature cycling.
The unit should be positioned on a firm, level, horizontal surface and the
condensate drain line should run downward from the unit to a suitable drain
location. Plan all Connections, which must be made including ducting,
condensate drain, and seawater in and out, electrical power connections,
location of control, and seawater pump placement, to assure easy access
for routing and servicing.
Tools required:
Screws drivers
Pliers
Pipe wrench
Wire cutters / crimpers
Drill & 7/8" bit
Jigsaw
Duct tape
Electrical tape
Teflon tape
Bedding compound to seal thru hull
fittings
Hardware to secure unit, pump,
strainer, grilles & control panel
