weinor BiRec MVLED User Manual

BiConnect BiRec MVLED/MLED
Version 4
2020-07-08
Assembly and installation instructions/ Instructions de montage et d’installation
Item number/
We reserve the right to make technical changes/ Sous reserve de modifications techniques
Numéro d’article
116692-0000
Page 5/28
3 Description of device
3.1 Summary of device components

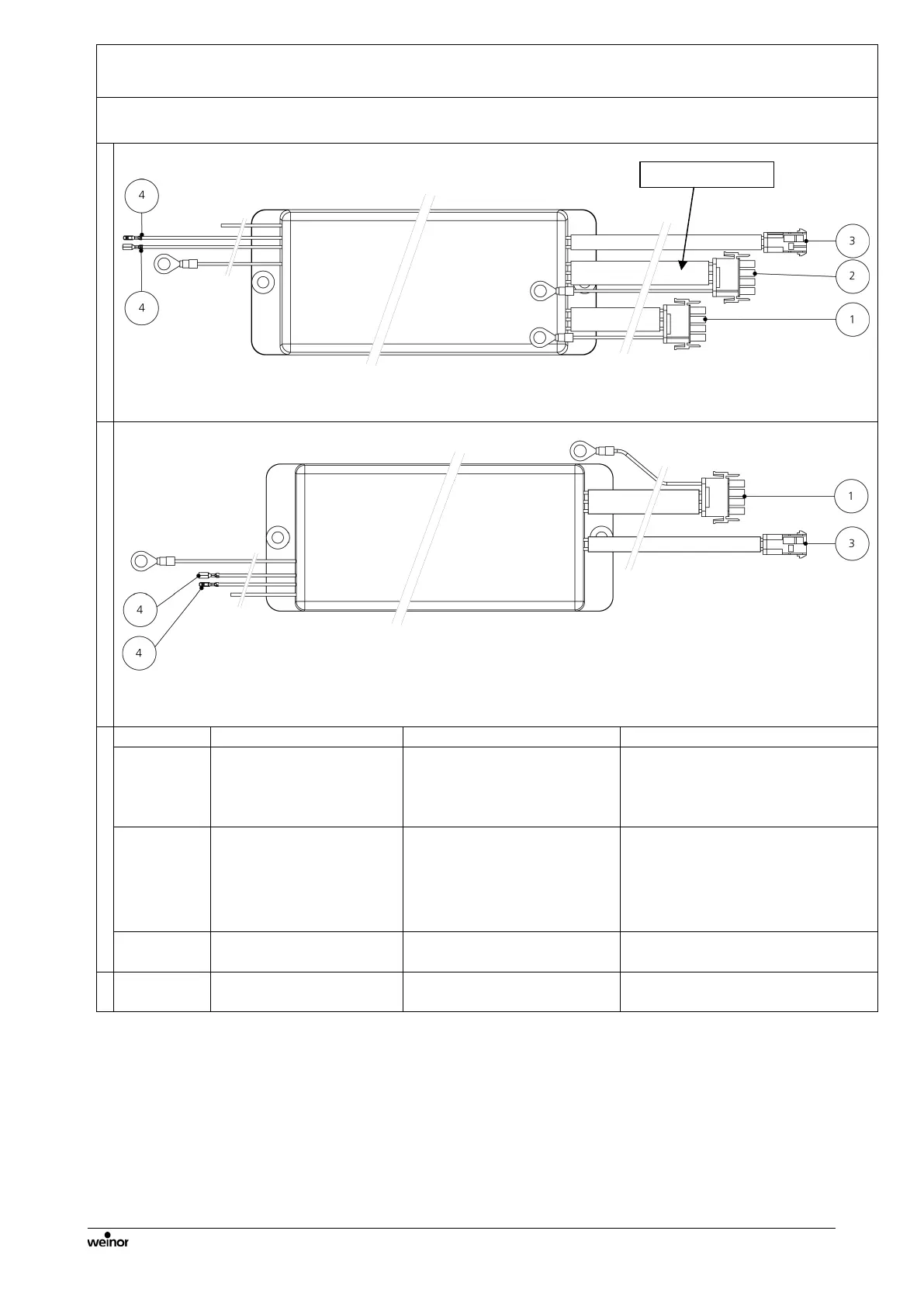

Fig. 1: BiRec MVLED remote-receiver
Fig. 2: BiRec MLED remote-receiver
Item
Connection
Connector
Wire colour
1
Awning motor
AMP female connector, 4-
pole
Blue (N)
Black (UP or DOWN)
Brown (UP or DOWN)
Green/yellow (PE)
2
Valance Plus motor
(with black braided
hose, with BiRec
MVLED only)
AMP female connector, 4-
pole
Blue (N)
Black (UP or DOWN)
Purple (UP or DOWN)
Green/yellow (PE)
3
Mains
AMP male connector, 2-
pole
Blue (N)
Black (L)
4
Light
2 flat plugs
Red
Black
Black braided hose
