Winterhalter PT-M User Manual

English | 3 | Machine description
10 | 89014547; 2021-03 | Operating instructions PT Series
3 Machine description
3.1 Description of function
After the warewasher is switched on, the boiler and the tank are filled and heated up to the operating temperature. Once
the target temperatures are reached, the warewasher is ready for use.
The warewasher is fully automatic with programmes consisting of three steps: Wash, Drain and Rinse.

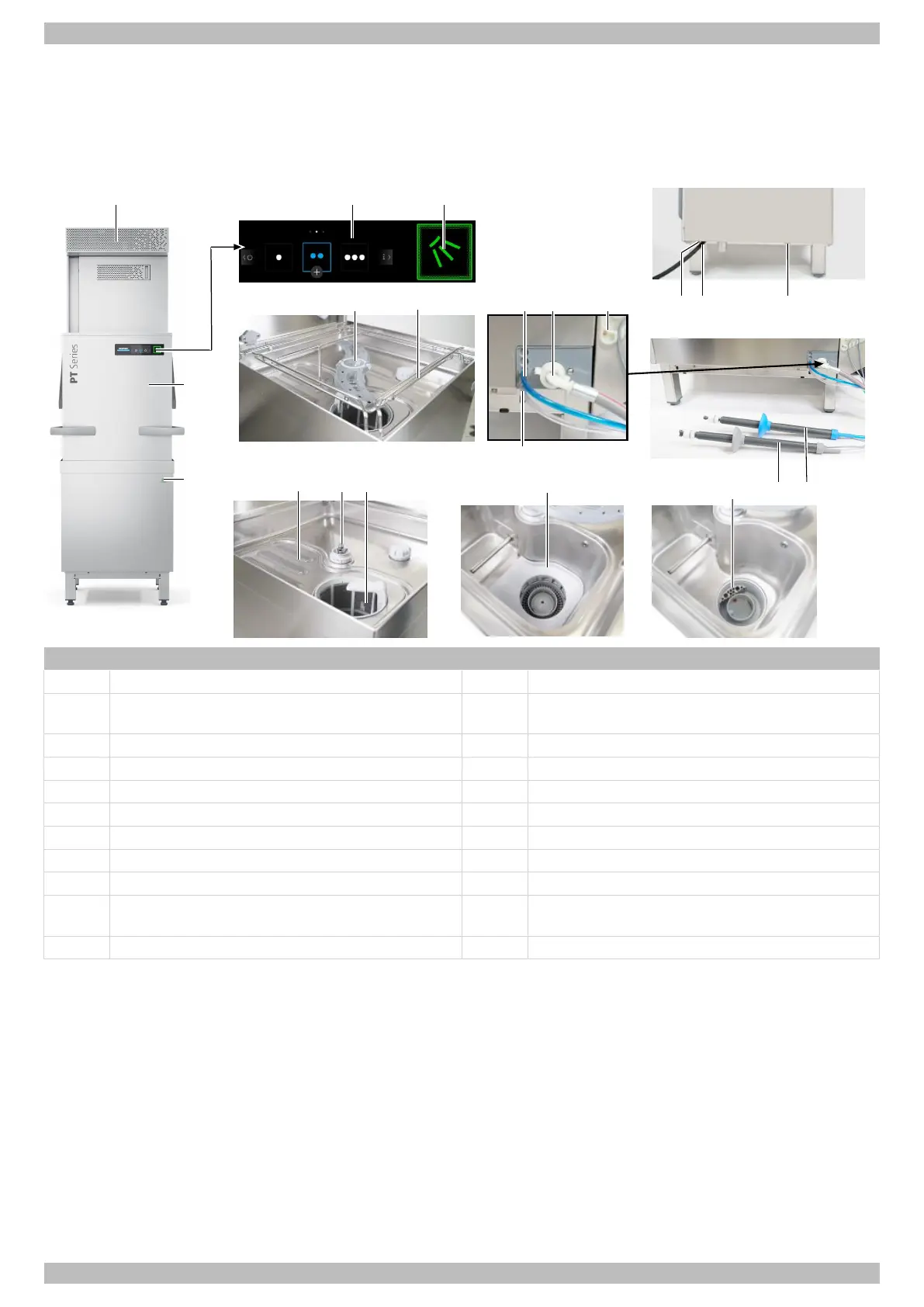

3.2 Overview
1 2 3
4
18
19
16
20
12
15
5
21
13
6
17
7 8 9
10 11
14
Item Name Item Name
1 Energy module (optional) 12 Waste water connection
2 Display 13 Start button (only for automatic hood mechan-
isms)
3 Start button 14 Strainer
4 Hood 15 Wash field bearing
5 Lower wash field 16 Filter cylinder
6 Rack guide 17 Detergent connection
7 Rinse aid connection 18 Filter bottom
8 Inlet water hose 19 Pump protection strainer
9 Multifunction interface 20 Suction tube for detergent (optional)
10 Connection for on-site equipotential bonding sys-
tem
21 Rinse aid suction tube
11 Mains cable

Winterhalter PT-M Specifications

General

Rack size	500 x 500 mm
Water consumption per cycle	2.4 liters
Total connected load	9.5 kW
Protection class	IPX5
Power supply	400 V / 50 Hz / 3~
