4 Freedom SW 3000 Installation Guide
About the Xanbus System
The Xanbus system includes the Freedom SW 3000 Inverter/Charger and
other Xanbus-enabled devices, as shown in Figure 1, “Typical Xanbus
System Diagram”. Each Xanbus-enabled device interacts and
communicates with the other devices on the network, creating a power
system that can be precisely configured to your needs.
The Freedom SW 3000 is the device that typically provides power in a
Xanbus system. The System Control Panel (SCP) provides configuration
and monitoring capability for each device connected to the Xanbus system,
such as the Automatic Generator Start (AGS) and the Freedom SW 3000.
In Figure 1, network connections are represented by dotted lines and
conventional electrical connections are represented by solid lines. Your
system requirements may be more complex than the basic installation
shown in Figure 1. Xantrex recommends that you consult a qualified
installer or electrican to customize your installation to meet your
requirements.

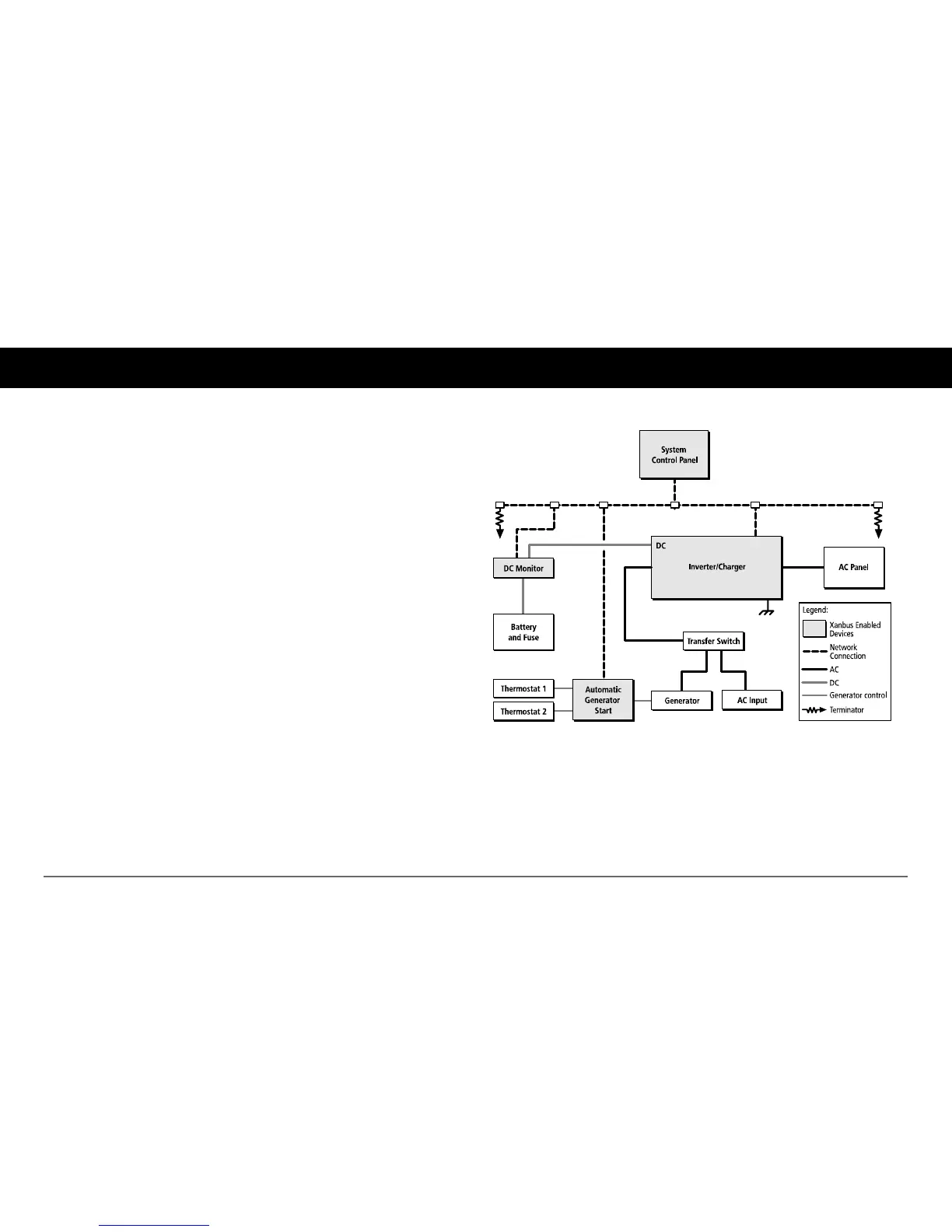

Figure 1 Typical Xanbus System Diagram
AC In
AC Out
