P1.13 Frequency of PULSE min setting Range: 0.00~upper limit of frequency 0.00Hz
P1.14 Max setting of PULSE Range: P1.12~P1.11 10.0K
P1.15 Frequency of PULSE max setting Range: 0.00~upper limit of frequency 50.00Hz
P1.16 Input mode of CI Range: 0, 1 0
When VI, CI and PULSE are selected as open loop frequency setting channel, the relationship between setting and the
present frequency is shown below:

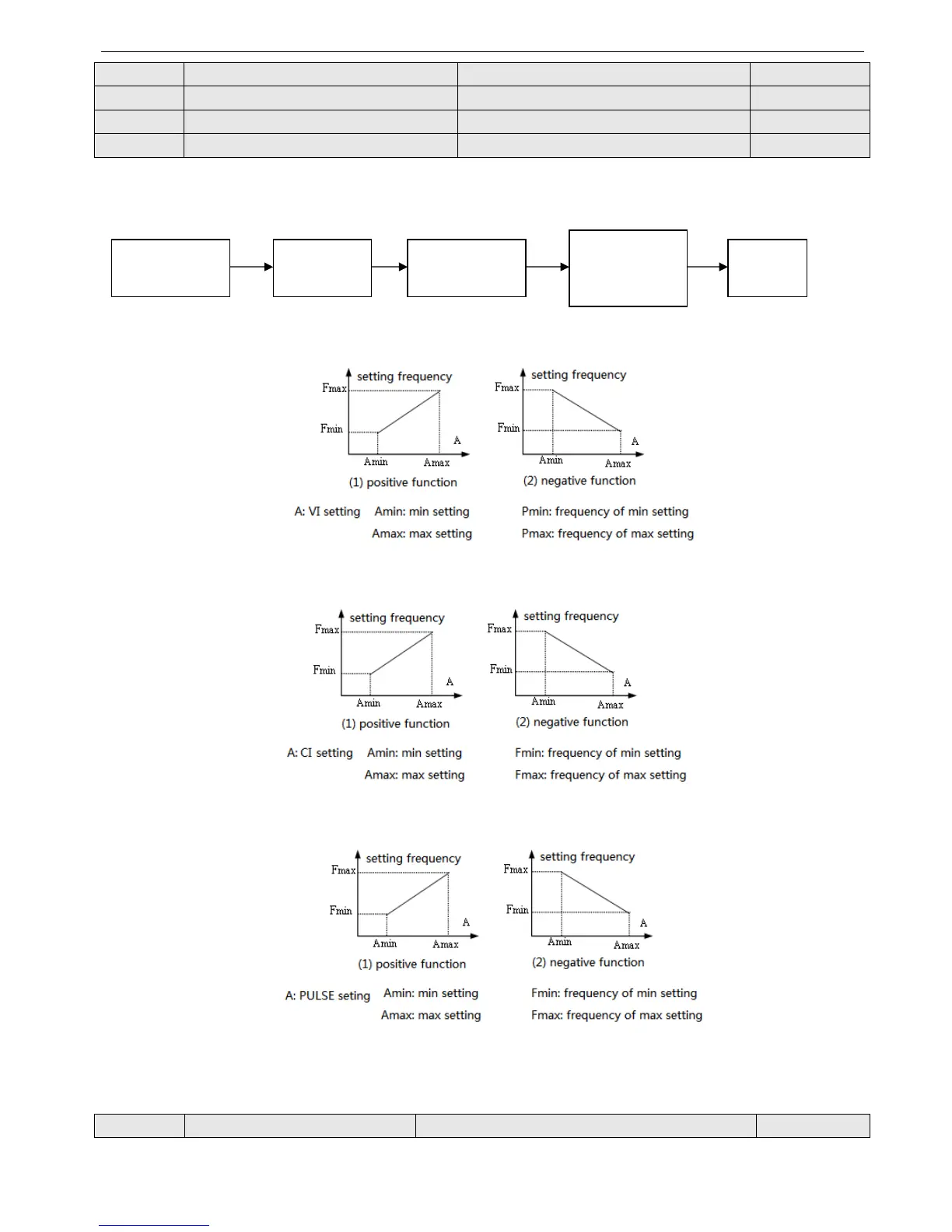

The relationship between VI and setting frequency:
The relationship between CI and setting frequency:
The relationship between PULSE and setting frequency:
4-2-3. Starting and braking parameters (Group P2)
P2.00 Starting mode Range: 0, 1, 2 0
0: Start from the starting frequency
Channel selection
P0.01
Channel filter
P1.00
Channel gain
P1.01/P1.06
Setting frequency
characteristics
curve
Setting
frequency
