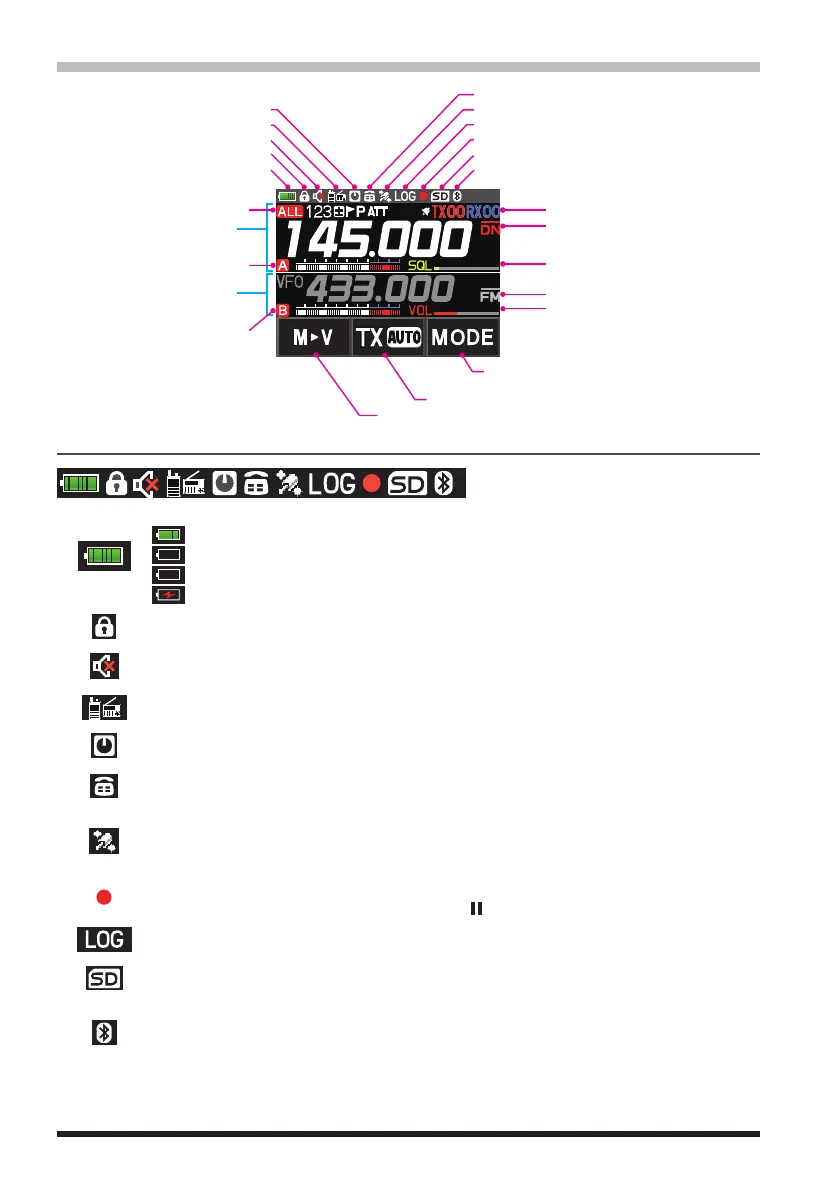

Touch Screen Display
Battery condition
Displays mode
Squelch/Volume Bar Graph (B-band)
Displays operation mode
Squelch/Volume Bar Graph (A-band)
Display of settings such as DG-ID/TONE
Communication Mode
A-band display area
B-band display area
A-band icon
LOCK
Lights when the mute Function is active
Lights when Auto Power Off is active
Lights when GPS Log Function is enabled
Lights when the Voice memory function is enabled
Lights when a microSD memory card is inserted
Lights when Bluetooth function is active
Lights when GPS is acquired
Lights when DTMF function is enabled
Communication mode selection (AMS/DN/VW/FM)
Communication mode selection at AMS (TX AUTO/TX FM/TX DN)
Touch and hold: Moving Memory Data to the VFO register
B-band icon
Lights when AF DUAL Function is enabled
Status Bar
The battery condition is displayed in 8 steps.
: Full battery power
: Battery is depleted. Charge battery.
:
(When blinking) Charge battery immediately.
:
Charging (displayed when the power is ON).
Appears when the lock function is enabled.
Appears when the Mute function for B-band is enabled.
Appears when the AF DUAL function is enabled.
Appears when the APO (Automatic Power-Off) function is enabled.
Appears when the DTMF Autodialer function is activated.
Appears when the Built-in GPS function is activated.
Appears: Satellites are acquired.
Blinks: Satellites cannot be acquired.
Appears when the Voice recording function is activated (About 3 seconds after the
squelch closes, the recording pauses and a “ ” appears.).
Appears when the GPS Log function is enabled.
Appears when a microSD card is inserted.
Appears when the Bluetooth
®
function is activated.
Appears: Bluetooth
®
device is connected.
Blinks: Bluetooth
®
device not connected.
