page 38 MARK-V FT-1000MP Operating Manual
T
UNING
THE
MARK-V FT-1000MP
Tuning is accomplished in several ways, with each
method having its own advantages; they are:
¦
Main & Sub VFO Knob Tuning
¦
Shuttle Jog Tuning
¦
Panel & Microphone Down/Up keys
¦
VFO Channel Stepping

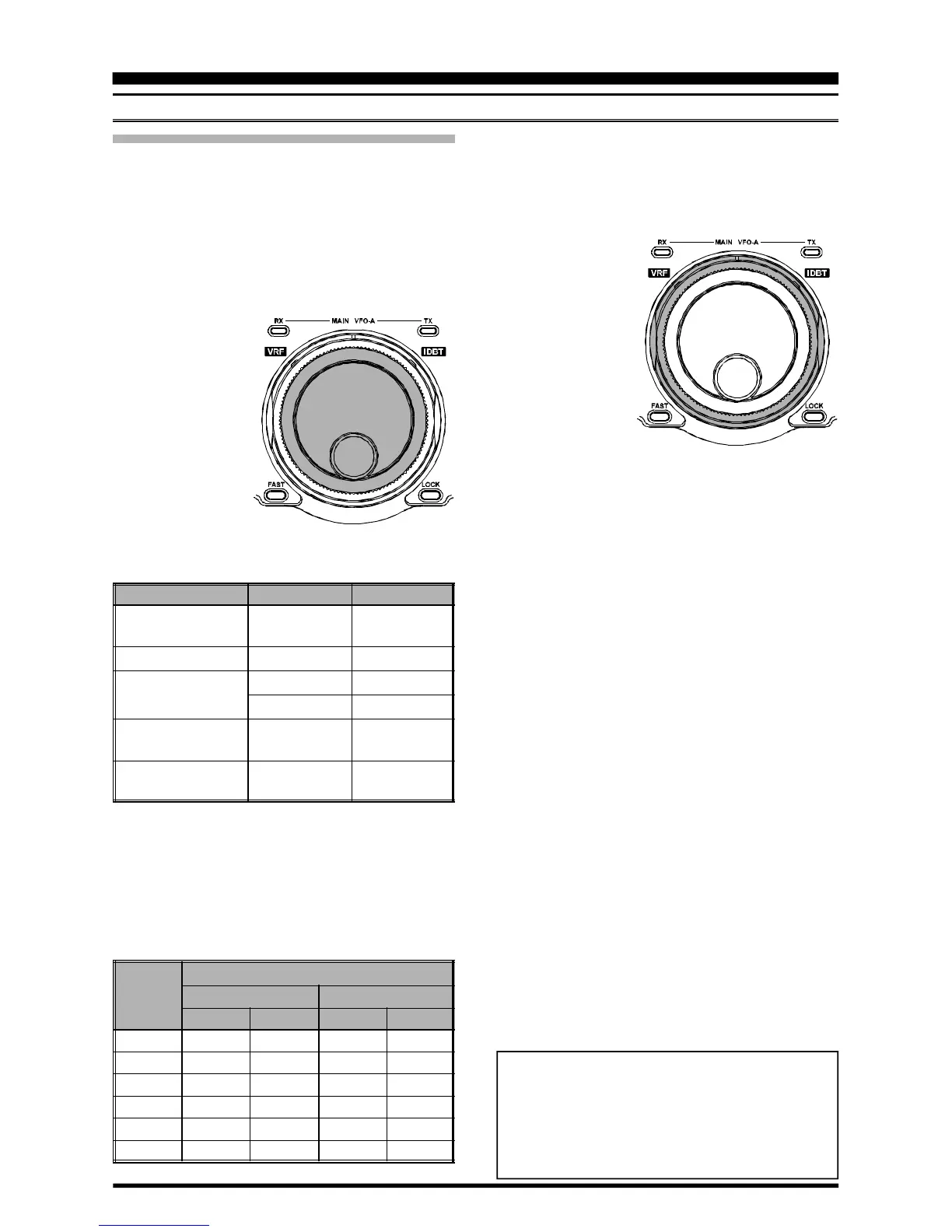

VFO Knob
Rotating the Main
VFO-A knob tunes
the transceiver ac-
cording to the se-
lected tuning step
size and encoder
tuning rate. Both of
these settings are
configured via
menu
selections 1-3
&
1-4
(see page 99). The
table below shows
the available tuning step sizes and their default set-
tings.
O
PERATION
R
ECEIVING
Shuttle Jog
The Shuttle Jog ring is more efficient for large fre-
quency excursions, or whenever QSY requires spin-
ning the VFO knob a lot, while still providing positive
control with a comfortable feel.
Rotating the
Shuttle Jog away
from the center de-
tent in either direction
starts constant tun-
ing. The farther the
Shuttle Jog is
moved from center,
the larger the pro-
gressive frequency
steps (and QSY).
There are 13 preset
frequency steps incrementing through the arc of the
Shuttle Jog (from 10 Hz ~ 100 kHz). The Shuttle Jog
speed (encoder rate) is also configurable from 1 ~ 100
msec. via
menu selection 1-1
on page 99.
Recall that the step size varies as the Shuttle Jog
is turned, while the encoder rate is fixed. The effect of
tuning faster as the Shuttle Jog is rotated actually
comes from jumping to progressively larger tuning in-
crements, as encoder rate remains constant.
FAST Button Operation
By default, the front panel
[
FAST
]
button is a press-
on, press-off type. However, you can change it to a
momentary type by recalling
menu selection 8-0
(see
page 104) and changing the default setting.
For faster dial tuning rates with either the VFO knob
or mic UP/DOWN buttons, press the
[
FAST
]
button
below and to the left of the Main VFO knob (“FAST”
appears). This selects the VFO speed, which can be
switched between 4x (default) and 2x in
menu selection
1-0
(see page 99). This affects the
F per VFO knob
rotation without changing the default tuning step size.
Control
MAIN VFO-A knob
SUB VFO-B knob
Shuttle Jog
DOWN
(
q
)
/UP
(
p
)
Pushbuttons
VRF/MEM CH
CH. Stepping
CLAR
(
Clarifier
)
Tuning Steps
0.625/1.25/2.5/
5/10/20 Hz
13 preset
Normal
w/
[
FAST
]
knob
Normal
0.625/1.25/2.5/
5/10/20 Hz
Default Step
10 Hz
–
100 kHz
1 MHz
10 kHz
10 Hz
0.625 Hz
1.25 Hz
2.5 Hz
5 Hz
10 Hz
20 Hz
Normal
312 Hz
625 Hz
1.25 Hz
2.5 Hz
5 Hz
10 Hz
FAST
3.12 kHz
6.25 kHz
12.5 kHz
25 kHz
50 kHz
100 kHz
Normal
625 Hz
1.25 kHz
2.5 kHz
5 kHz
10 kHz
20 kHz
FAST
6.25 kHz
12.5 kHz
25 kHz
50 kHz
100 kHz
200 kHz
(
X2
)
Encoder Rate
(
X4
)
Encoder Rate
Default
Tuning
Step
F for 1 revolution of VFO knob
