Legend for Figure 12

1. PIN

2. LOWER SHAFT

3. SPLIT PIN

4. UPPER SHAFT

5. HOUSING

6. HORN CONTACT

7. SCREW

8. FASTENER

9. CONNECTOR BRACKET

10. PIVOT BOLT

11. BUSHING

12. NUT

13. GAS SPRING

14. BRACKET

15. CONNECTOR

1. BRACKET

2. SPACER

3. JOINT

4. NUT

5. WASHER

6. SCREW

7. UPPER SHAFT

8. HOUSING

9. PIN

10. LOWER SHAFT

11. GAS SPRING

12. BOLT

13. BUSHING

14. CONNECTOR

15. FASTENER

16. HORN CONTACT

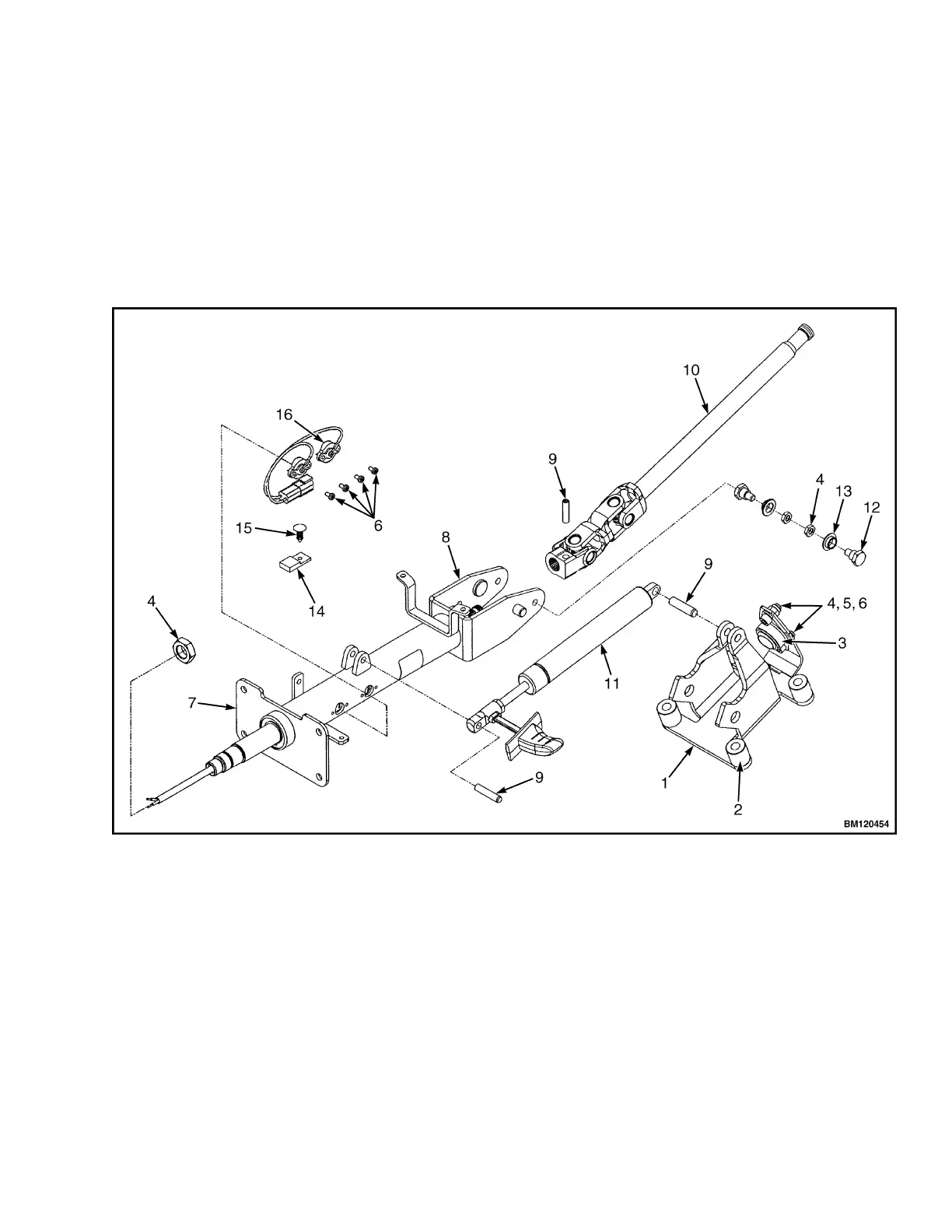

Figure 13. Steering Column Assembly, Lift Trucks Manufactured After January, 2012

0100 YRM 1243 Steering Column
