4. Install two capscrews on rear legs of overhead
guard. Tighten capscrews to 66 N•m (49 lbf ft).
See Figure 21.
5. Connect air intake hose by installing bolts, elbow,
retainer, and grommet to overhead guard rear leg.
See Figure 20.
LED TAIL, BACKUP, AND BRAKE
LIGHTS, REPLACE
These light assemblies are nonrepairable and must
be replaced as an assembly. See section Electrical
System 2200YRM1142 for procedures to replace
these lights.

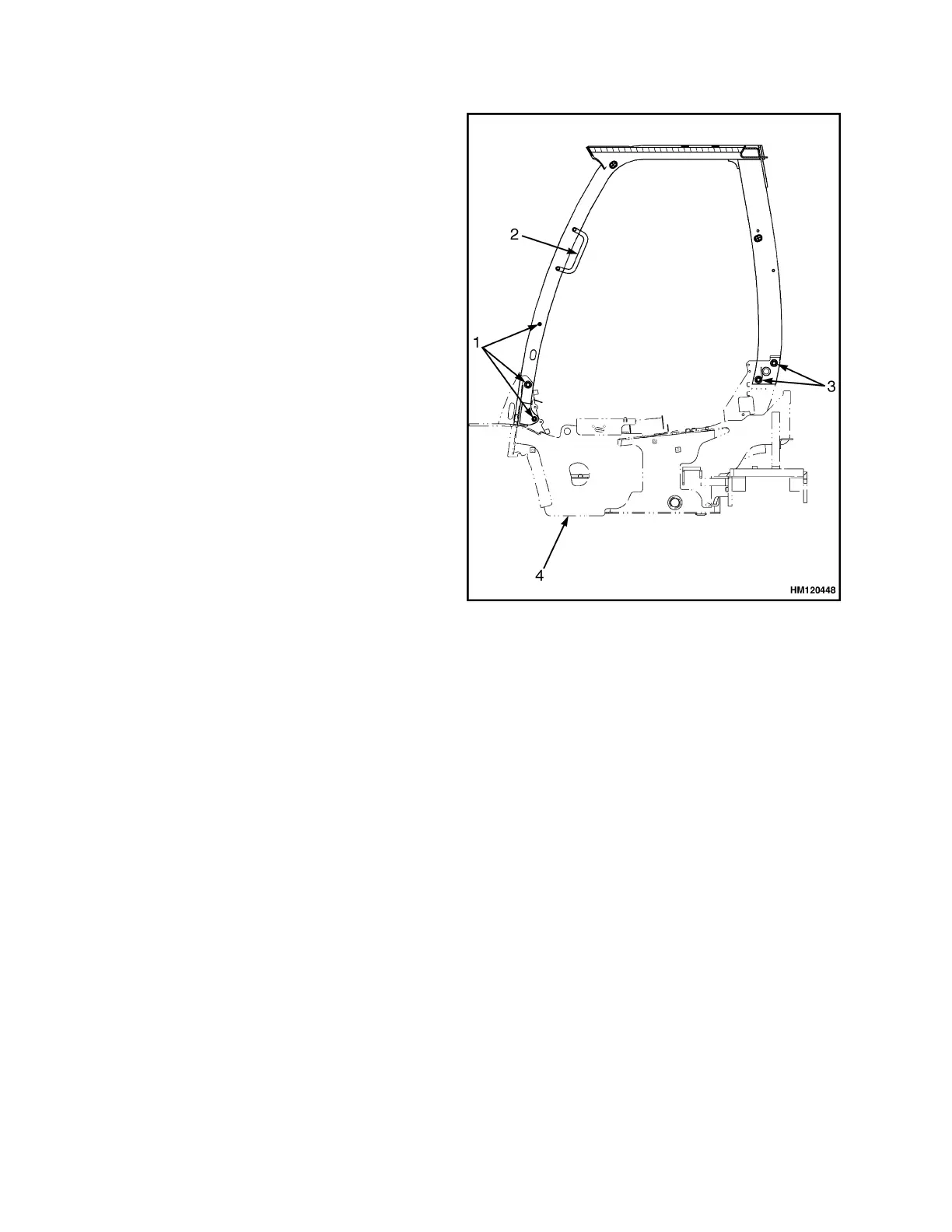

1. CAPSCREWS - FRONT LEGS
2. HANDLE
3. CAPSCREWS - REAR LEGS
4. FRAME
Figure 21. Overhead Guard
Operator Restraint System Replacement
DESCRIPTION
The seat belt, hip restraint brackets, seat and mount-
ing, hood, and latches are all part of operator restraint
system. Each item must be checked to make sure it is
attached securely, functions correctly, and is in good
condition. See Figure 22.
The seat belt, when properly buckled across operator,
will permit slight operator repositioning without activat-
ing locking mechanism.
If truck tips, travels off a dock, or comes to a sudden
stop, locking mechanism will be activated and hold
the operator's lower torso in seat.
A seat belt that is damaged, worn or does not operate
properly will not provide protection when it is needed.
The end of belt must fasten correctly in latch. The
seat belt must be in good condition. Replace seat belt
if damage or wear is seen. See Figure 22.
Operator Restraint System Replacement 0100 YRM 1243
26
