Yale GP100VX User Manual

TOW PIN
Remove and Install For Lift Truck Models
GLP/GDP40VX5/VX6; GLP/GDP45SVX5, GLP/
GDP45VX6; GLP/GDP50-55VX (GP/GLP/
GDP080, 090, 100, 110, 120VX) (F813, G813,
H813)
1. Remove tow pin from counterweight by driving roll
pin out. See Figure 18.
2. Install tow pin into counterweight and install roll
pin.

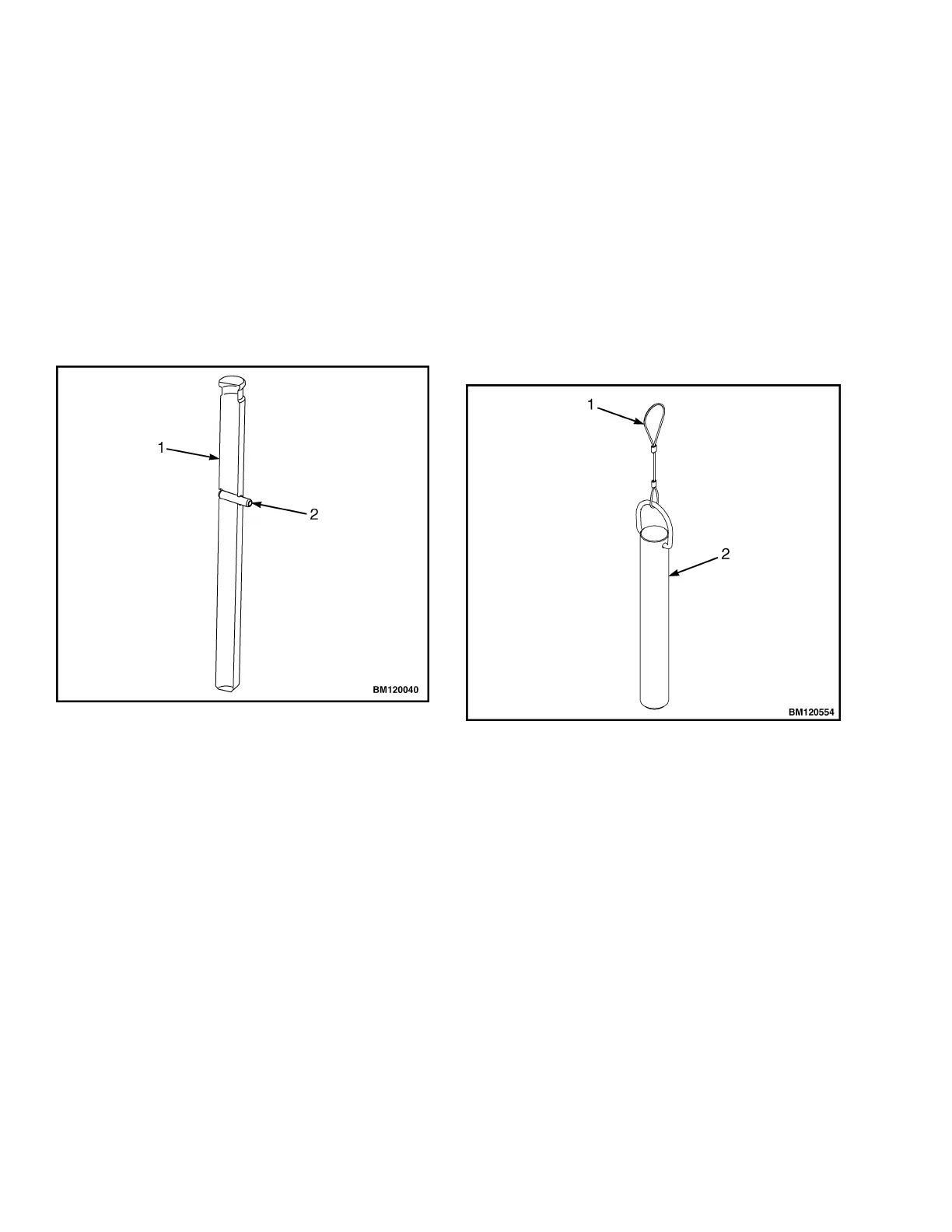

1. TOW PIN
2. ROLL PIN
Figure 18. Tow Pin
Remove and Install For Lift Truck Models
GLC55SVX (GC/GLC80XVBCS, GC/
GLC100VXBCS; GC/GLC120SVX; and GC/
GLC120VXPRS) (E818, F818) and GLP/
GDP40VX5/VX6; GLP/GDP45SVX5, GLP/
GDP45VX6; GLP/GDP50-55VX (GP/GLP/
GDP080, 090, 100, 110, 120VX) (J813)
1. Remove tow pin from counterweight by grasping
wire and pulling tow pin from counterweight. See
Figure 19.
2. Install tow pin into counterweight dropping tow pin
into counterweight.
1. WIRE
2. TOW PIN
Figure 19. Tow Pin
Counterweight Replacement 0100 YRM 1243
24
