See Figure 26 for lift trucks equipped with a GM
4.3L LPG engine and dual hydraulic tanks.
See Figure 28 for lift trucks models GLP/
GDP40VX5/VX6; GLP/GDP45SVX5,GLP/
GDP45VX6, GLP/GDP50-55VX (GP/GLP/GDP080,
090, 100, 110, 120VX) (H813) equipped with a Ku-
bota 3.8L diesel engine, manufactured before Feb-
ruary, 2012.
See Figure 29 for lift trucks models GLP/
GDP40VX5/VX6; GLP/GDP45SVX5,GLP/
GDP45VX6, GLP/GDP50-55VX (GP/GLP/GDP080,
090, 100, 110, 120VX) (H813) equipped with a Ku-
bota 3.8L diesel engine, manufactured after Febru-
ary, 2012.
See Figure 30 for lift truck models GLP/
GDP40VX5/VX6; GLP/GDP45SVX5, GLP/
GDP45VX6; GLP/GDP50-55VX (GP/GLP/GDP080,
090, 100, 110, 120VX) (J813) equipped with a Ku-
bota 3.8L diesel engine.
13. Disconnect engine harness connector from right
hand chassis harness connector.
14. Disconnect ground strap from frame and remove
power distribution module (PDM) from battery
tray. See Figure 34.
15. For lift trucks equipped with either a Cummins
QSB 3.3L, a Cummins 4.5L, or Kubota diesel en-
gines, remove battery from battery tray and re-
move three capscrews from battery tray. Remove
battery tray.
16. For lift trucks equipped with GM 4.3L engine, re-
move three capscrews from battery tray and re-
move battery, battery tray, and Electronic Control
Module (ECM).
17. Loosen hose clamps and disconnect remaining
coolant hoses from radiator and cap them to pre-
vent leakage.
See Figure 25 for lift trucks equipped with a GM
4.3L gas or LPG engine and single hydraulic tank.
See Figure 26 for lift trucks equipped with a GM
4.3L LPG engine and dual hydraulic tanks.
See Figure 27 for lift trucks equipped with a Cum-
mins QSB 3.3L diesel engine.
See Figure 28 for lift trucks models GLP/
GDP40VX5/VX6; GLP/GDP45SVX5,GLP/
GDP45VX6, GLP/GDP50-55VX (GP/GLP/GDP080,
090, 100, 110, 120VX) (H813) equipped with a Ku-
bota 3.8L diesel engine, manufactured before Feb-
ruary, 2012.
See Figure 29 for lift trucks models GLP/
GDP40VX5/VX6; GLP/GDP45SVX5,GLP/
GDP45VX6, GLP/GDP50-55VX (GP/GLP/GDP080,
090, 100, 110, 120VX) (H813) equipped with a Ku-
bota 3.8L diesel engine, manufactured after Febru-
ary, 2012.
See Figure 30 for lift truck models GLP/
GDP40VX5/VX6; GLP/GDP45SVX5, GLP/
GDP45VX6; GLP/GDP50-55VX (GP/GLP/GDP080,
090, 100, 110, 120VX) (J813) equipped with a Ku-
bota 3.8L diesel engine.

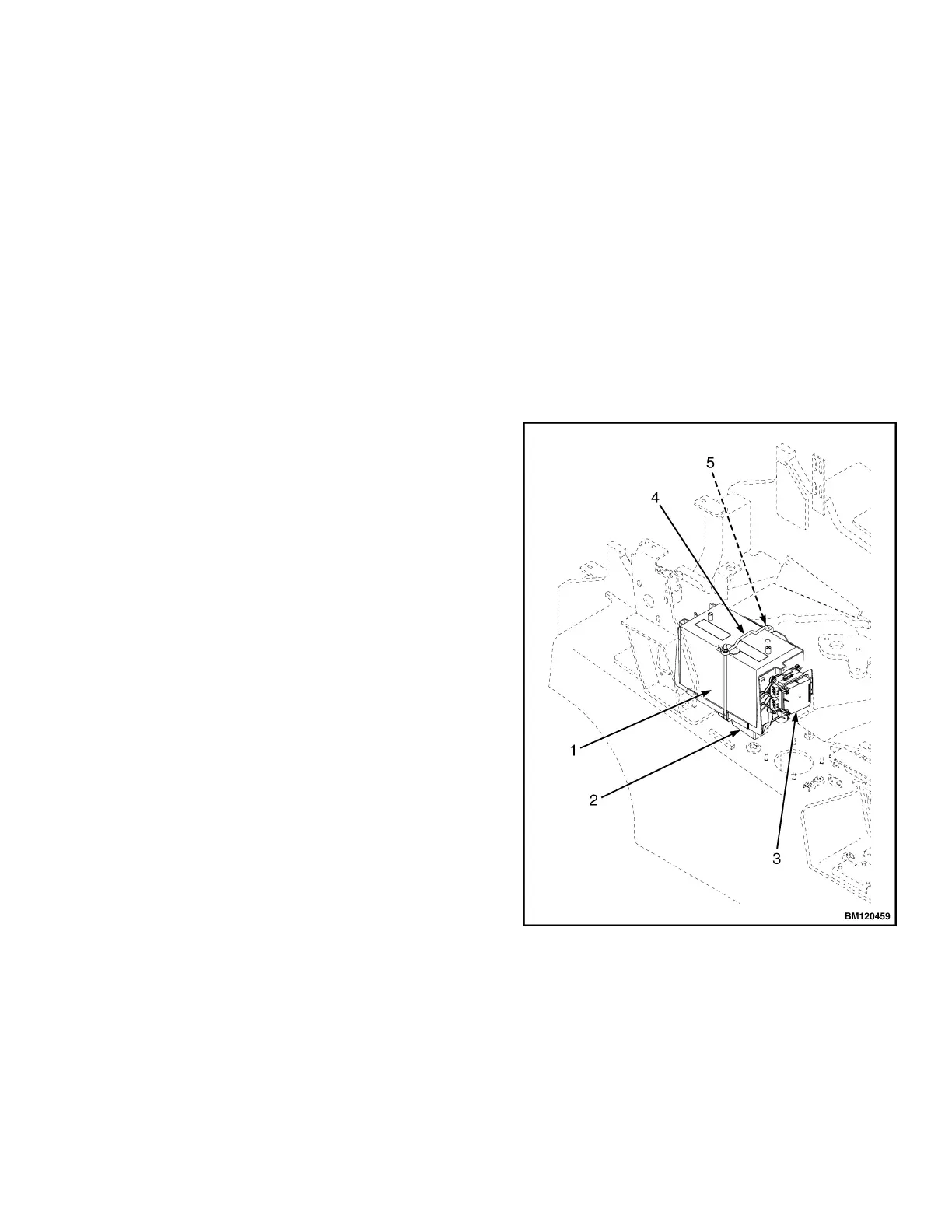

1. BATTERY
2. BATTERY TRAY
3. PDM
4. BATTERY LOCKDOWN BAR
5. GROUND STRAP
Figure 34. Power Distribution Module,
Disconnection
0100 YRM 1243 Engine Replacement
51
