YAMADA NDP-5 series User Manual

11
1
11
1.
..
.4
4 4
4 NDP
NDPNDP
NDP-
--
-15 series
15 series15 series
15 series

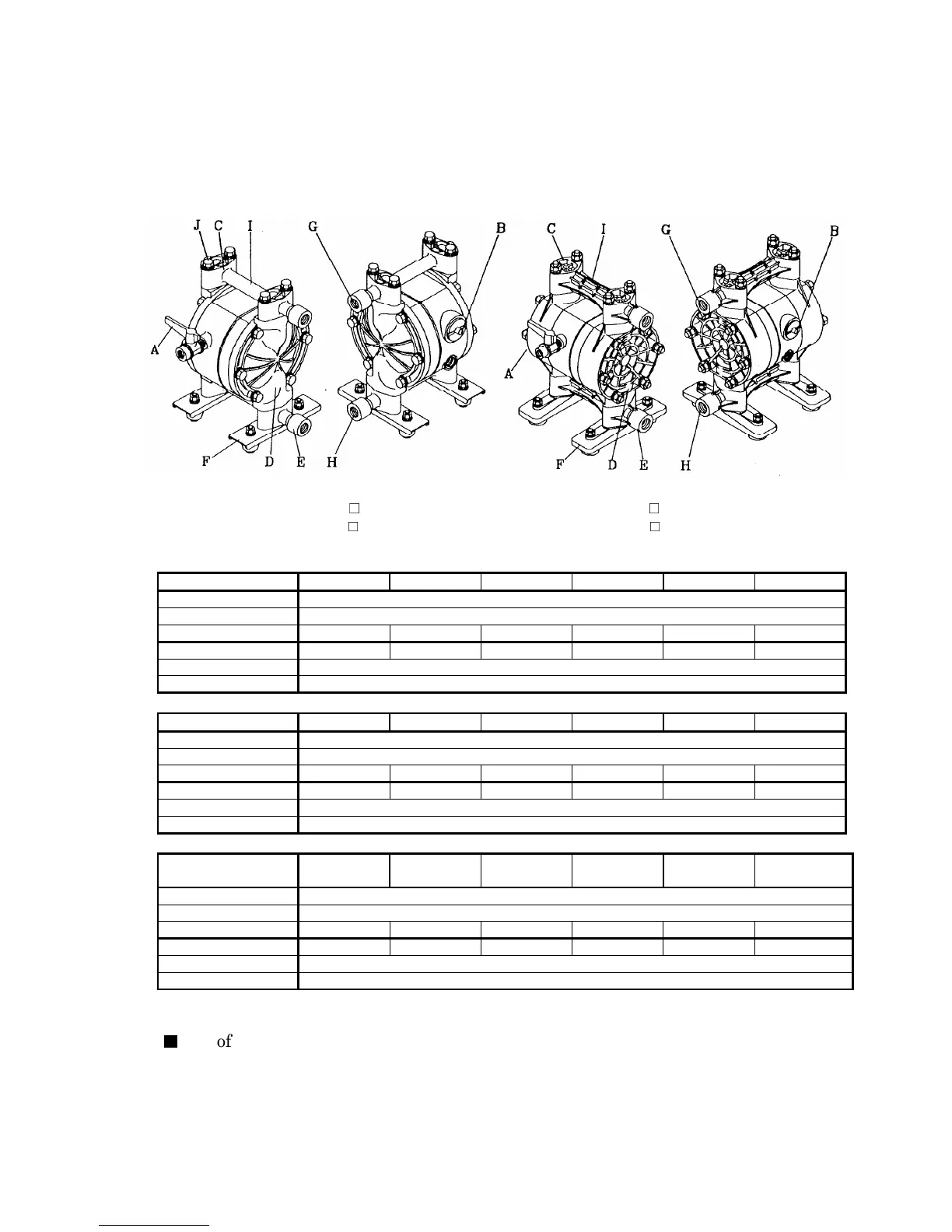

A: Air Valve F: Pump Base
B: Reset Button G: Discharge Port
C: Out Manifold H: Intake Port
D: Out Chamber I: Lift Point
E: In Manifold J: Ground Connection Point
NDP-15-BA □ NDP-15-FP □
NDP-15-BS □ NDP-15-FV □
NDP-15-FDT
•Aluminum type
Type BAC BAN BAT BAH BAS BAE
Switching Portion PPS
Fluid contact Portion ADC12
Diaphragm CR NBR PTFE TPEE TPO EPDM
Ball/O Ring CR/NBR NBR PTFE PTFE EPDM EPDM
Valve Seat A5056
Center Disk A5056
•Stainless-steel type
Type BSC BSN BST BSH BSS BSE
Switching Portion PPS
Fluid contact Portion SCS14
Diaphragm CR NBR PTFE TPEE TPO EPDM
Ball/O Ring CR/NBR NBR PTFE PTFE EPDM EPDM
Valve Seat SUS316
Center Disk SUS316
•Polypropylene type ([ ]: Polyvinylidene fluoride type, [ ]: Acetal type)
Type FPC FPN FPT/FVT
FDT
FPH FPS/FVS FPE/FVE
Switching Portion PPS
Fluid contact Portion PPG [PVDF] [ACETAL]
Diaphragm CR NBR PTFE TPEE TPO EPDM
Flat Valve/O Ring PTFE/NBR PTFE/NBR PTFE PTFE PTFE/EPDM PTFE/EPDM
Valve Seat PPG [PVDF] [ACETAL]
Center Disk PPG (SUS304) [PVDF (SUS304)] [ACETAL(SUS304)]
■
■■
■ List of accessories
List of accessoriesList of accessories
List of accessories
•Operation Manual·························1
•Maintenance Manual·····················1
•Air Valve·····································1
•Accessory Tool······························1
