YAMADA NDP-5 series User Manual

17
1
11
1.9
.9.9
.9 DP
DPDP
DP-
--
-F series
F seriesF series
F series

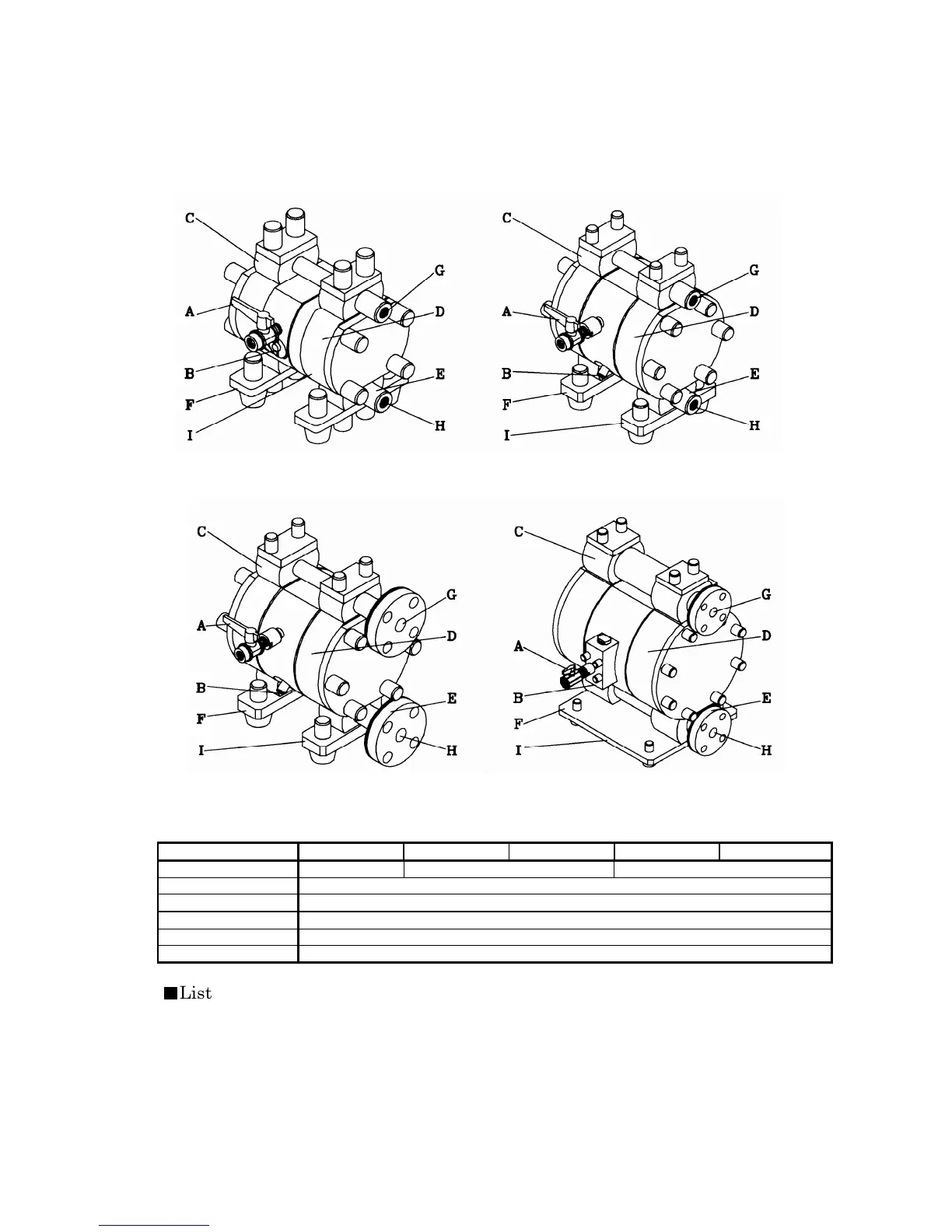

A: Air Valve F: Pump Base
B: Reset Button G: Discharge Port
C: Out Manifold H: Intake Port
D: Out Chamber I: Lift Point
E: In Manifold
DP-5F DP-10F (PT: FEMALE)
DP-20F (PT: FEMALE)
DP-10F (JIS 10K 10A) DP-25F
DP-20F (JIS 10K 20A) DP-38F
•Fluorine resin type
Type 5F 10F 20F 25F 38F
Switching Portion PPS PP PE, PP
Fluid contact Portion PTFE
Diaphragm PTFE
Ball/O Ring PTFE
Valve Seat PTFE
Center Disk PFA (SUS316)
■
■■
■ List of accessories
List of accessoriesList of accessories
List of accessories
•Operation Manual·························1 •Bushing ························· 1 (only DP-25F)
•Maintenance Manual·····················1 •Union (Air Port)··············· 1 (exclude DP-5F)
•Air Valve·····································1 •Union (Exhaust Port)········ 1 (only DP-10F, 20F)
•Silencer ······································1 (exclude DP-5F) •Reinforcement Plate ········ 8 (only Flange Type)
•Accessory Tool ················ 1 (only DP-5F)
