YAMADA NDP-5 series User Manual

16
1
11
1.8
.8.8
.8 NDP
NDPNDP
NDP-
--
-80 series
80 series80 series
80 series

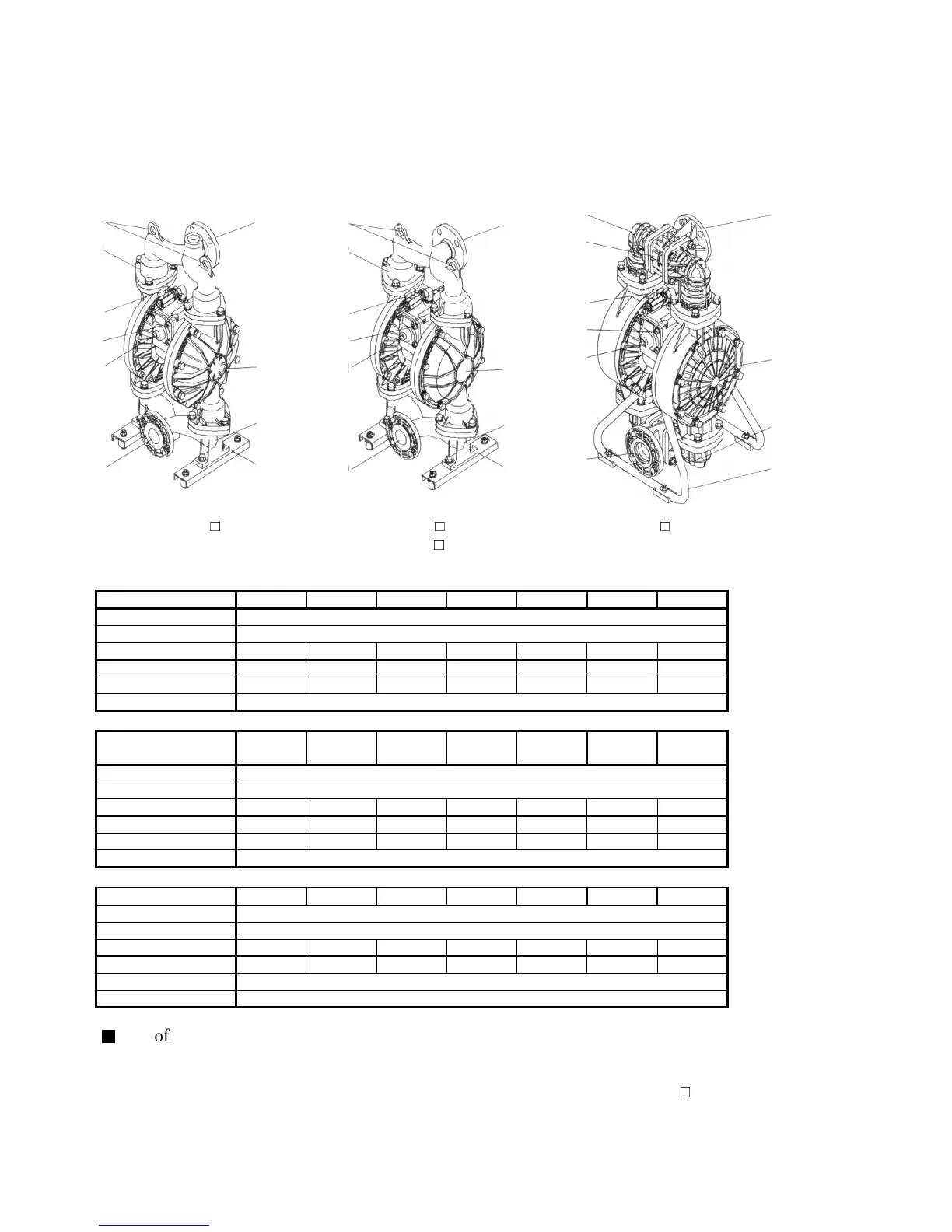

A: Air Valve F: Pump Base(Stand)
B: Reset Button G: Discharge Port
C: Out Manifold H: Intake Port
D: Out Chamber I: Lift Point
E: In Manifold J: Ground Connection Point
NDP-80BA □ NDP-80BS □ NDP-80BP □
NDP-80BF □
•Aluminum type
Type BAC BAN BAE BAV BAT BAH BAS
Switching Portion ADC12
Fluid contact Portion ADC12
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR NBR EPDM FPM PTFE PTFE EPDM
Valve Seat CR NBR EPDM FPM A5056 TPEE TPO
Center Disk A5056
•Stainless-steel type ([ ]: Cast iron type)
Type BSC
[BFC]
BSN
[BFN]
BSE
[BFE]
BSV
[BFV]
BST
[BFT]
BSH
[BFH]
BSS
[BFS]
Switching Portion ADC12
Fluid contact Portion SCS14
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR NBR EPDM FPM PTFE PTFE EPDM
Valve Seat CR NBR EPDM FPM SUS316 TPEE TPO
Center Disk SUS316
•Polypropylene type
Type BPC BPN BPE BPV BPT BPH BPS
Switching Portion ADC12
Fluid contact Portion PPG
Diaphragm CR NBR EPDM FPM PTFE TPEE TPO
Ball/O Ring CR/NBR NBR EPDM FPM PTFE PTFE EPDM
Valve Seat PP
Center Disk PPG (SCS13)
■
■■
■ List of accessories
List of accessoriesList of accessories
List of accessories
•Operation Manual ························ 1
•Maintenance Manual ···················· 1
•Bolt ··········································· 4 (for securing the pump with the cushions, excluding BP □ type.)
E
A
B D
F
G
H
J
C
I
A
B D
E
F
G
H
J
C
I
A
B D
E
F
G
H
J
C
I
