3.3 Connecting the ground wire
3.3 Connecting the ground wire 3.3 Connecting the ground wire
3.3 Connecting the ground wire
a) When installing the pump, be sure to connect the
ground wire at the specified position, see relevant
fig. 3.3.
b) Also connect ground wires to peripheral equipment and
piping.
c) Use 2.0mm
2
minimum ground wire.

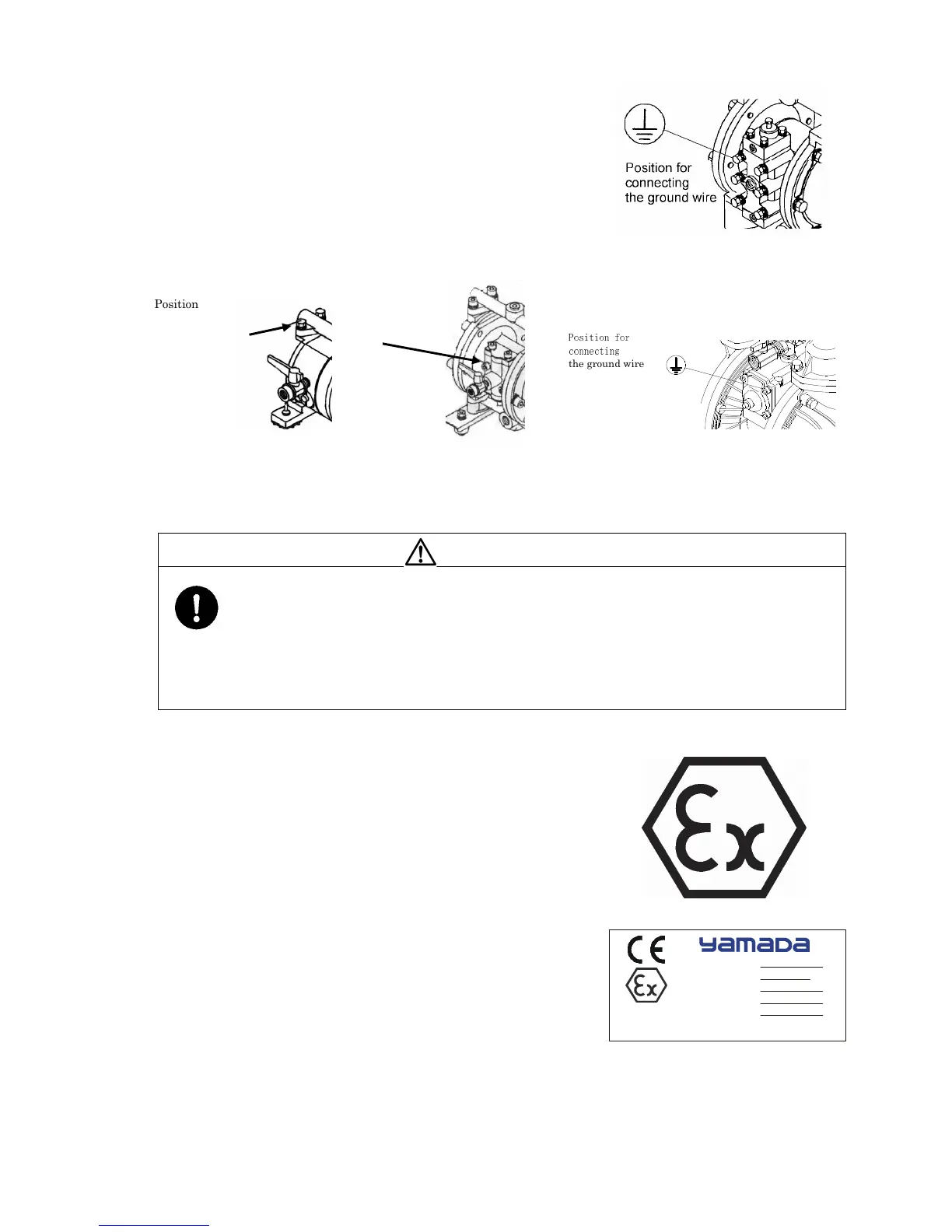

Fig. 3.3.a type 20/25
Fig. 3.3.b type 05/10/15 Fig. 3.3.c type dp10 Fig. 3.3.d type 40/50/80
WARNING
WARNINGWARNING
WARNING
•Be sure to connect ground wires to the connected piping and any other connected equipment.
For details, see the applicable operating caution on p. 4,5 and 6.
When the pump is operated without a ground wire or otherwise not properly grounded,
friction between parts and abrasion caused by some fluids flowing inside the casing may
generate static electricity. Also, depending on the type of fluid being pumped and the
installation environment (such as gases in the air or the surrounding fixtures), it may be a
cause of fire or electric shock.
3.3
3.33.3
3.3.1.
.1..1.
.1. Use in potentially explosive atmospheres
Use in potentially explosive atmospheresUse in potentially explosive atmospheres
Use in potentially explosive atmospheres
1. Your pump can be used in potentially explosive atmospheres if the
symbol of Fig. 3.3.1. is visible on the identification plate. Below the
symbol is indicated what zones and equipment group is applicable.
The maximum allowable surface temperature is indicated on the
type plate Fig. 3.3.2.
Fig. 3.3.1.
2. Always connect a ground wire, which must be attached to
the pump. When removing the pump from the system,
remove the ground wire at last. When installing the pump
to the system, install the ground wire first.
3. Use 2.0mm
2
minimum ground wire.
Fig. 3.3.2.
Position for
connecting
the ground wire
Position for
connecting the
ground wire
Position for
connecting the
ground wire
PUMP TYPE
MAX. AIR PRESS. MPa
MODEL NR.
SERIAL NR.
PROD. YEAR
AQUAMARIJNSTRAAT 50 HENGELO (NL)
II2GDIIB/IIC95°C
YE ATEX0580V01X
