INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-16.)
EAU12870
Shift pedal (XVS650)
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12880
Shift pedal (XVS650A)
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
NOTE:
Use your toes or heel to shift up and
your toes to shift down.

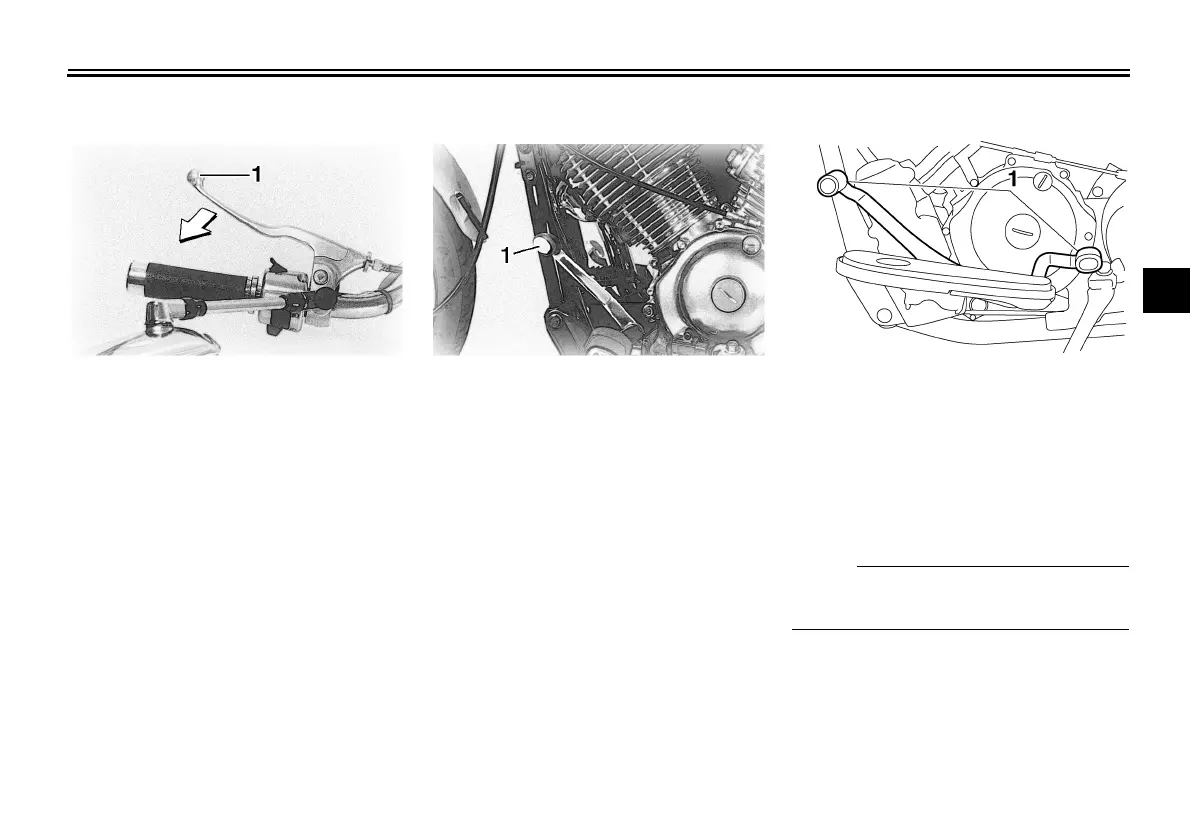

1. Clutch lever 1. Shift pedal 1. Shift pedal
U5SC21E0.book Page 7 Wednesday, May 19, 2004 11:41 AM
