PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360
Front wheel
EAU24600
To remove the front wheel
WARNING
EWA10820
● It is advisable to have a Yamaha
dealer service the wheel.
● Securely support the motor-
cycle so that there is no danger
of it falling over.
1. Disconnect the speedometer ca-
ble from the front wheel.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle.
3. Lift the front wheel off the ground
according to the procedure on
page 6-31.
4. Pull the wheel axle out, and then
remove the wheel.
CAUTION:
ECA11070
Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise the
brake pads will be forced shut.
EAU24932
To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the pro-
jections mesh with the slots.

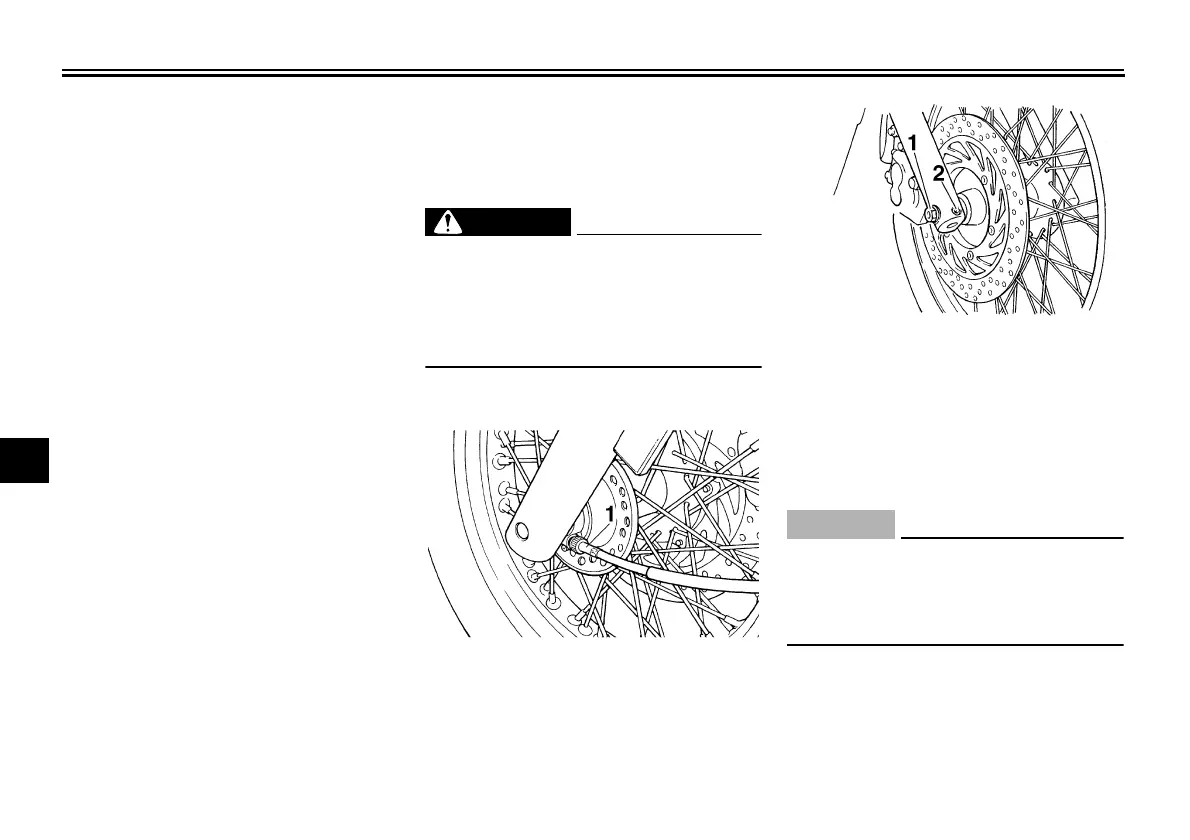

1. Speedometer cable
1. Wheel axle
2. Front wheel axle pinch bolt
U5SC21E0.book Page 32 Wednesday, May 19, 2004 11:41 AM
