PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU23524
Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located behind panel B. (See
page 6-5.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

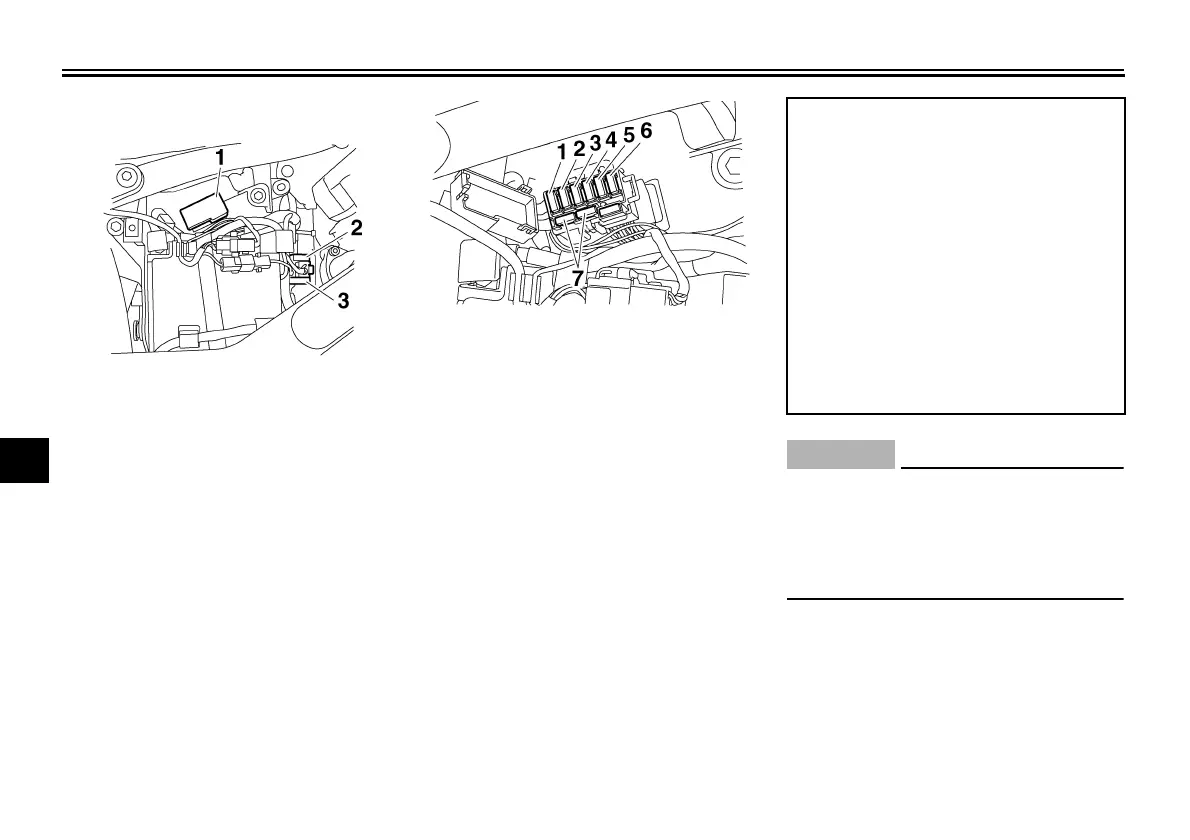

1. Fuse box
2. Main fuse
3. Spare main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Carburetor heater fuse
5. Parking lighting fuse (for XVS650A only)
6. Backup fuse (for odometer and immobilizer
system) (for XVS650A only)
7. Spare fuse
Specified fuses:
Main fuse:
30.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Headlight fuse:
15.0 A
Carburetor heater fuse:
15.0 A
Backup fuse:
XVS650A 10.0 A
Parking lighting fuse:
XVS650A 10.0 A
U5SC21E0.book Page 28 Wednesday, May 19, 2004 11:41 AM
