INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU12890

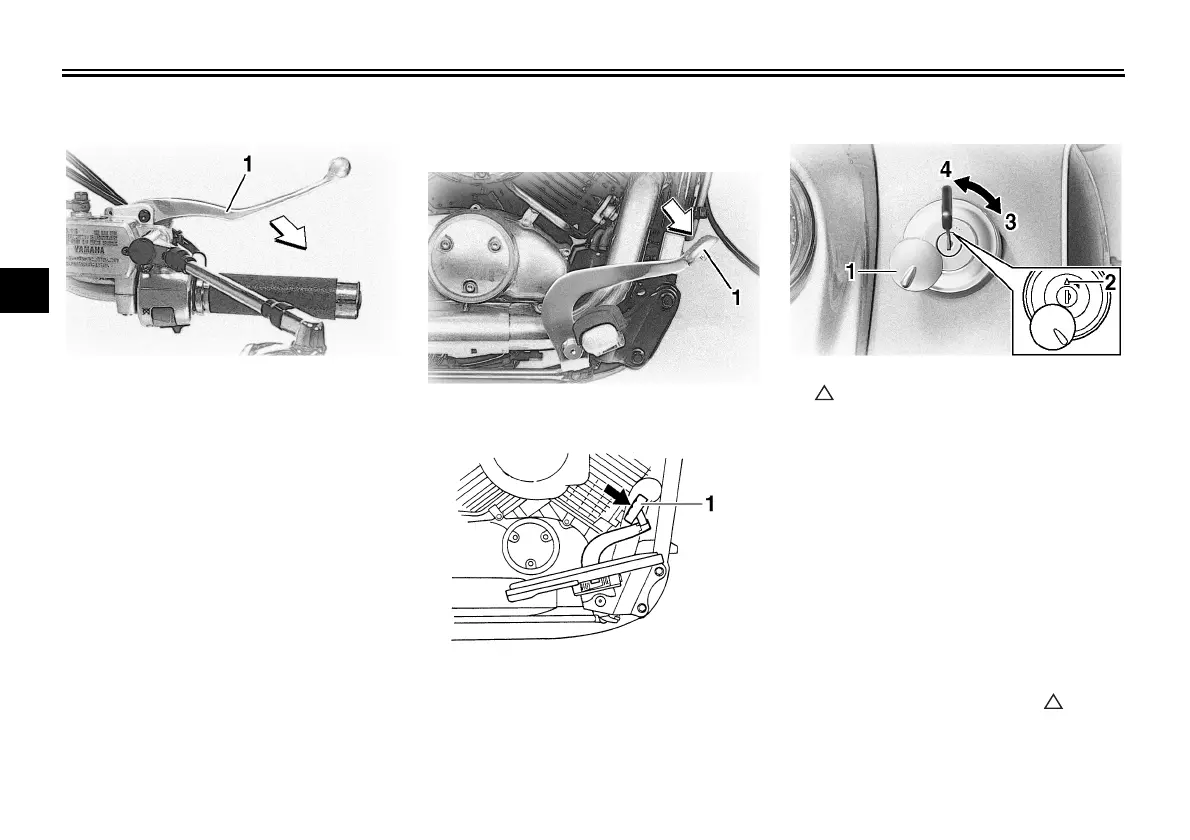

Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal
XVS650
XVS650A
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13120
Fuel tank cap
To remove the fuel tank cap
Slide the lock cover open, insert the key
into the lock, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock and with the “” mark
facing forward.
1. Brake lever
1. Brake pedal
1. Brake pedal
1. Fuel tank cap lock cover
2. “” mark
3. Unlock.
4. Lock.
U5SC21E0.book Page 8 Wednesday, May 19, 2004 11:41 AM
