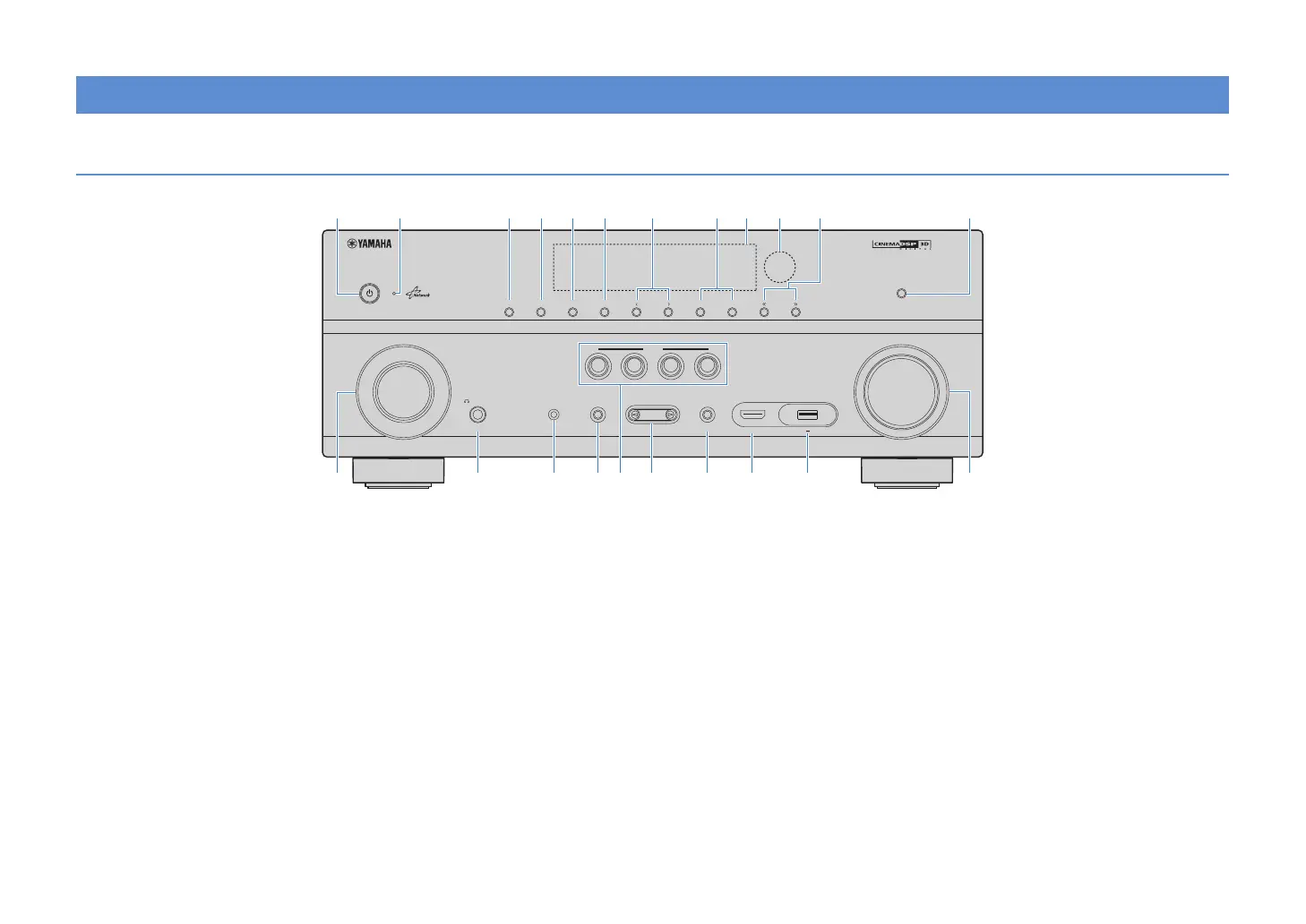

Front panel (RX-V779)
1 MAIN ZONE z key
Turns on/off (standby) the unit.
2 Standby indicator
Lights up when the unit is in standby mode under any of the
following conditions.
• HDMI Control is enabled (p.110)
• Standby Through is enabled (p.111)
• Network Standby is enabled (p.112)
• An iPod is being charged (p.67)
3 ZONE 2 key
Enables/disables the audio output to Zone2 (p.85).
4 ZONE CONTROL key
Changes the zone (main zone or the Zone2) that is controlled
by the keys and knobs on the front panel (p.85).
5 INFO (WPS) key
Selects the information displayed on the front display (p.90).
Enters the wireless network connection setup (WPS push
button configuration) by holding down for 3 seconds (p.47).
6 MEMORY key
Registers FM/AM radio stations as preset stations (p.62).
7 PRESET keys
Select a preset FM/AM radio station (p.62).
8 FM and AM keys
Switch between FM and AM (p.61).
9 Front display
Displays information (p.11).
0 Remote control sensor
Receives remote control signals (p.5).
A TUNING keys
Select the radio frequency (p.61).
B PURE DIRECT key
Enables/disables Pure Direct (p.60).
C INPUT knob
Selects an input source.
D PHONES jack
For connecting headphones.
E YPAO MIC jack
For connecting the supplied YPAO microphone (p.36).
F TONE CONTROL key
Adjusts the high-frequency range and low-frequency range
of output sounds (p.92).
G SCENE keys
Select the registered input source, sound program, and
various settings with one touch. Also, turns on the unit when
it is in standby mode (p.54).
H PROGRAM keys
Select a sound program or a surround decoder (p.55).
I STRAIGHT key
Enables/disables the straight decode mode (p.59).
J VIDEO AUX (HDMI IN) jack
For connecting a device, such as a camcorder and a game
console (p.30).
K USB jack
For connecting a USB storage device (p.70) or an iPod
(p.67).
L VOLUME knob
Adjusts the volume.
Part names and functions
INFO (WPS)ZONE 2
ZONE CONTROL
MEMORY
PRESET
FM AM
TUNING
CONTROL
TV
BD
DVD
NET
RADIO
INPUT
SCENE
MAIN ZONE
PHONES
SILENT
CINEMA
(CONNECT)
STRAIGHT
PURE DIRECT
HDMI IN
5V 1A
VIDEO
VOLU ME
AUX
TONE
PROGRAM
YPAO MIC
:9 B2 34561 78 A
C
LF
EDHIJ KG
