Yamaha CD-S2100 Service Manual

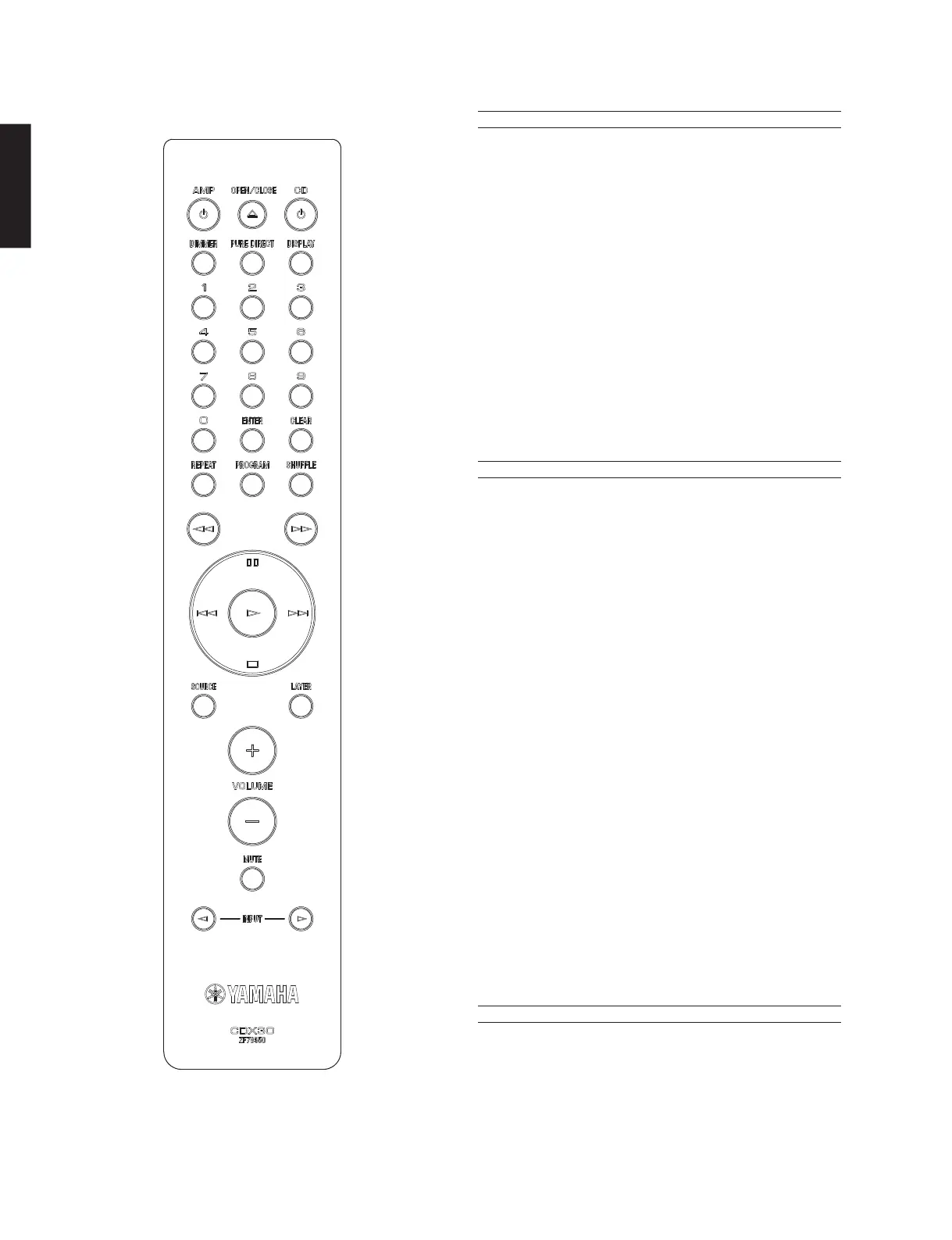

■ REMOTE CONTROL PANEL
CDX30
■ SPECIFICATIONS /
参考仕様
■ Audio Section /
オーディオ部
Output Level /
出力レベル
(1 kHz, 0 dB)
SA-CD / CD .......................................................................2.0 ±0.4 V
Signal to Noise Ratio /
信号対雑音比
(IHF-A network) (1 kHz, 0 dB)
SA-CD / CD .............................................................. 116 dB or more
Dynamic Range /
ダイナミックレンジ
(1 kHz, 0 dB)
SA-CD ...................................................................... 110 dB or more
CD ............................................................................ 100 dB or more
Total Harmonic Distortion /
全高調波歪率
(1 kHz, 0 dB)
SA-CD / CD ...............................................................0.002 % or less
Frequency Response /
周波数特性
(1 kHz, 0 dB)
SA-CD ............................................................2 Hz to 50 kHz (-3 dB)
CD ..............................................................................2 Hz to 20 kHz
Playback Frequency Range /
再生周波数帯域
...................................................................................2 Hz to 96 kHz
■ Input/Output /
入出力部
Digital Input /
デジタル入力
(DIGITAL IN)
OPTICAL ....................................................................................x 1
COAXIAL ....................................................................................x 1
USB (type B, 2.0 compliant) ......................................................x 1
Support Audio Sample Rate /
対応サンプリング周波数
............................................. 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Word Depths /
対応ビット長
................................................................................... 16 bit / 24 bit
Digital Output /
デジタル出力
(DIGITAL OUT)
OPTICAL ....................................................................................x 1
COAXIAL ....................................................................................x 1
Support Audio Sample Rate /
対応サンプリング周波数
............................................. 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Word Depths /
対応ビット長
................................................................................... 16 bit / 24 bit
Audio Output /
オーディオ出力
ANALOG OUT (unbalanced) ..........................................x 2 ch (L/R)
BALANCED OUT ............................................................x 2 ch (L/R)
Remote Input/Output /
リモート入出力
REMOTE IN ...................................................................................x 1
REMOTE OUT ...............................................................................x 1
System connector /
システムコネクター
SYSTEM CONNECTOR ................................................................x 1
■ General /
総合
Power Consumption /
消費電力
.................................................................................................. 30 W
Standby Power Consumption (reference data) /
待機時消費電力（参考値）
U, T, B, G, S, J models ............................................................. 0.3 W
K, A, L, V models ..................................................................... 0.4 W
10
CD-S2100
CD-S2100

Yamaha CD-S2100 Specifications

General

Frequency range	2 - 50000 Hz
Signal-to-Noise Ratio (SNR)	116 dB
Total Harmonic Distortion (THD)	0.002 %
CD-R playback	Yes
Device type	HiFi CD player
Product color	Silver
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	438 mm
Width	435 mm
Height	137 mm
Weight	15600 g
