Yamaha CD-S2100 Service Manual

■ REMOTE CONTROL

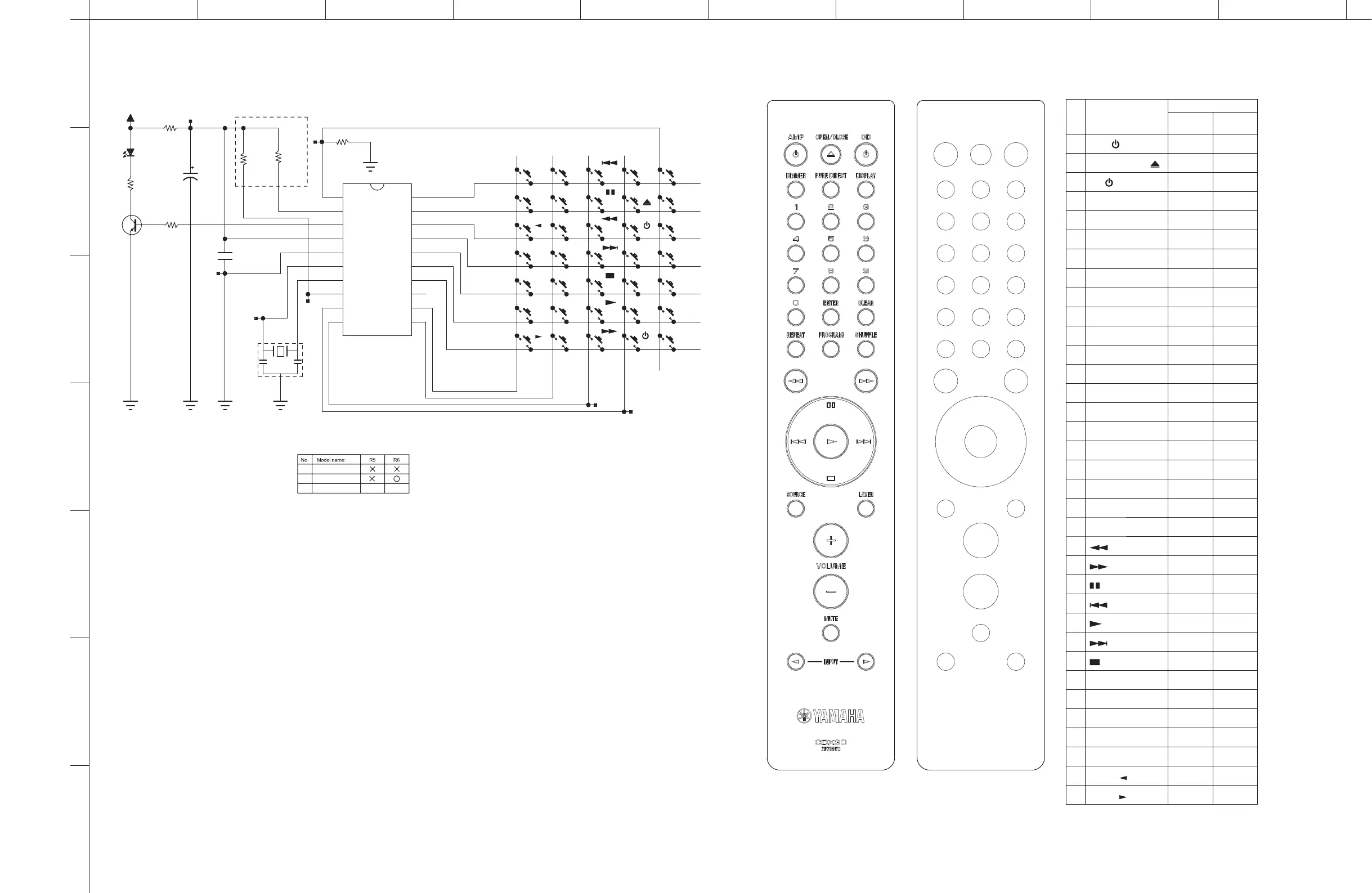

SCHEMATIC DIAGRAM PANEL KEY NO. LAYOUT KEY CODE
1.
Option
2.
RAS30
CDX30
R1
1 ohm 1/4W
Q1
R2
100 ohms
R3
10 ohms
D1
X1
4.0 MHz
C1
47 uF
C2
0.1 uF
VDD
E2
XIN
E0
G0
G1
2
E2
3
E1
19
CARR
20
VDD
1
VSS
4
XIN
5
XOUT
6
E0
7
G0
8
G1
9
G2
10
G3
11
D7
12
D6
13
D5
14
D4
15
D3
16
D2
17
D1
18
D0
U1
M34286G2GP
K29 K13 K25 K4 K19
K32 K8 K24 K2
K34 K1
K30 K9 K6
K31 K7
K33 K11 K26
K12
K10
K14 K18
K20
K28
K27
K22
K5
K17
K16
K21
K35 K23 K15K3
R4
5.1K ohms
R5
22K ohms
R6
22K ohms
VSS
+3V
AMP
DISPLAY
3
8
4
5
6
7
2
1
DIMMERSOURCE
INPUT
INPUT
LAYER
MUTE
VOLUME
+
VOLUME
-
PURE
DIRECT
CD
9
0
ENTER
CLEAR
SHUFFLE
REPEAT
PROGRAM
OPEN/
CLOSE
13
45
2
6
789
10 11 12
13 14 15
16 17 18
19 20 21
34
33
35
29
31
32
30
25 26
24
28
27
22 23
Key
No.
Key Name
Mode-1
Customer
code
Data code
1 AMP
7E 2AD4
2 OPEN/CLOSE
79 01
3 CD 79 60
4 DIMMER 79 54
5 PURE DIRECT 79 6E
6 DISPLAY 79 0A
71 79 11
82 79 12
93 79 13
10 4 79 14
11 5 79 15
12 6 79 16
13 7 79 17
14 8 79 18
15 9 79 19
16 0 79 10
17 ENTER 79 3F
18 CLEAR 79 0D
19 REPEAT 79 08
20 PROGRAM 79 0C
21 SHUFFLE 79 1B
22
(fast rewind) 79 05
23 (fast forward) 79 06
24 (pause) 79 55
25 (skip-) 79 04
26
(play) 79 02
27 (skip+) 79 07
28
(stop) 79 56
29 SOURCE 79 6F
30 LAYER 79 6D
31 VOLUME+ 7D 8D
32 VOLUME- 7D 8E
33 MUTE 7D 94
34 INPUT
7A A3
35 INPUT
7A A2
ABCDEFGH I J
1
2
3
4
5
6
7
CD-S2100
83

Yamaha CD-S2100 Specifications

General

Frequency range	2 - 50000 Hz
Signal-to-Noise Ratio (SNR)	116 dB
Total Harmonic Distortion (THD)	0.002 %
CD-R playback	Yes
Device type	HiFi CD player
Product color	Silver
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	438 mm
Width	435 mm
Height	137 mm
Weight	15600 g
