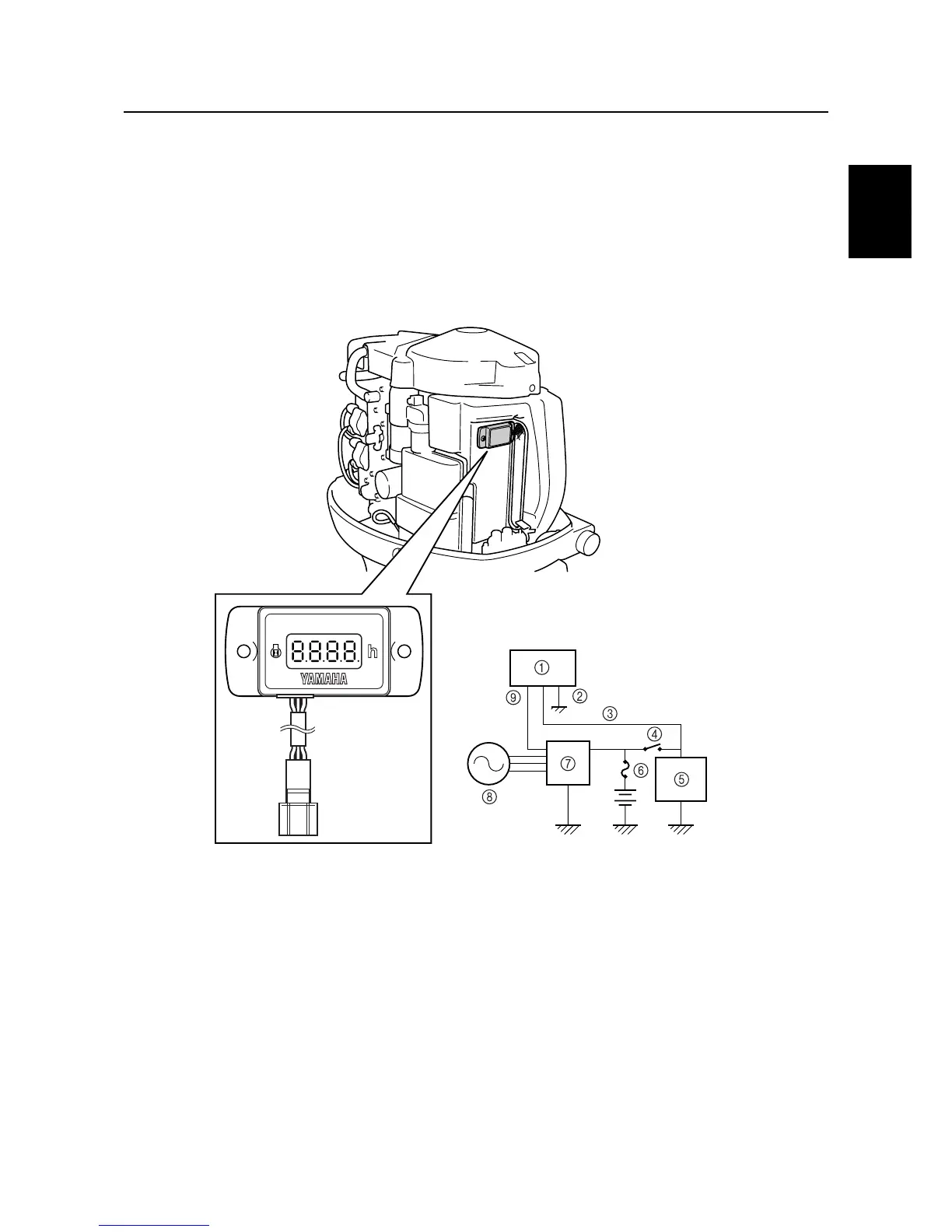

Hour meter
A newly developed hour meter is incorporated on the F100B and F100C. The hour meter makes it
possible to check the hours of operation of the outboard motor, which can be used to keep track of
periodic checks and adjustments.
When the engine switch is turned to ON, all LED on the display will illuminate for two seconds, and
then the hours of operation will be displayed.
A signal from the Rectifier Regulator, via the green and white (G/W) lead, is sent to the hour meter
as the hours of operation accumulation.
The hours of operation cannot be deleted.
1
Hour meter
2
Grand (B)
3
Battery (Y)
4
Engine start switch
5
Starter motor
6
Fuse
7
Rectifier Regulator
8
Flywheel magnet
9
Signal (G/W)
