Basic components
20
clamp bracket.
CAUTION:
ECM00660

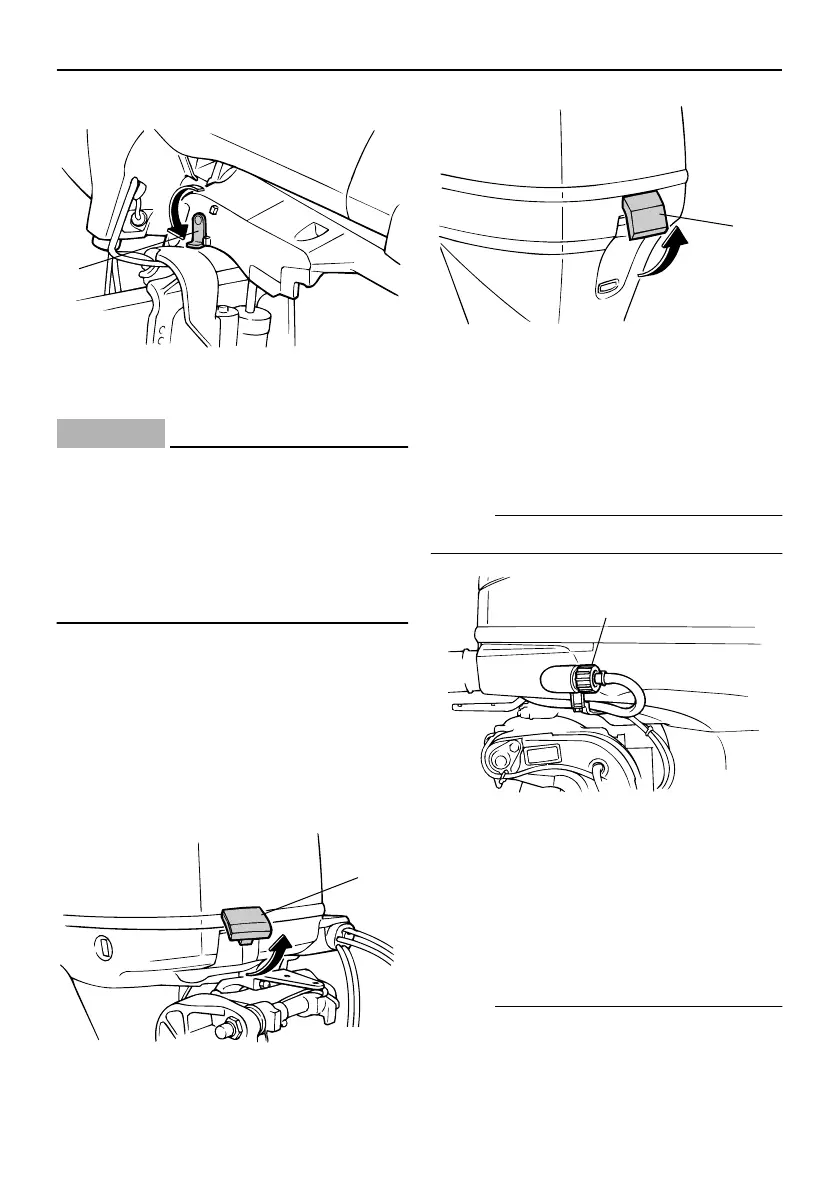

Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt sup-
port and fall. If the motor cannot be trail-
ered in the normal running position, use
an additional support device to secure it
in the tilt position.
EMU26382
Top cowling lock lever (pull up type)
To remove the engine top cowling, pull up
the lock lever(s) and lift off the cowling.
When installing the cowling, check to be sure
it fits properly in the rubber seal. Then lock
the cowling by moving the lever(s) down-
ward.
EMU26460
Flushing device
This device is used to clean the cooling wa-
ter passages of the motor using a garden
hose and tap water.
NOTE:
For details on usage, see page 47.
EMU31751
Warning indicator
If the engine develops a condition which is
cause for warning, the indicator lights up. For
details on how to read the warning indicator,
see page 25.
NOTE:
Multifunction tiller handle: The warning indi-
cator may faintly light momentarily while us-
ing the power trim and tilt switch / power tilt
1. Tilt support lever
1. Top cowling lock lever(s)
ZMU04224
1
ZMU04225
1
1. Top cowling lock lever(s)
1. Flushing device
ZMU04226
1
1
ZMU04256
