Maintenance
52
EMU34450
Maintenance chart 2
EMU28910
NO
TE:
When using lead or high-sulfur gasoline, inspecting valve clearance may be required more
frequently than every 500 hours.
W
ater inlet
Inspection
Main switch/stop
switch/chok
e switch
Inspection or replace-
ment as necessary
Wire harness connec-
tions/Wire coupler con-
nections
Inspection or replace-
ment as necessary
(Y
amaha) Meter/gauge
Inspection
Item
Actions
Every
1000 hours
Guide exhaust/e
xhaust
manifold
Inspection or replace-
ment as necessary
Timing belt
Replacement
Item
Actions
Initial
Every
20 hours
(3
months)
100
hours (1
years)
300
hours (3
years)
500
hours (5
years)
56
58
Table of Contents
Table of Contents
4
General Information
6
Identification Numbers Record
6
Outboard Motor Serial Number
6
Key Number
6
EC Label
6
Read Manuals and Labels
8
Warning Labels
8
Safety Information
11
Rotating Parts
11
Hot Parts
11
Electric Shock
11
Power Trim and Tilt
11
Engine Shut-Off Cord
11
Gasoline
11
Gasoline Exposure and Spills
11
Carbon Monoxide
12
Modifications
12
Boating Safety
12
Alcohol and Drugs
12
Personal Flotation Devices
12
People in the Water
12
Passengers
12
Overloading
12
Avoid Collisions
12
Weather
13
Passenger Training
13
Boating Safety Publications
13
Laws and Regulations
13
Basic Requirements
14
Fueling Instructions
14
Gasoline
14
Engine Oil
14
Installation Requirements
15
Boat Horsepower Rating
15
Mounting Motor
15
Remote Control Requirements
15
Battery Requirement
15
Propeller Selection
16
Start-In-Gear Protection
17
Basic Components
18
Main Components
18
Remote Control
18
Remote Control Lever
19
Neutral Interlock Trigger
19
Neutral Throttle Lever
19
Tiller Handle
20
Gear Shift Lever
20
Throttle Grip
20
Throttle Indicator
20
Throttle Friction Adjuster
21
Engine Shut-Off Switch
21
Engine Stop Button
22
Main Switch
22
Steering Friction Adjuster
22
Power Trim and Tilt Switch on Remote Control or Tiller Handle
23
Power Trim and Tilt Switch on Bottom Engine Cowling
23
Trim Tab with Anode
24
Tilt Support Lever for Power Trim and Tilt Model
24

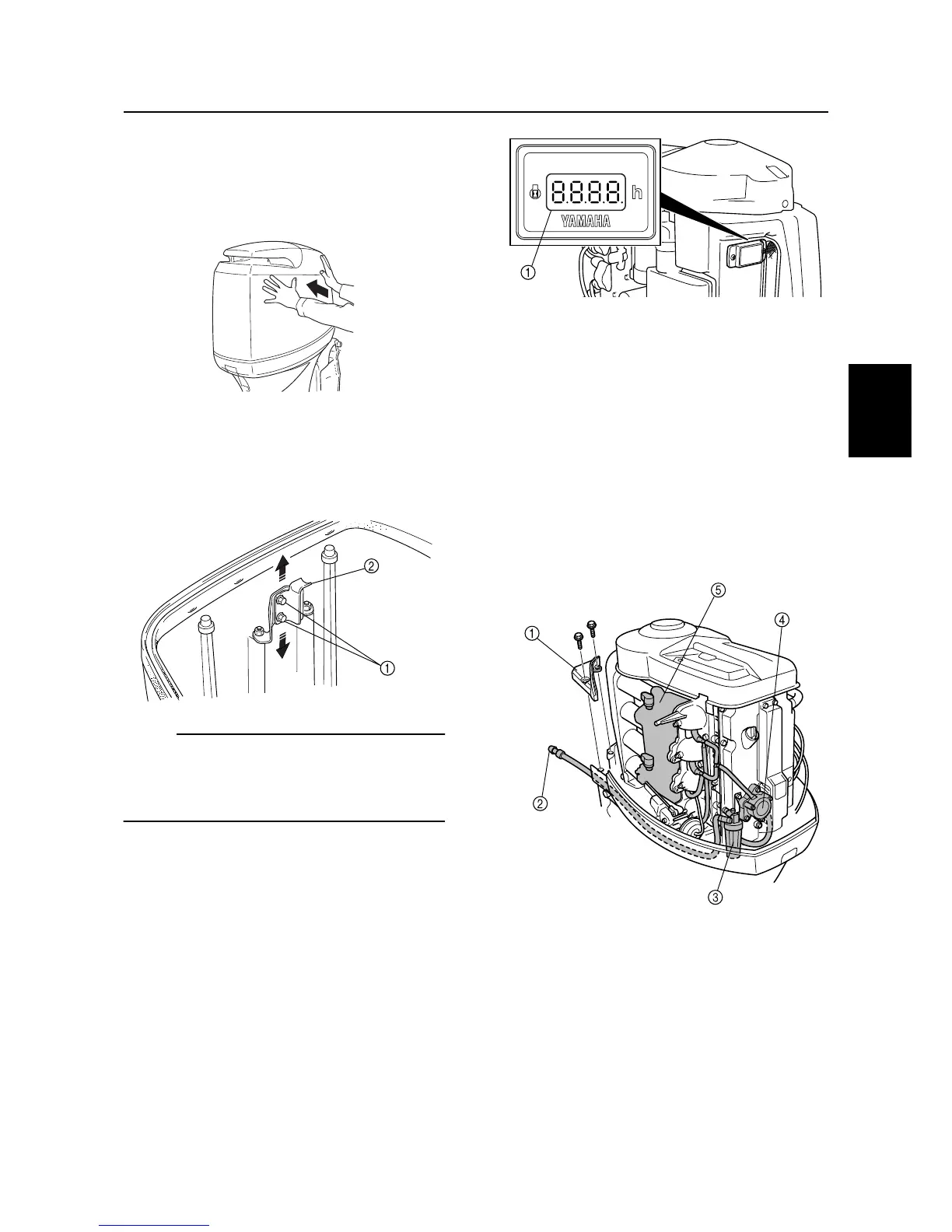

Top Cowling Lock Lever (Pull up Type)
25
Flushing Device
25
Warning Indicator
25
Digital Tachometer
26
Low Oil Pressure-Warning Indicator
26
Overheat-Warning Indicator (Digital Type)
26
Speedometer (Digital Type)
27
Trim Meter (Digital Type)
27
Hour Meter
28
Hour Meter (Digital Type)
28
Trip Meter
28
Clock
29
Fuel Gauge
29
Fuel Warning Indicator
29
Low Battery Voltage-Warning Indicator
30
Warning System
30
Overheat Warning
30
Low Oil Pressure Warning
31
Operation
32
Installation
32
Mounting the Outboard Motor
32
Breaking in Engine
33
Procedure for 4-Stroke Models
33
Pre-Operation Checks
34
Fuel
34
Controls
34
Stop Switches
34
Engine
34
Checking the Engine Oil Level
34
Filling Fuel
35
Operating Engine
35
Feeding Fuel
35
Starting Engine
35
Warming up Engine
38
Manual Start and Electric Start Models
38
Shifting
39
Stopping Boat
40
Stopping Engine
40
Procedure
40
Trimming Outboard Motor
41
Adjusting Trim Angle (Power Trim and Tilt)
41
Adjusting Boat Trim
42
Tilting up and down
43
Procedure for Tilting up (Power Trim and Tilt Models)
44
Procedure for Tilting down (Power Trim and Tilt Models)
45
Cruising in Shallow Water
46
Power Trim and Tilt Models
46
Cruising in Other Conditions
47
Maintenance
48
Specifications
48
Transporting and Storing Outboard Motor
49
Storing Outboard Motor
49
Procedure
50
Lubrication
51
Battery Care
51
Flushing Power Unit
52
Cleaning the Outboard Motor
53
Checking Painted Surface of Motor
53
Periodic Maintenance
53
Replacement Parts
53
Severe Operating Conditions
53
Maintenance Chart 1
55
Maintenance Chart 2
57
Greasing
58
Cleaning and Adjusting Spark Plug
58
Checking Fuel System
59
Inspecting Fuel Filter
60
Cleaning Fuel Filter
60
Inspecting Idling Speed
61
Changing Engine Oil
61
Checking Wiring and Connectors
63
Exhaust Leakage
63
Water Leakage
63
Engine Oil Leakage
63
Checking Power Trim and Tilt System
63
Checking Propeller
64
Removing Propeller
65
Installing Propeller
66
Changing Gear Oil
66
Inspecting and Replacing Anode(S)
67
Checking Battery (for Electric Start Models)
68
Connecting the Battery
68
Disconnecting the Battery
69
Checking Top Cowling
69
Coating the Boat Bottom
69
Trouble Recovery
71
Troubleshooting
71
Temporary Action in Emergency
74
Impact Damage
74
Replacing Fuse
74
Power Trim and Tilt will Not Operate
75
Starter will Not Operate
75
Emergency Starting Engine
76
Engine Fails to Operate
77
Ignition System Malfunction
77
Treatment of Submerged Motor
78
Procedure
78
