2
E
EMU00037

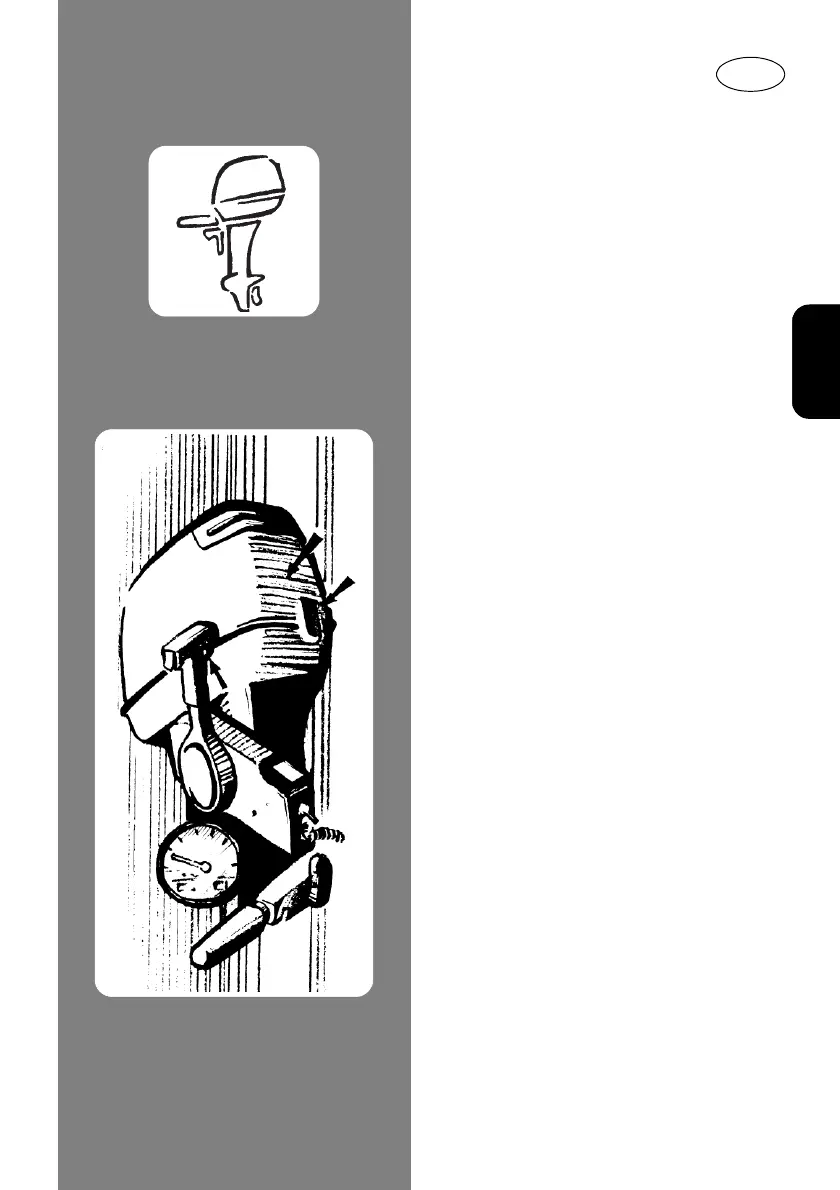

Chapter 2
BASIC COMPONENTS
MAIN COMPONENTS
................................2-1
OPERATIONS OF CONTROLS AND
OTHER FUNCTIONS
..................................2-3
Fuel tank...................................................2-3
Choke knob ..............................................2-3
Recoil starter handle
(if equipped) .............................................2-4
Starter button (for tiller control model).....2-4
Multifunction tiller handle .........................2-4
Remote control.........................................2-8
Steering friction adjusting lever..............2-13
Trim angle adjusting rod ........................2-13
Power trim/tilt switch ..............................2-14
Tilt lock mechanism
(for manual tilt model) ............................2-14
Tilt support knob.....................................2-15
Tilt support bar .......................................2-15
Power tilt unit..........................................2-15
Top cowling lock lever............................2-16
Flushing device ......................................2-16
Warning indicator(s)...............................2-16
WARNING SYSTEM
.................................2-17
Low oil pressure warning.......................2-17
