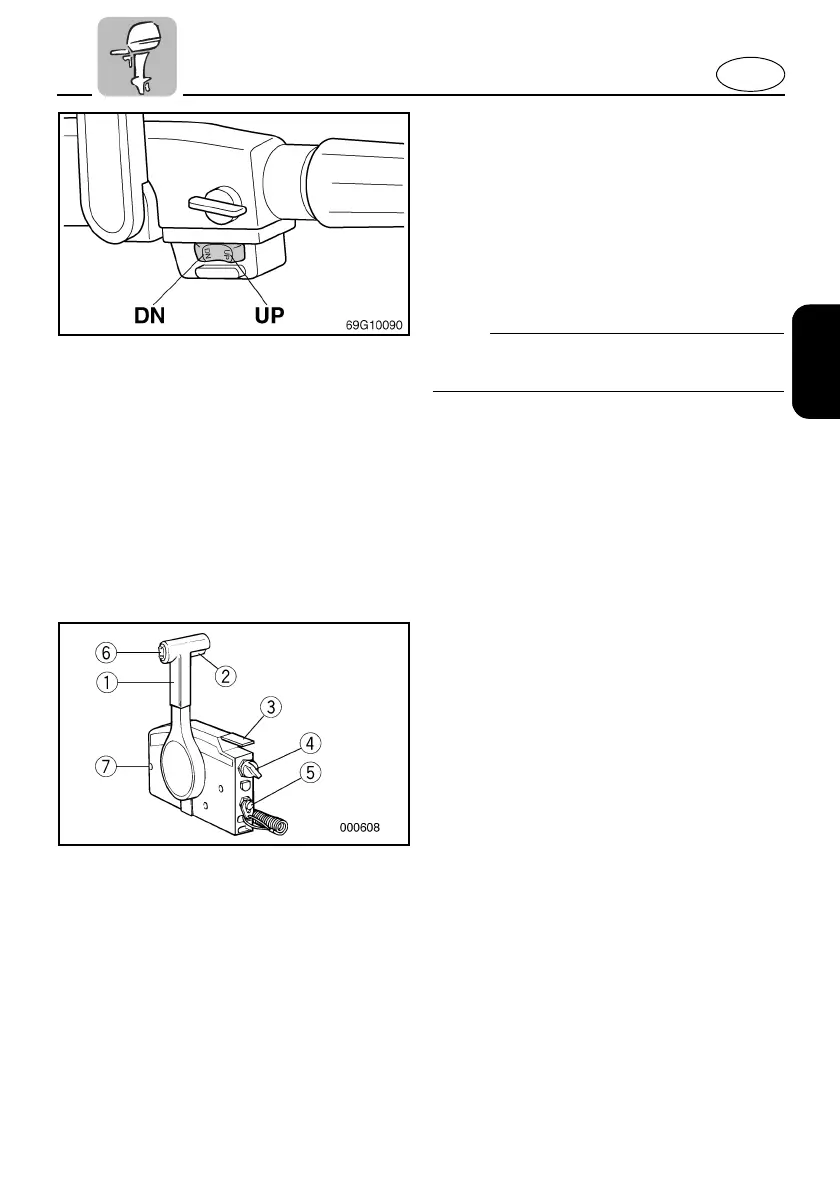

Power Tilt Switch
The power tilt adjusts the motor angle in
relation to the transom. The power tilt switch
is located on the tiller handle. Pushing the
switch “UP” tilts the motor up. Pressing the
switch “DN” tilts the motor down. When the
switch button is released, the motor will stop
in its current position.
NOTE:
@
Refer to the section “TILTING UP/DOWN”
for instructions on usage.
@
EMU00094
REMOTE CONTROL
Both the shifter and the throttle are actuated
by the remote control lever. In addition, this
remote control also has the electrical
switches.
1
Remote control lever
2
Neutral interlock trigger
3
Neutral throttle lever
4
Main switch / Choke switch
5
Engine stop lanyard switch
6
Power tilt switch
7
Throttle friction adjusting screw
